Дънна платка GB X570S AERO G /AM4 X570S AERO G 1.0
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| Слотове за памет | 4 |
| Слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors; support PCIe 4.0 x16 mode; AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors; support PCIe 3.0 x16 mode; AMD Ryzen™ 3000 G-Series/2000 G-Series Processors; support PCIe 3.0 x8 mode; 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMD Ryzen™ 5000 Series/3000 Series Processors; support PCIe 4.0 x8 mode; AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors; support PCIe 3.0 x8 mode; AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors do not support this slot For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.; 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0 /3.0 x4 mode |
| Видео | Integrated Graphics Processor: 1 x USB Type-C® port, supporting USB Type-C® and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz; Support for drawing tablets and 20V@3A of power delivery.; Support for DisplayPort 1.4 version and HDCP 2.3; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Maximum shared memory of 16 GB |
| Дисков интерфейс | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000-Series/3000 Series Processors; support SATA and PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors; support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0 /3.0 x4/x2 SSDs For AMD Ryzen™ 5000 Series/3000 Series Processors only.; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0 /3.0 x4/x2 SSDs; For AMD Ryzen™ 5000 Series/3000 Series Processors only. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280/22110 SSDs: Supporting SATA and PCIe 4.0 /3.0 x4/x2 SSDs; For AMD Ryzen™ 5000 Series/3000 Series Processors only.; 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAI |
| LAN порт | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Звук | Realtek® ALC1220-VB Audio CODEC; The back panel line out jack supports DSD audio.; Support for DTS:X® Ultra; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |

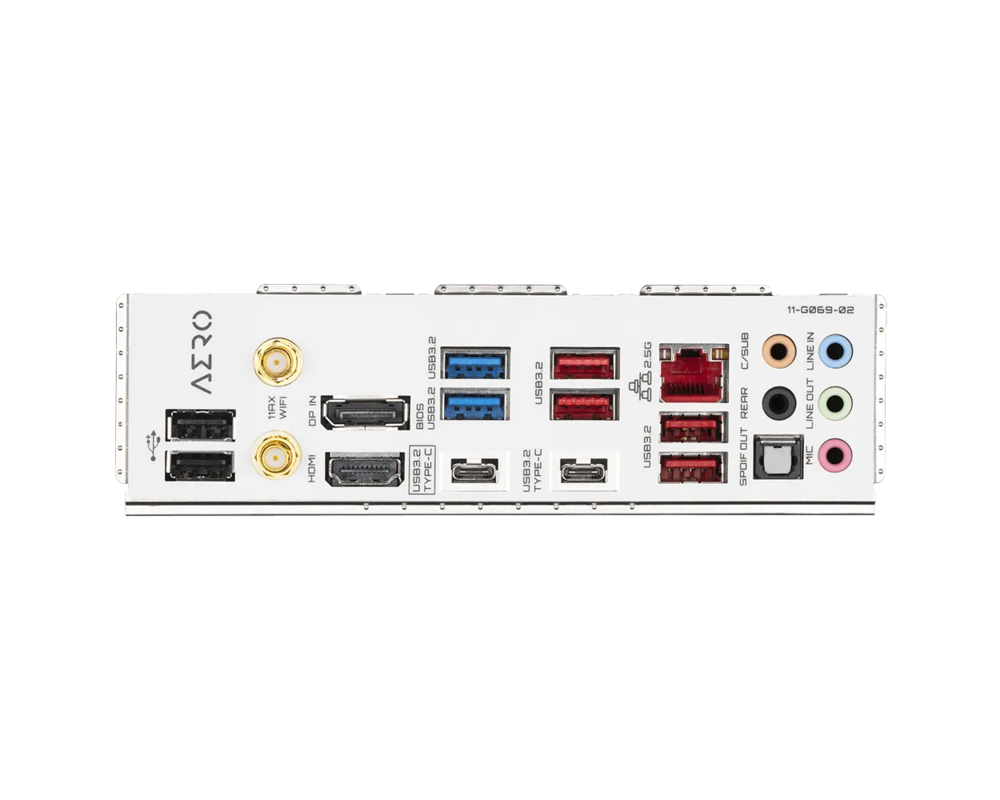

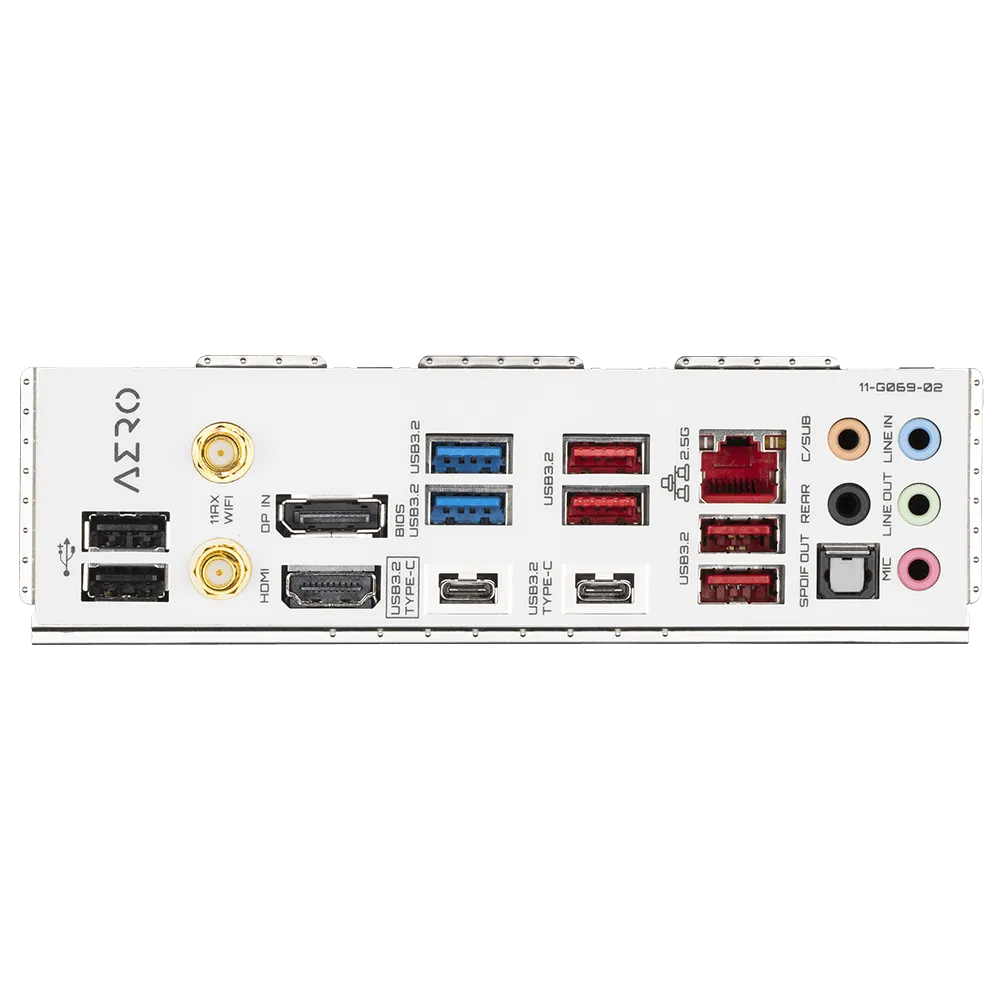

| Портове | 2 x USB 2.0/1.1 ports; 2 x SMA antenna connectors (2T2R) 1 x HDMI port; 1 x DisplayPort In port; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 4 x USB 3.2 Gen 2 Type-A ports (red); 2 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 2 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 4 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Thunderbolt™ add-in card connector; 1 x serial port header; 1 x Clear CMOS jumper; 2 x temperature sensor headers; 1 x Q-Flash Plus button |
| Други характеристики | Intel® Wi-Fi 6 AX200 (For PCB rev. 1.0); WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1); WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate |
| Гаранция | 36 месеца |
| Код на продукта | X570S AERO G 1.0 |
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
Виж повече
Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
