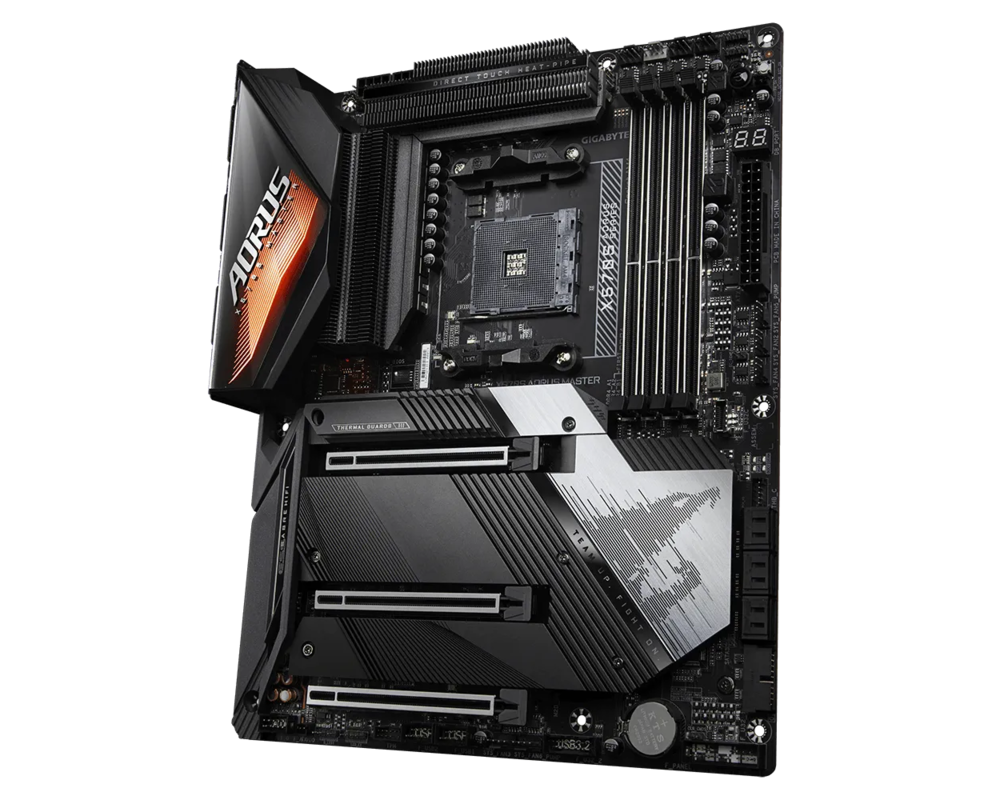

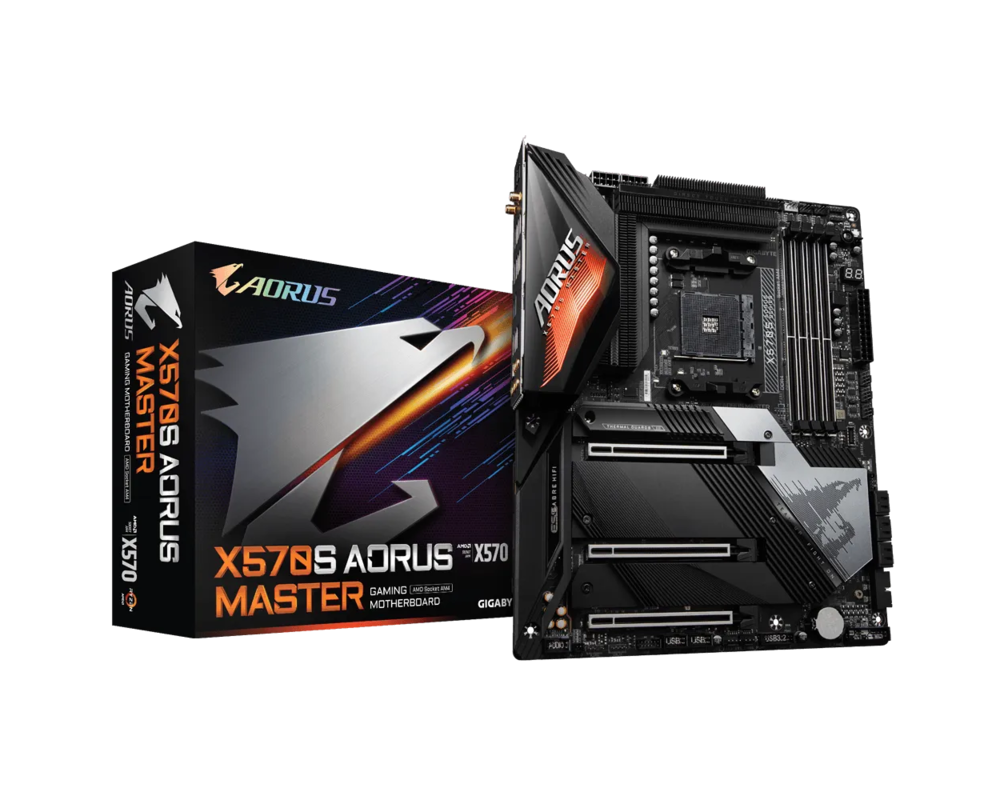

Дънна платка GB X570S AORUS MASTER X570S AORUS MASTER 1.0
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Памет | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*; * ECC memory (ECC mode) support varies by CPU; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| Слотове за памет | 4 |
| Слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x16 mode; AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x16 mode; AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode; 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: AMDRyzen™ 5000 Series Processors/AMDRyzen™ 3000 Series Processors support PCIe 4.0 x8 mode; AMDRyzen™ 4000G-SeriesProcessors/AMDRyzen™ 2000 Series Processors support PCIe 3.0 x8 mode; AMDRyzen™ 3000G-SeriesProcessors/AMDRyzen™ 2000 G-Series Processors do not support this slot; For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 4.0 |
| Дисков интерфейс | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting PCIe 4.0 /3.0 x4/x2 SSDs; For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.; 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs: Supporting SATA and PCIe 4.0 /3.0 x4/x2 SSDs; For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.; 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| LAN порт | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Звук | Realtek® ALC1220-VB audio CODEC; The front panel line out jack supports DSD audio.; ESS SABRE9118 DAC chip; Support for DTS:X® Ultra; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |

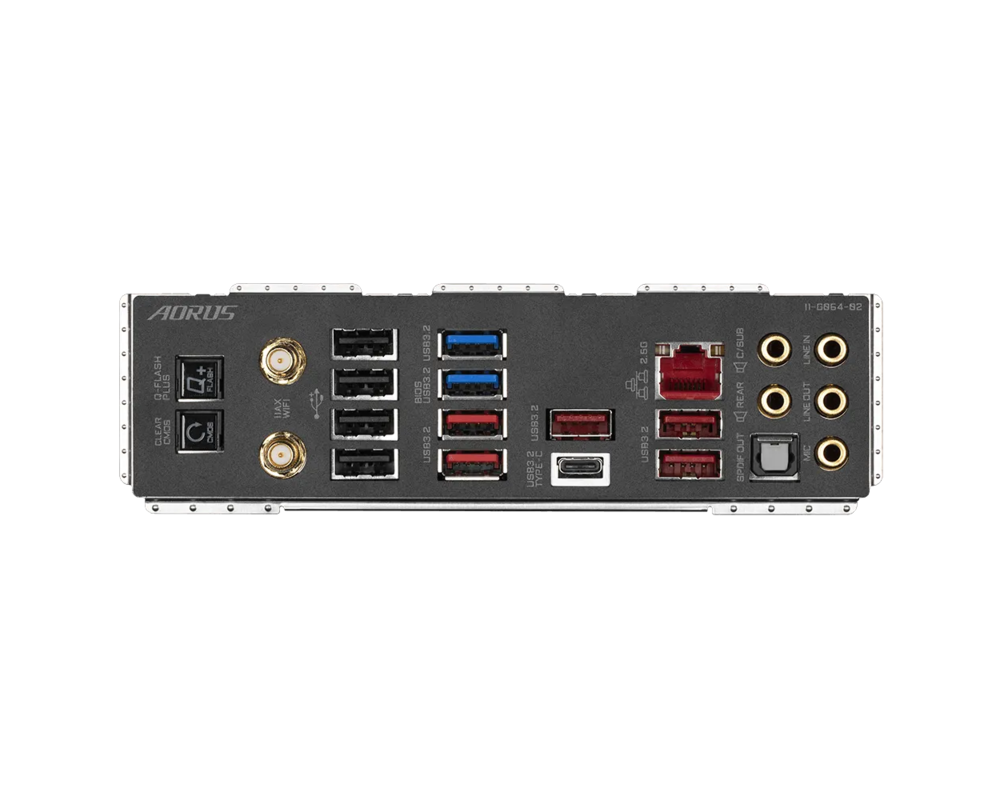

| Портове | 1 x Q-Flash Plus button; 1 x Clear CMOS button; 2 x SMA antenna connectors (2T2R); 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 5 x USB 3.2 Gen 2 Type-A ports (red); 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks |
| Конектори | 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 4 x system fan headers; 4 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 4 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x noise detection header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Thunderbolt™ add-in card connector; 2 x temperature sensor headers; 1 x power button; 1 x reset button; 1 x Clear CMOS jumper; Voltage Measurement Points |
| Други характеристики | Intel® Wi-Fi 6E AX210; WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Гаранция | 36 месеца |
| Код на продукта | X570S AORUS MASTER 1.0 |
