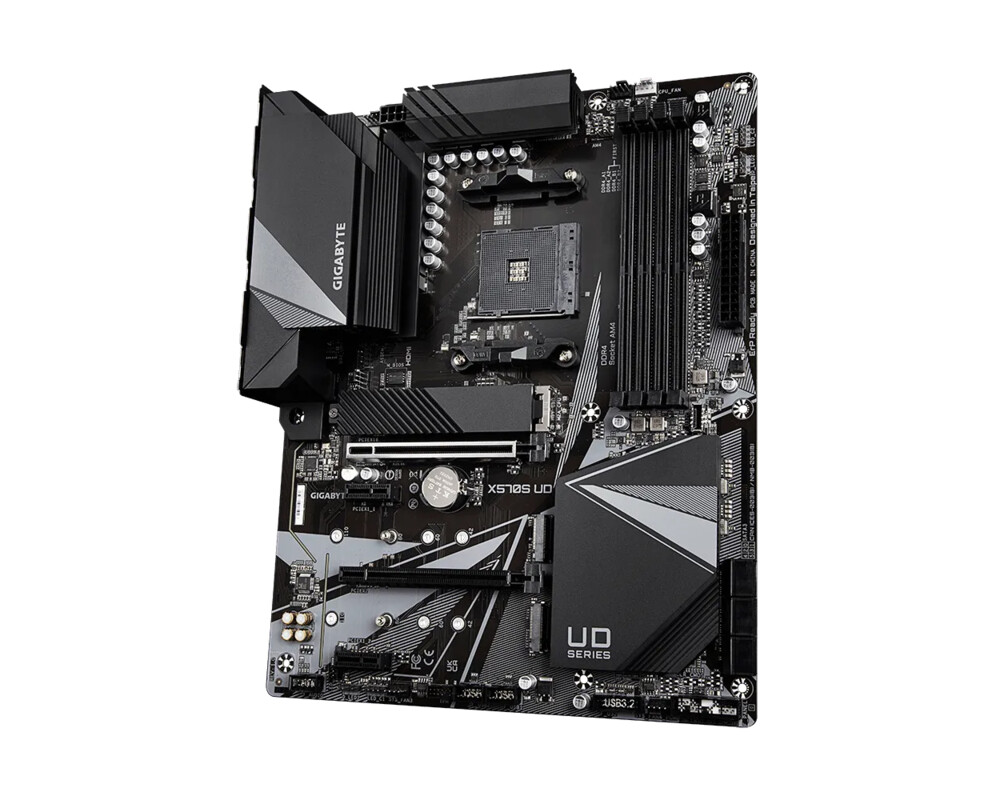

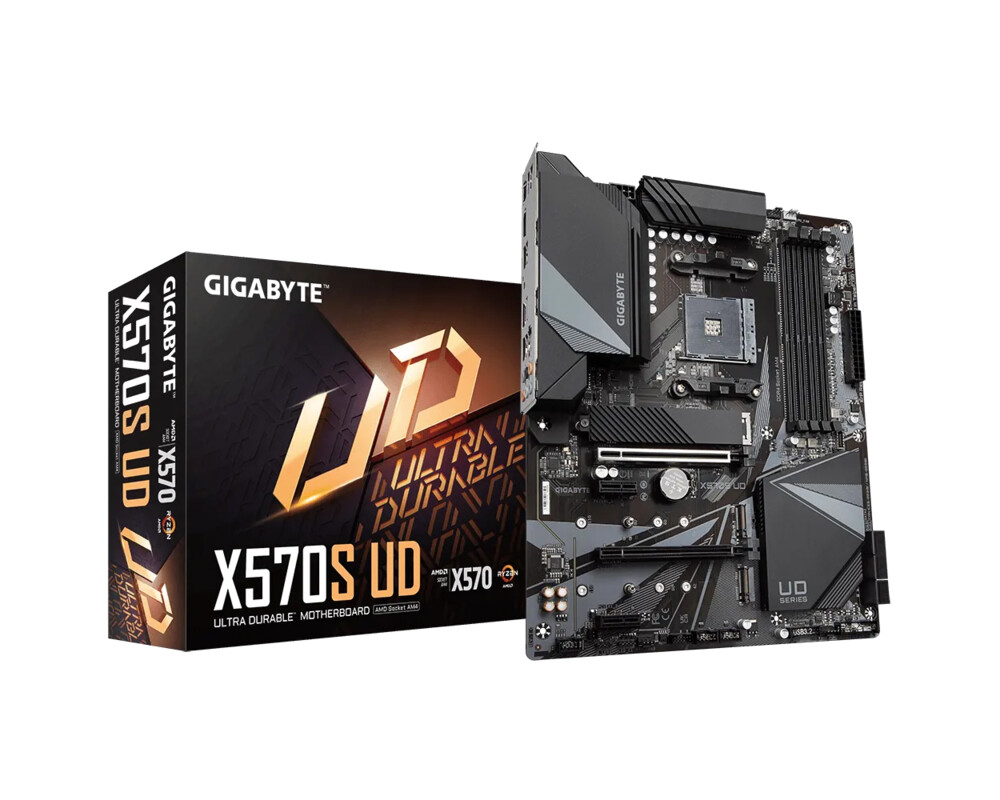

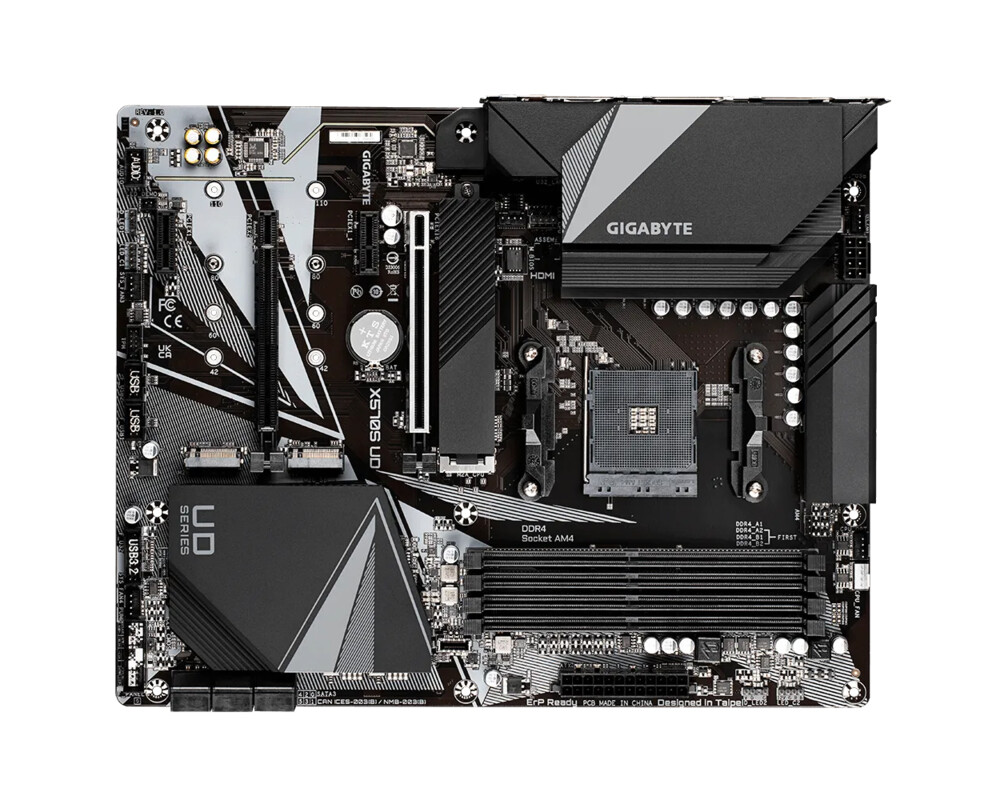

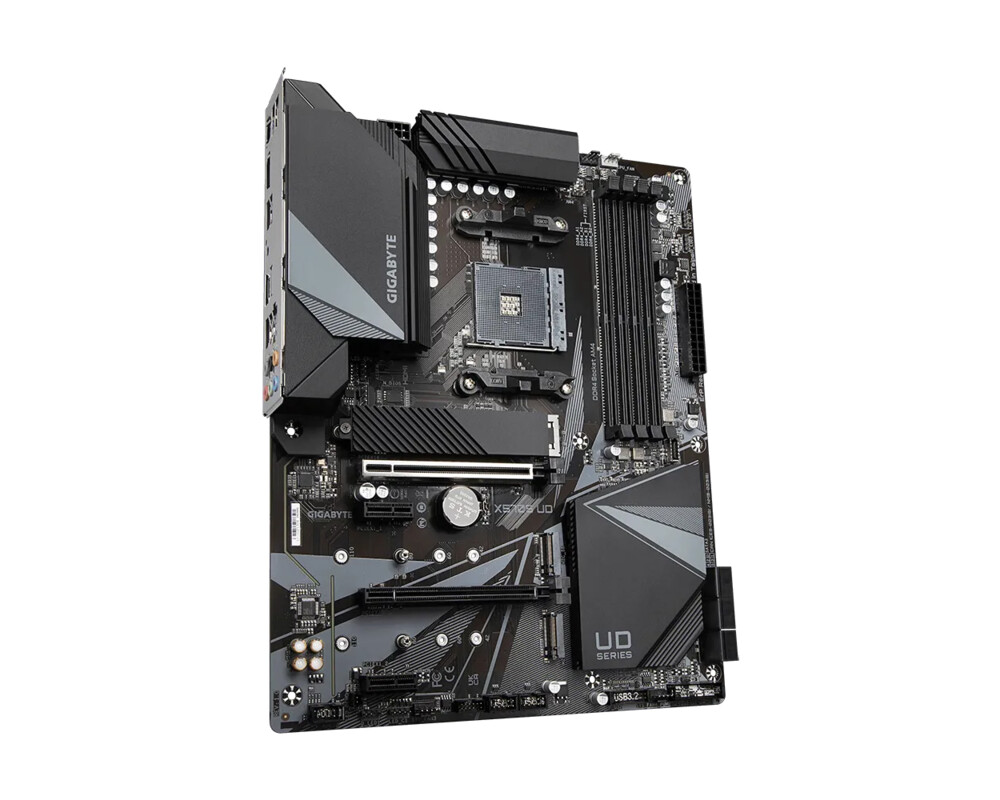

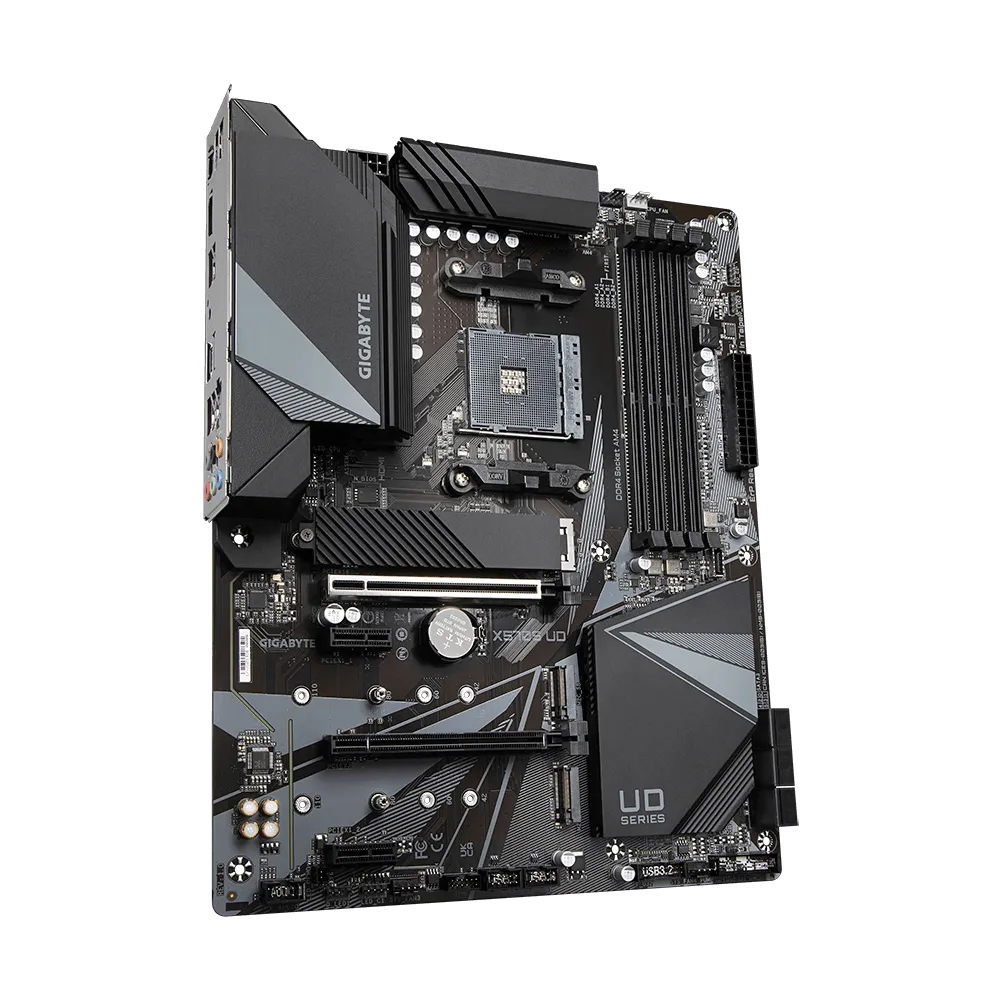

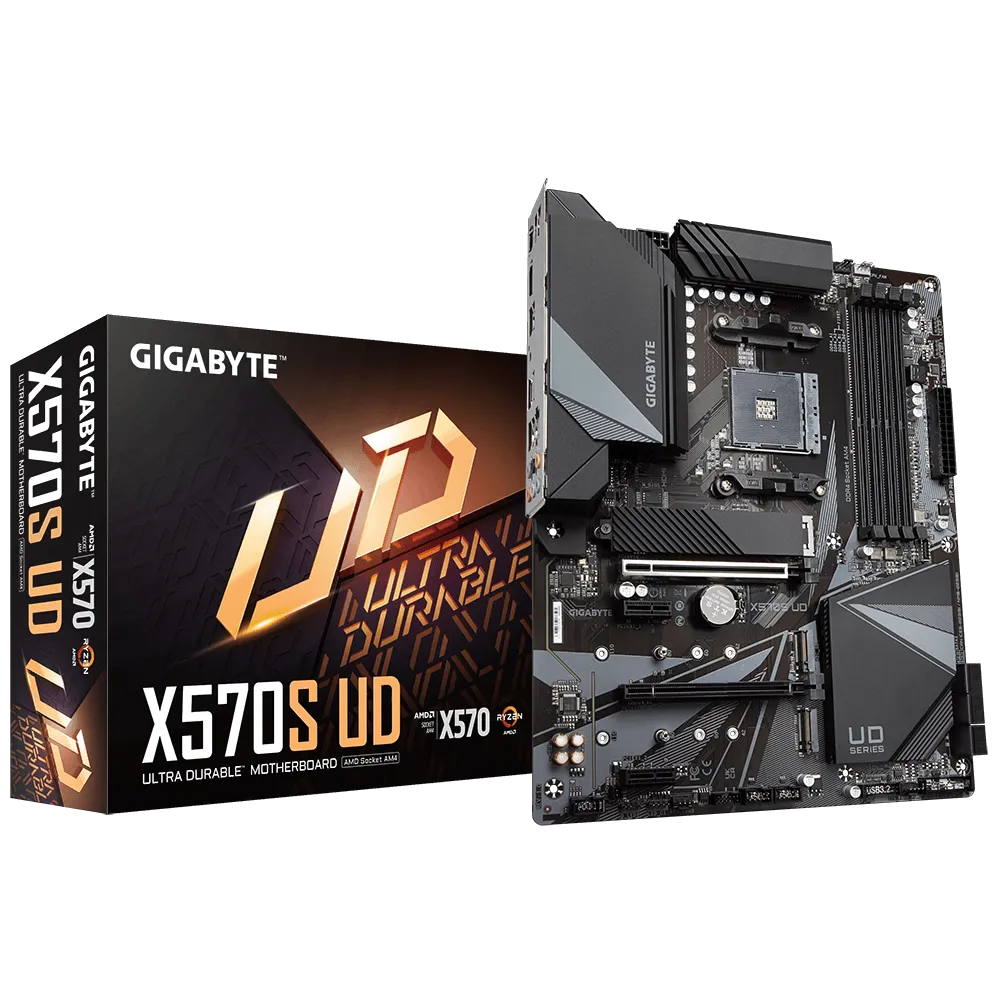

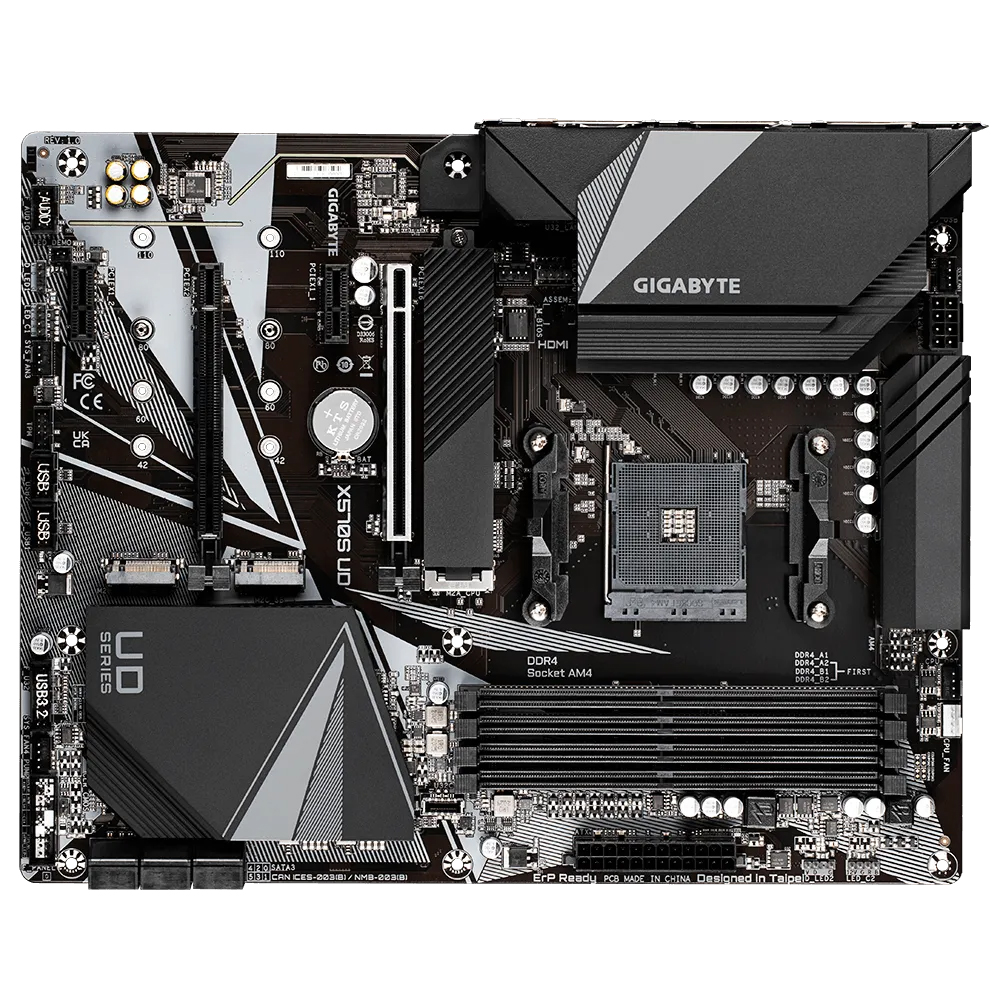

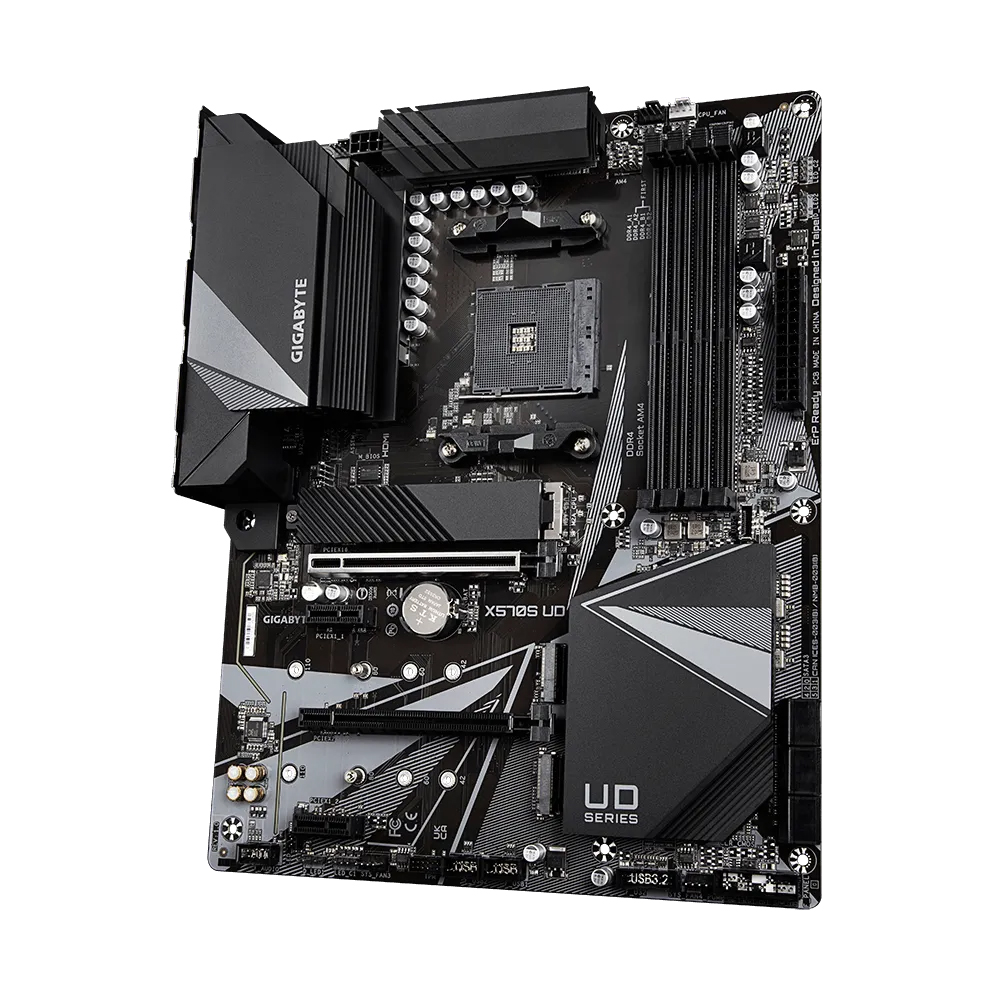

Дънна платка GB X570S UD X570S UD 1.0
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Памет | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*; * ECC memory (ECC mode) support varies by CPU; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| Слотове за памет | 4 |
| Слотове | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode; AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode; AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode; For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 x2 mode; The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The SATA3 4, 5 connectors will become unavailable when a device is installed in the PCIEX2 slot.; 2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2), integrated in the Chipset: Supporting PCIe 4.0(Note)/3.0 |
| Видео | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Maximum shared memory of 16 GB |
| Дисков интерфейс | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 Series Processors/AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs; 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
| LAN порт | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Звук | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |

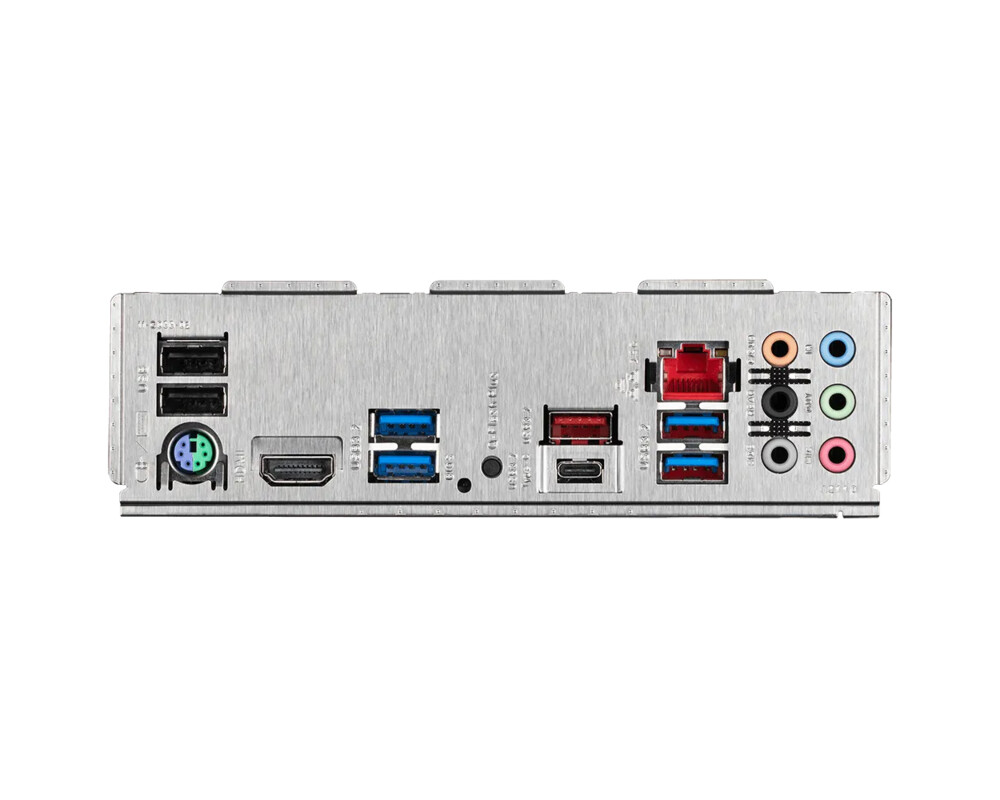

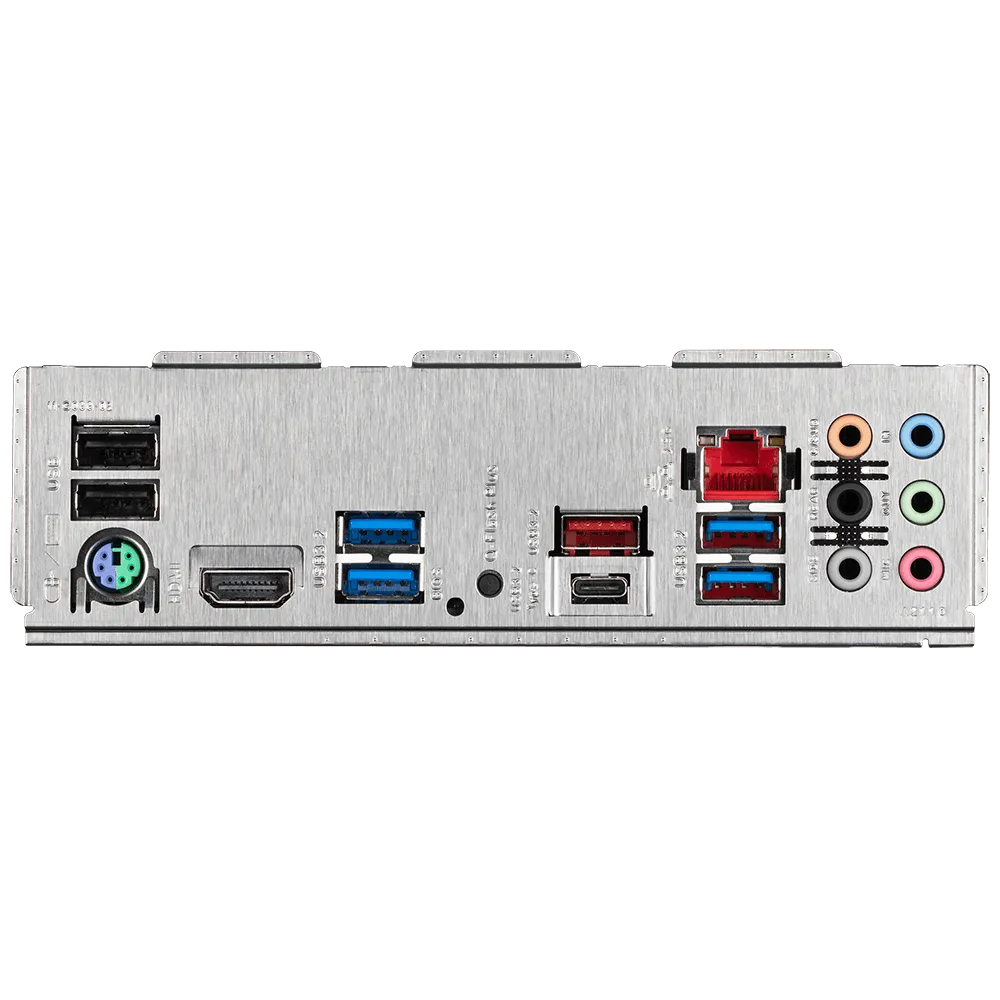

| Портове | 1 x PS/2 keyboard/mouse port; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 1 x Q-Flash Plus button; 1 x RJ-45 port; 6 x audio jacks |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 3 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper |
| Гаранция | 36 месеца |
| Код на продукта | X570S UD 1.0 |
