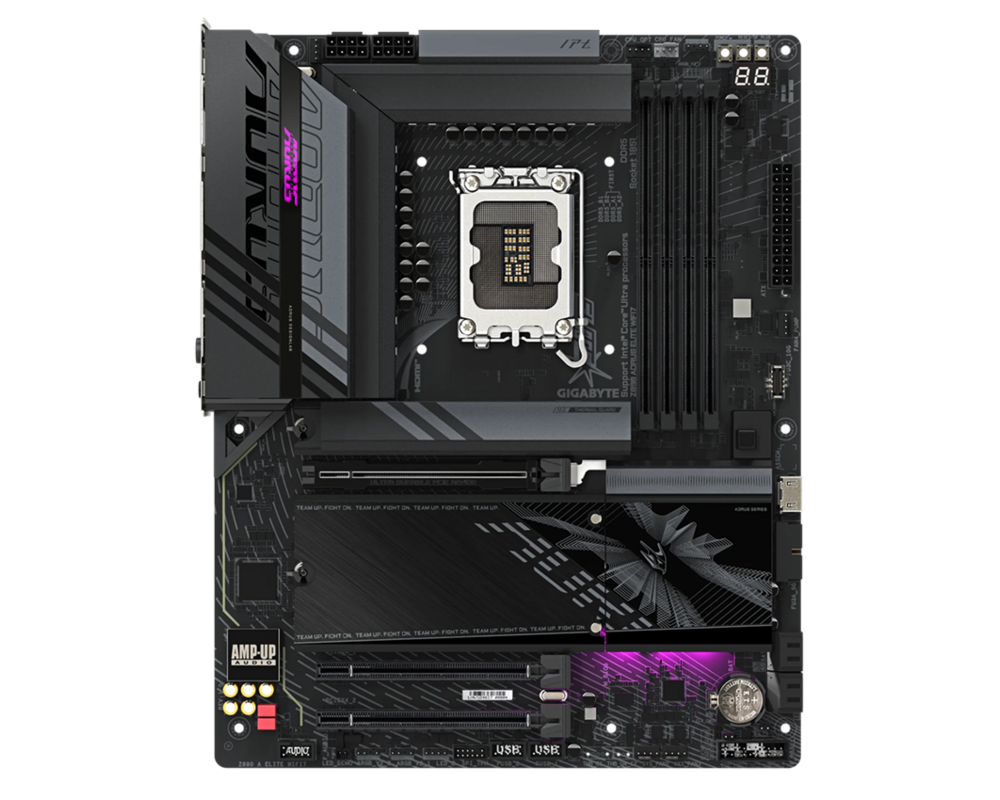

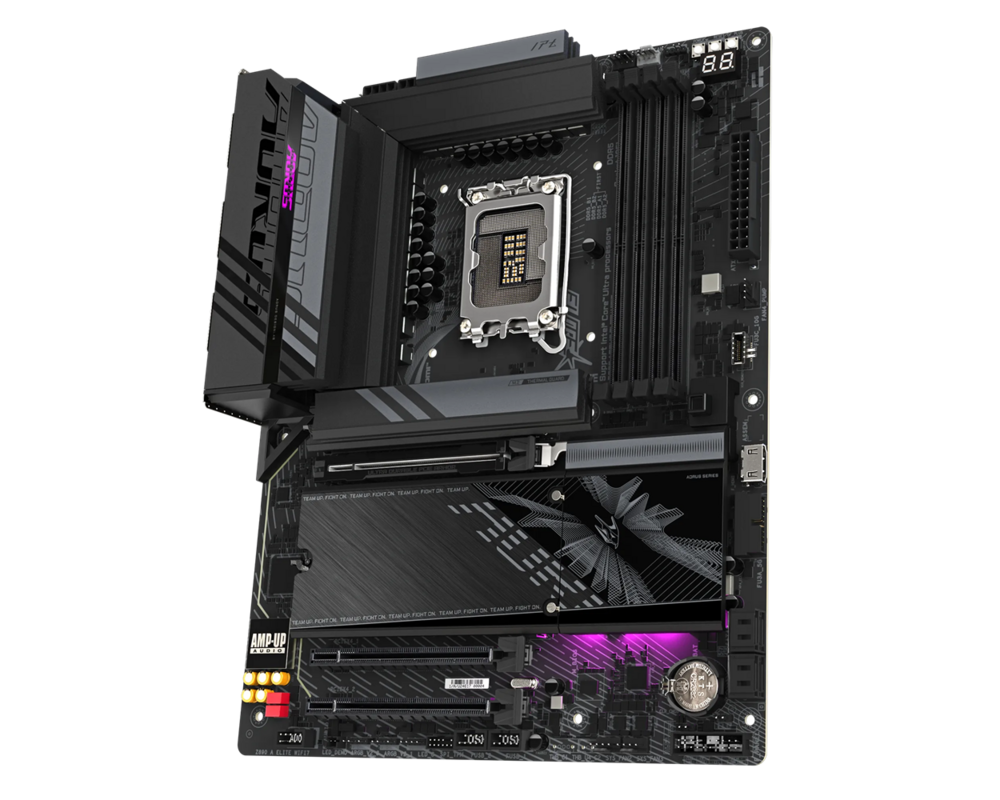

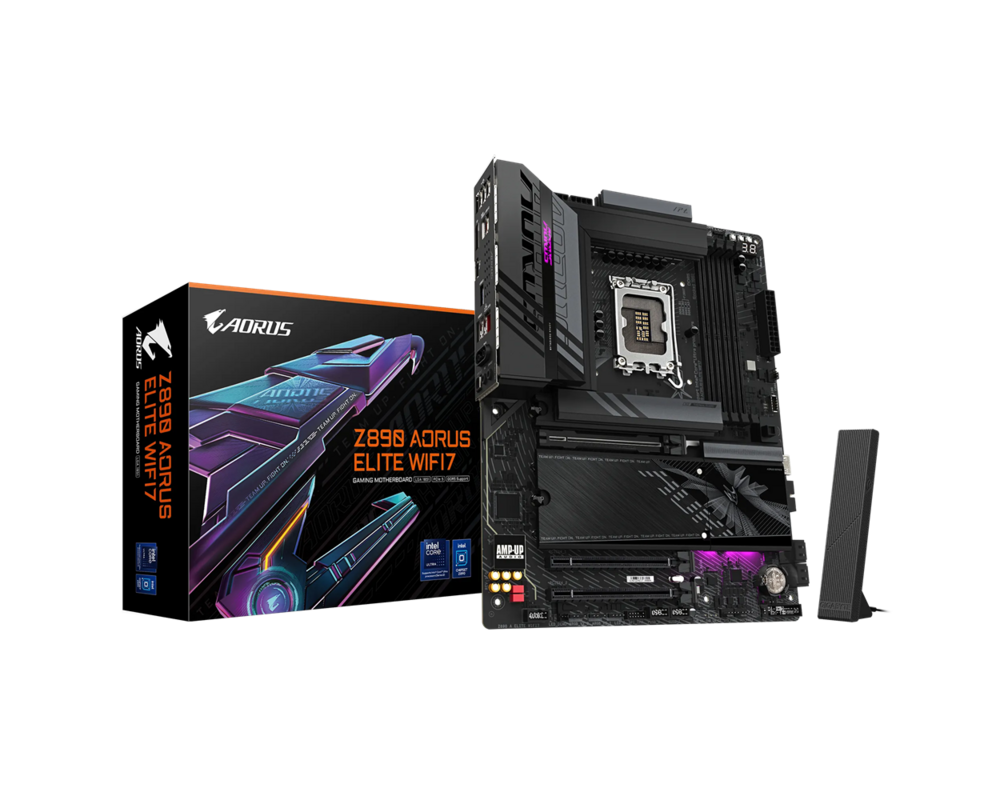

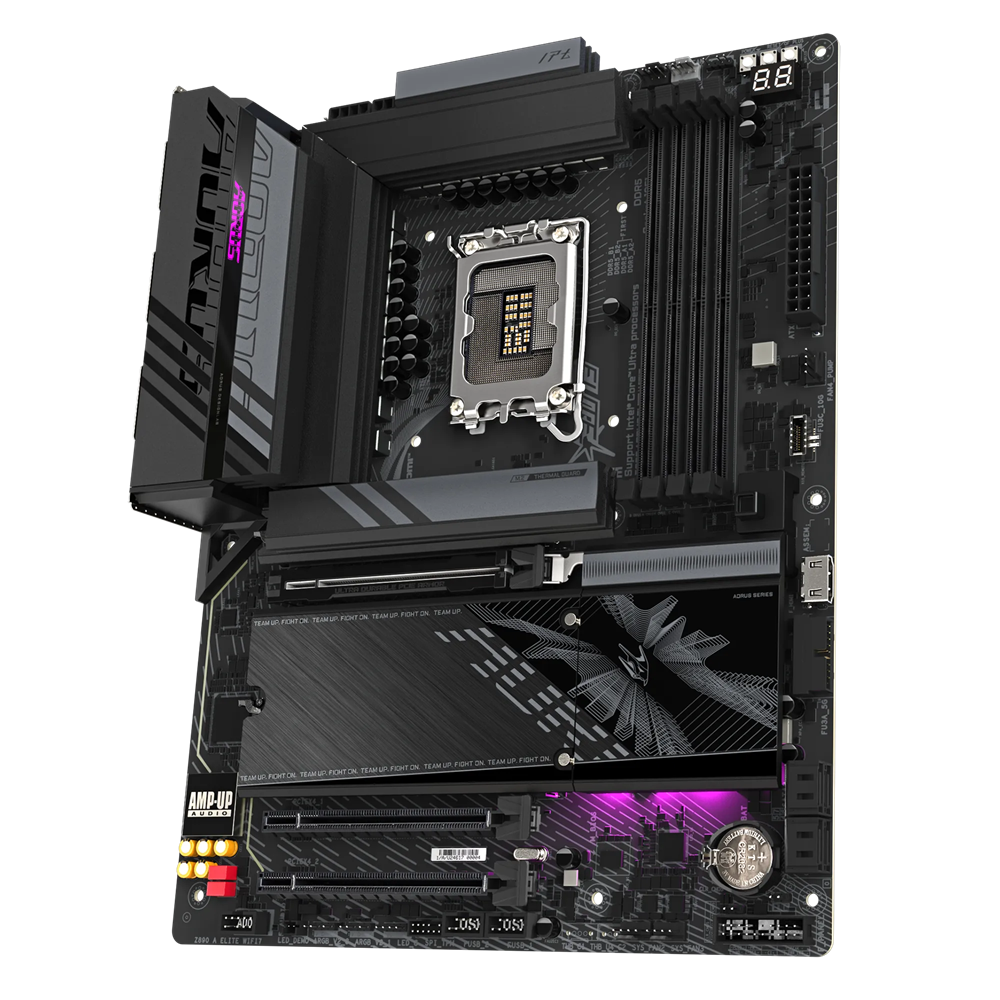

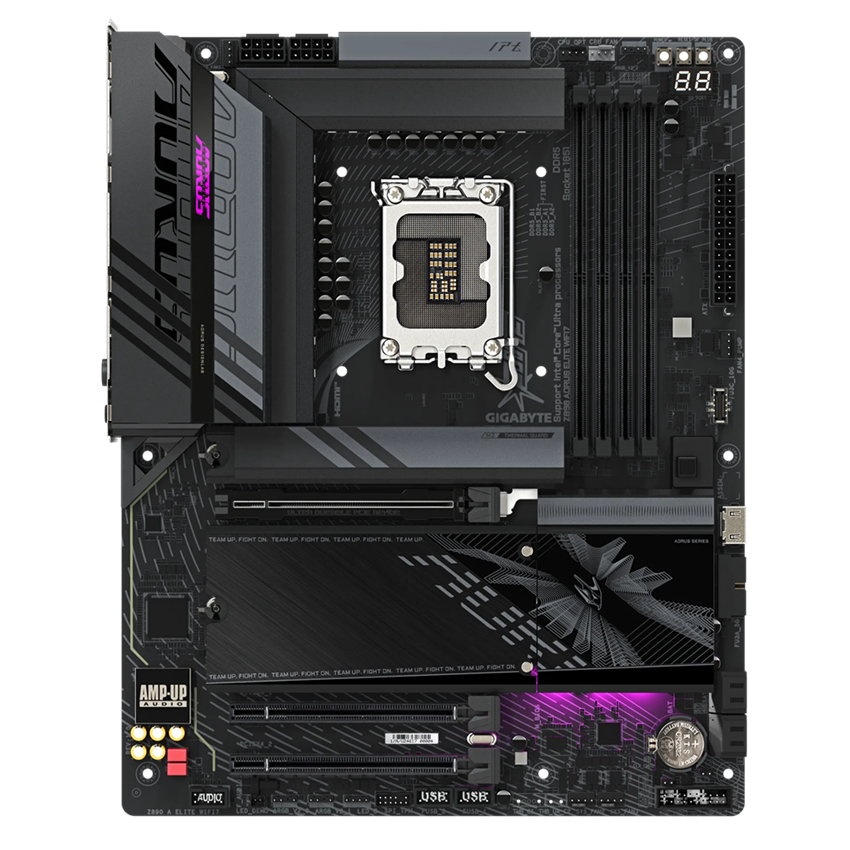

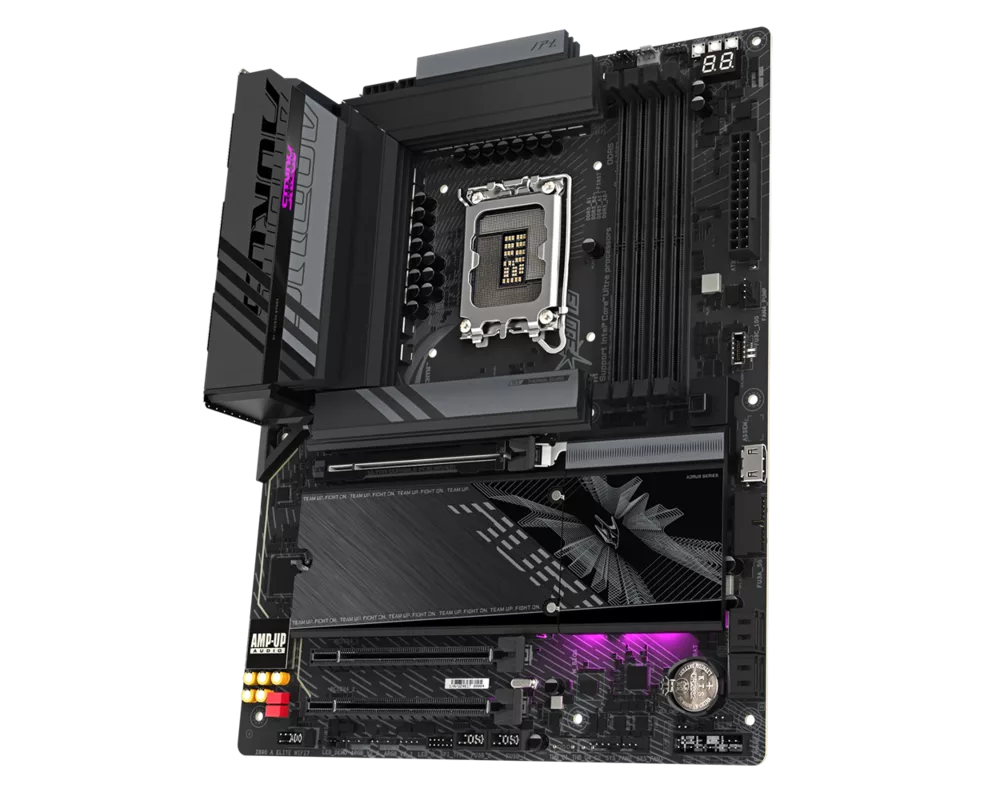

Дънна платка GB Z890 A ELITE WIFI7 Z890 A ELITE WIFI7 1.0
изчерпано
Сокет: LGA1851
Чипсет: Intel® Z890
Тип на паметта: DDR5
Физически размер: ATX
Честота на паметта: 6400 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
6 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel® Z890 |
| Сокет | LGA1851 |
| Съвместими процесори | LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU; Please refer to "CPU Support List" for more information. |
| BIOS | 1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Тип на паметта | DDR5 |
| Честота на паметта | 6400 MHz |
| Слотове | CPU;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;Chipset;- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| Видео | Integrated Graphics Processor-Intel® HD Graphics support;- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs;When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).;When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).; Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.); Support for DisplayPort 2.1 version and HDCP 2.3;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz; Support for HDMI 1.4 version;- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; Support for DisplayPort 2.1 version and HDCP 2.3;(Graphics specifications may vary depending on CPU support |
| Дисков интерфейс | CPU;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);Chipset;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB);- 4 x SATA 6Gb/s connectors;RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices;RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| LAN порт | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Звук | Realtek® ALC1220 CODEC; The back panel line out jack supports DSD audio.;High Definition Audio;2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out |
| Портове | CPU;- 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;Support up to 40Gbps with Thunderbolt devices;Support up to 20Gbps with USB4 devices;Support up to 10Gbps with USB 3.2 devices;Chipset;- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header;- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel;- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header);Chipset+2 USB 2.0 Hubs;- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

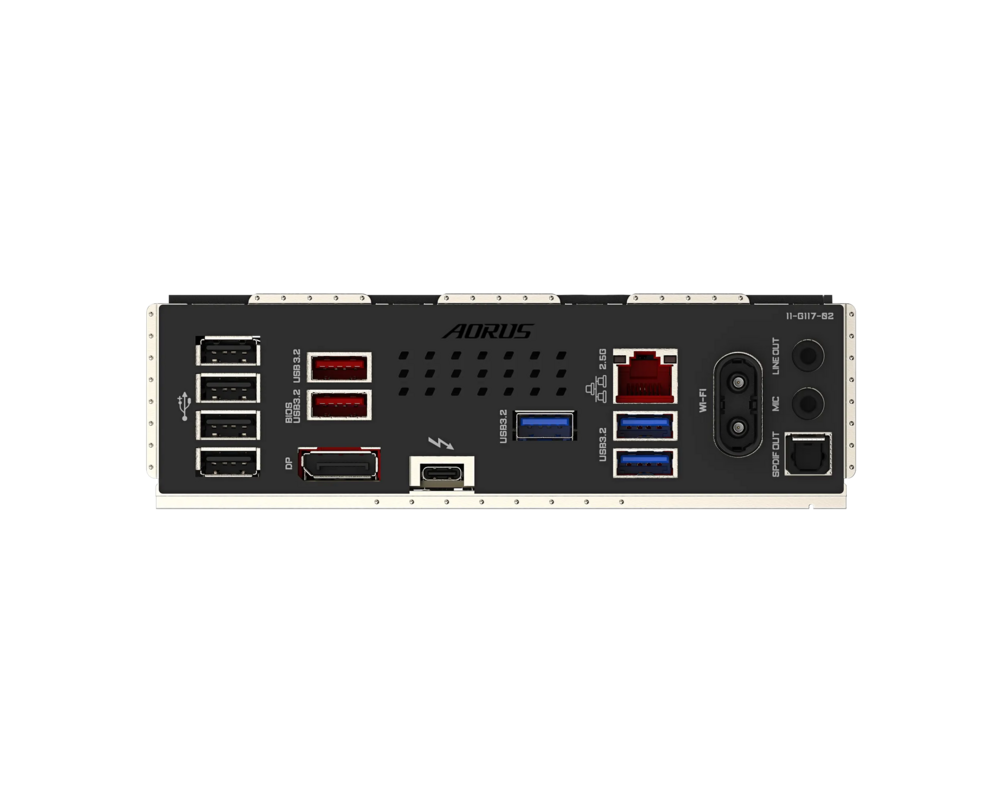

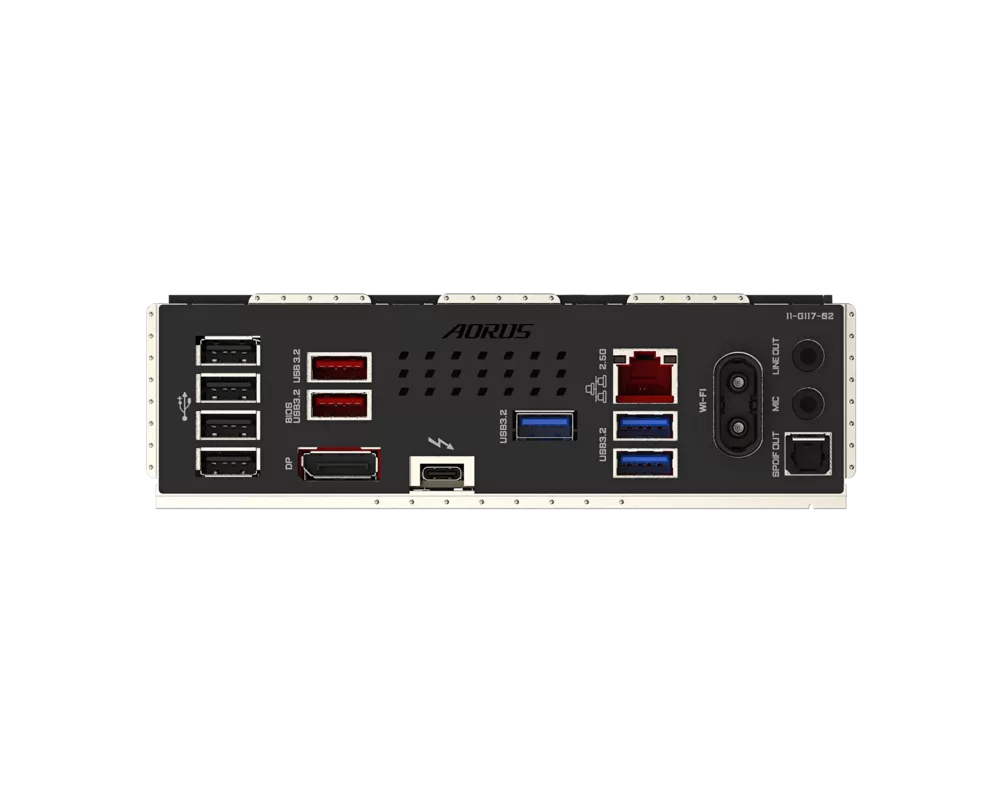

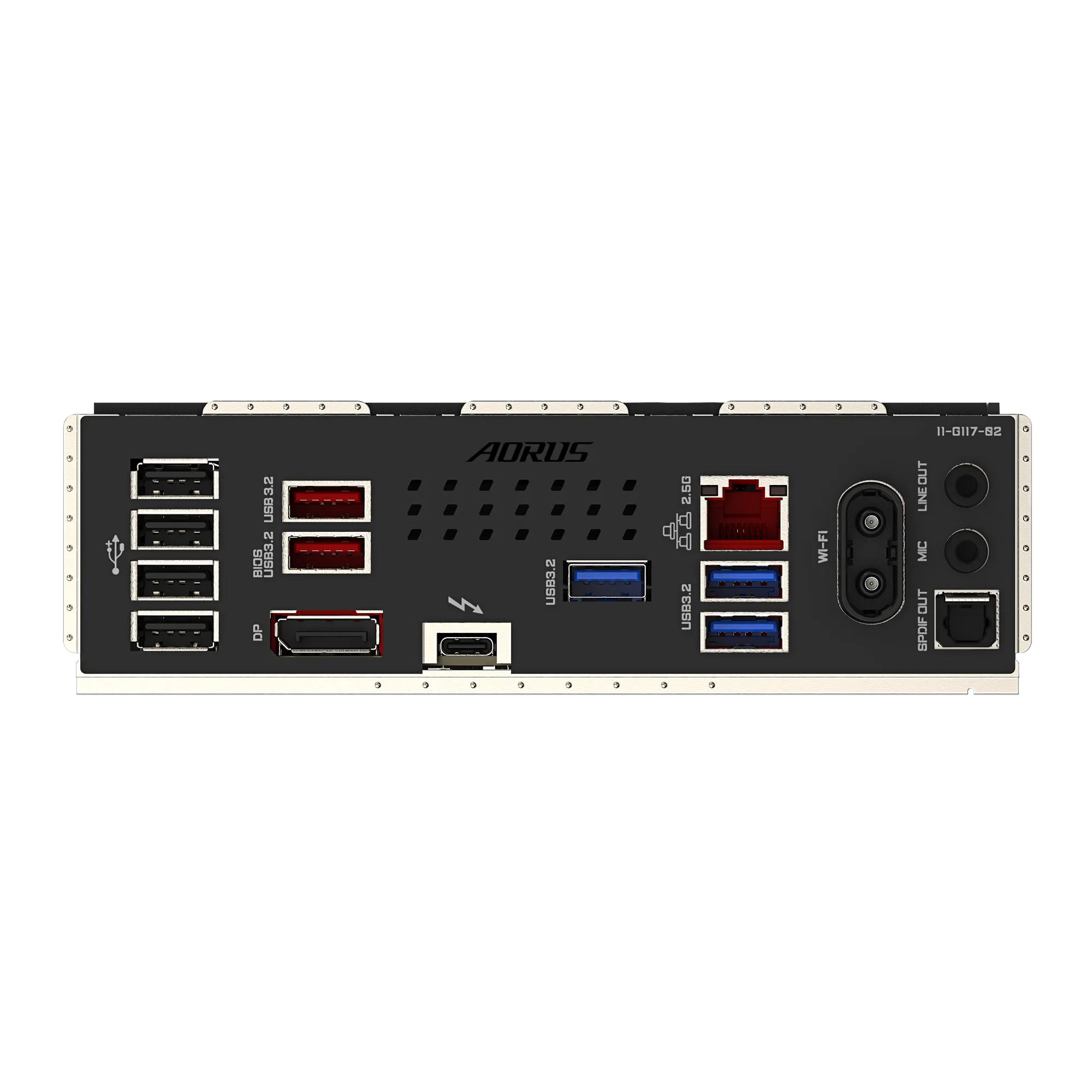

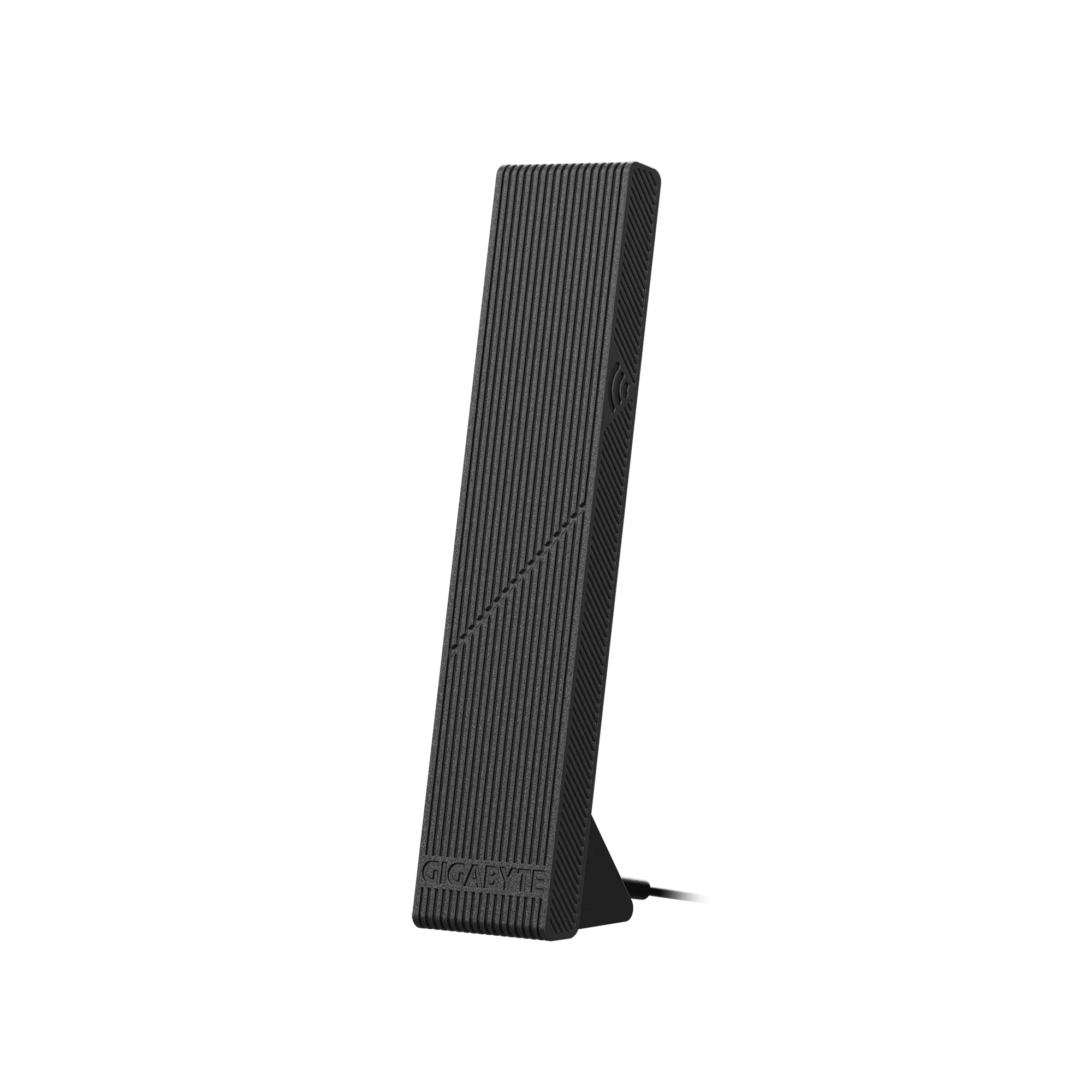

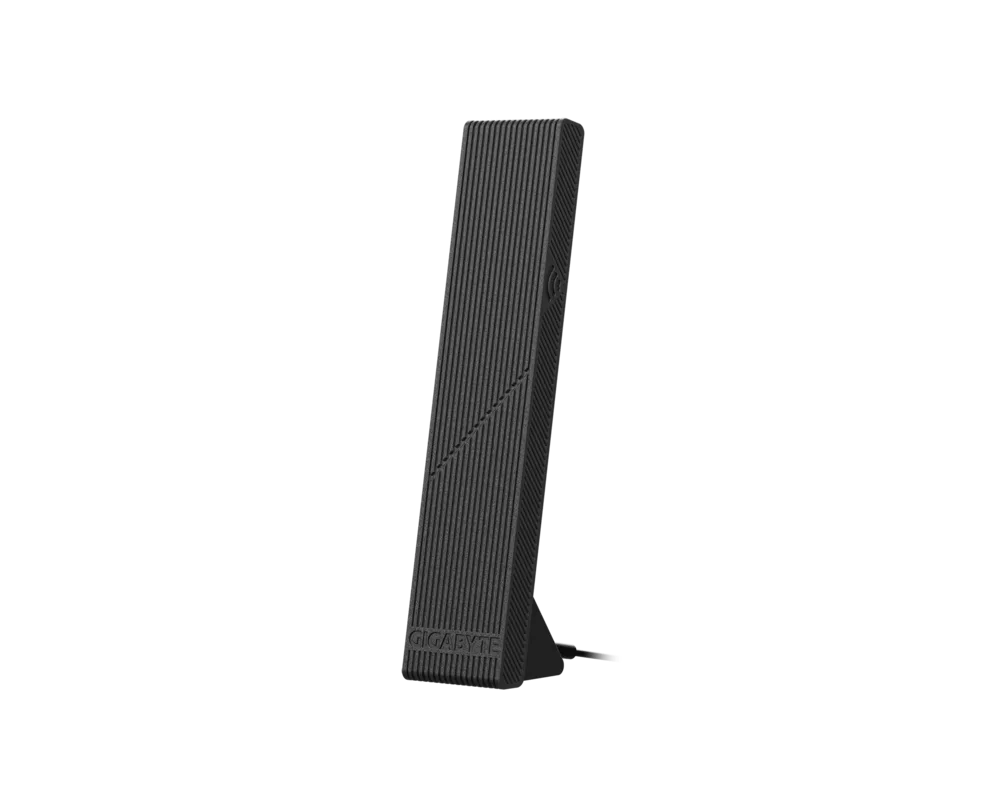

| Конектори | iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header;3 x system fan headers;1 x system fan/water cooling pump header;3 x addressable RGB Gen2 LED strip headers;1 x RGB LED strip header;4 x M.2 Socket 3 connectors;4 x SATA 6Gb/s connectors;1 x front panel header1 x front panel audio heade1 x USB Type-C® header, with USB 3.2 Gen 2 support;1 x USB 3.2 Gen 1 header;2 x USB 2.0/1.1 headers;1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only);1 x HDMI port (Note);1 x power button;1 x reset button;1 x Q-Flash Plus button;1 x reset jumper;1 x Clear CMOS jumper;(Note) Actual support may vary by CPU.;Back Panel Connectors: 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports);2 x USB 3.2 Gen 2 Type-A ports (red);3 x USB 3.2 Gen 1 ports;4 x USB 2.0/1.1 ports;2 x antenna connectors (2T2R);1 x DisplayPort (Note);1 x RJ-45 port;1 x optical S/PDIF Out connector;2 x audi |
| Гаранция | 36 месеца |
| Код на продукта | Z890 A ELITE WIFI7 1.0 |
