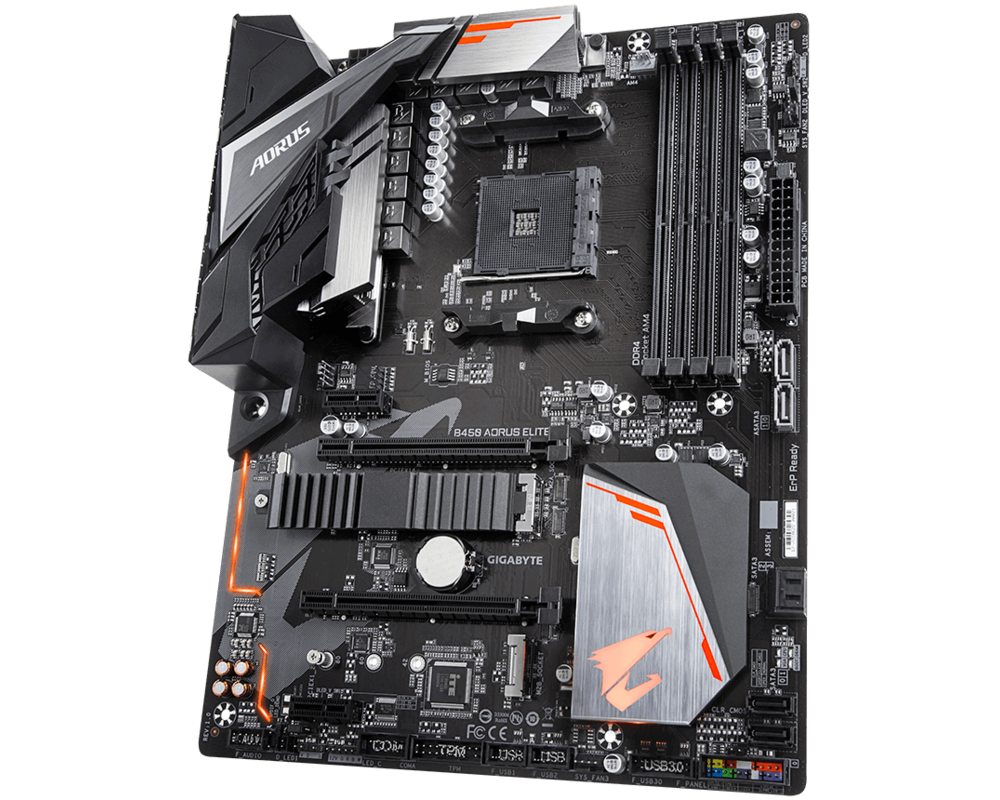

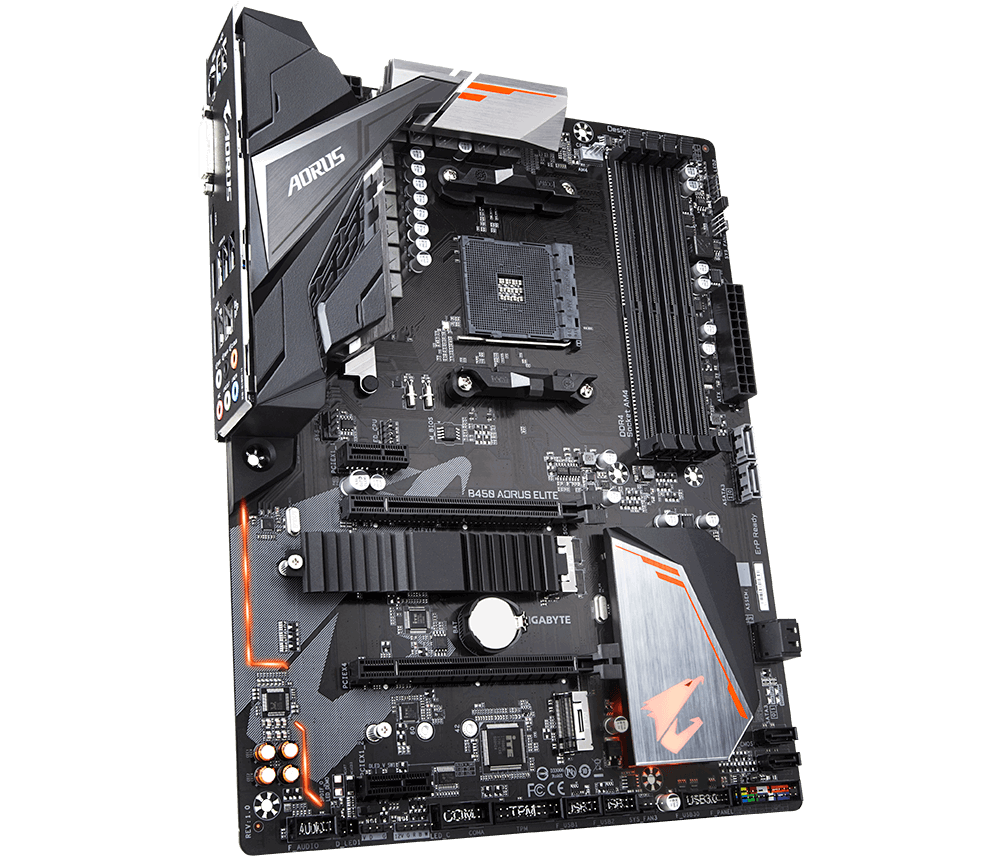

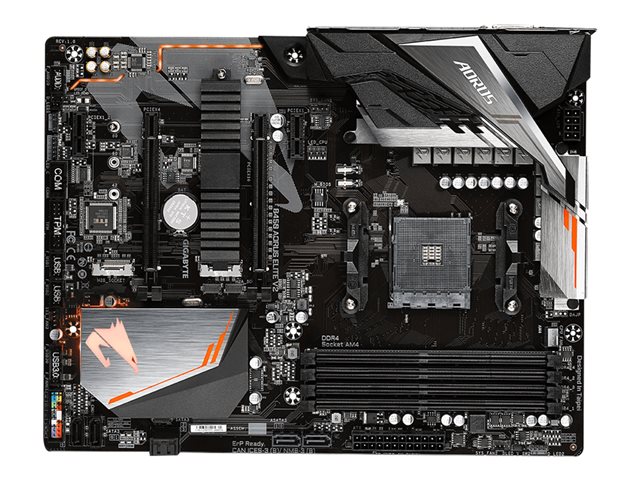

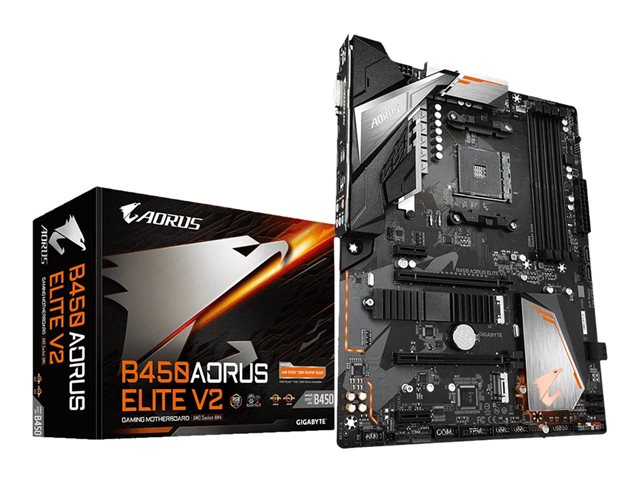

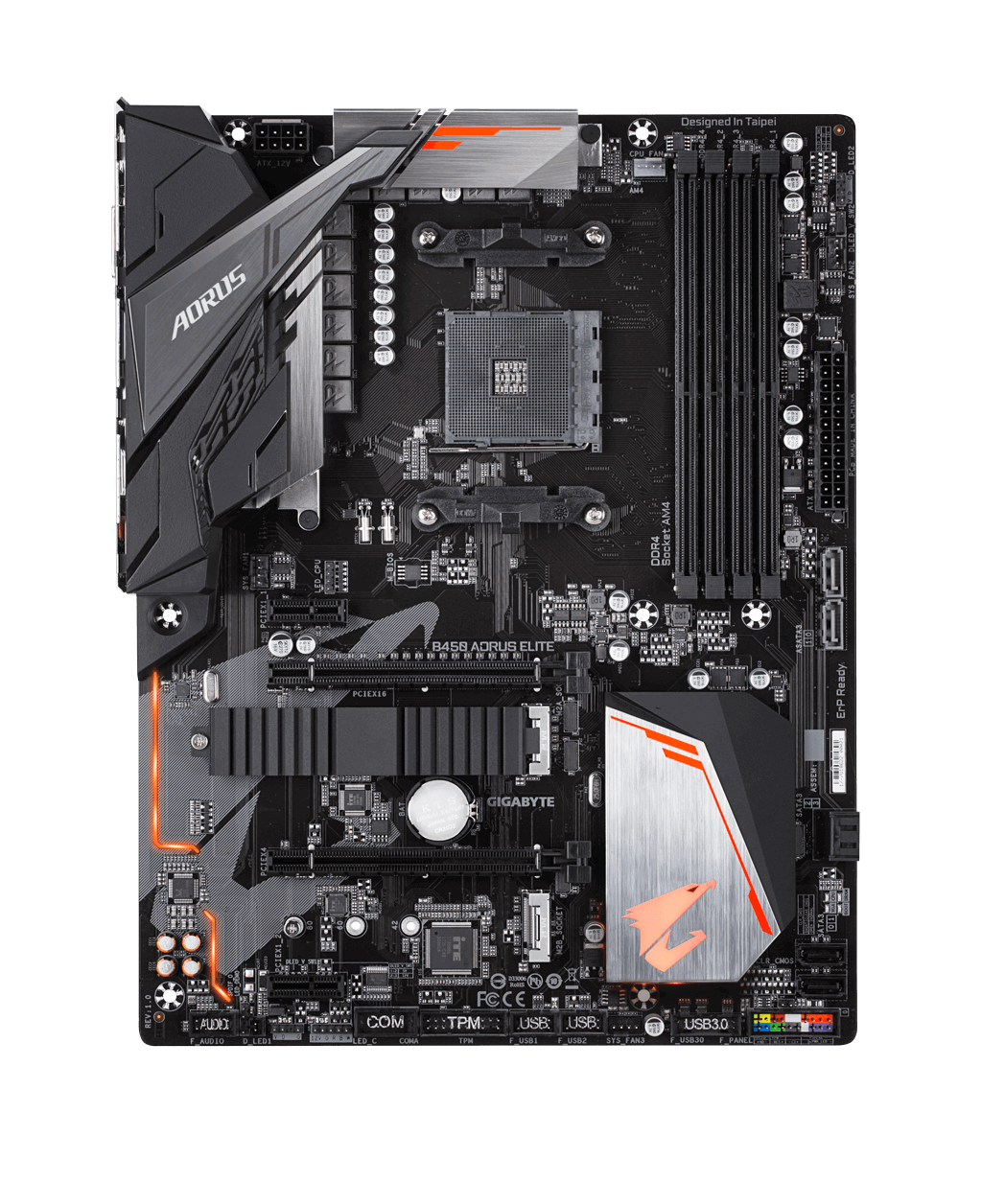

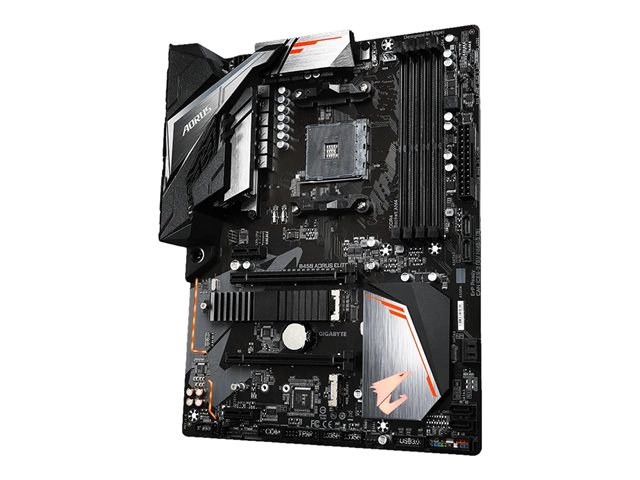

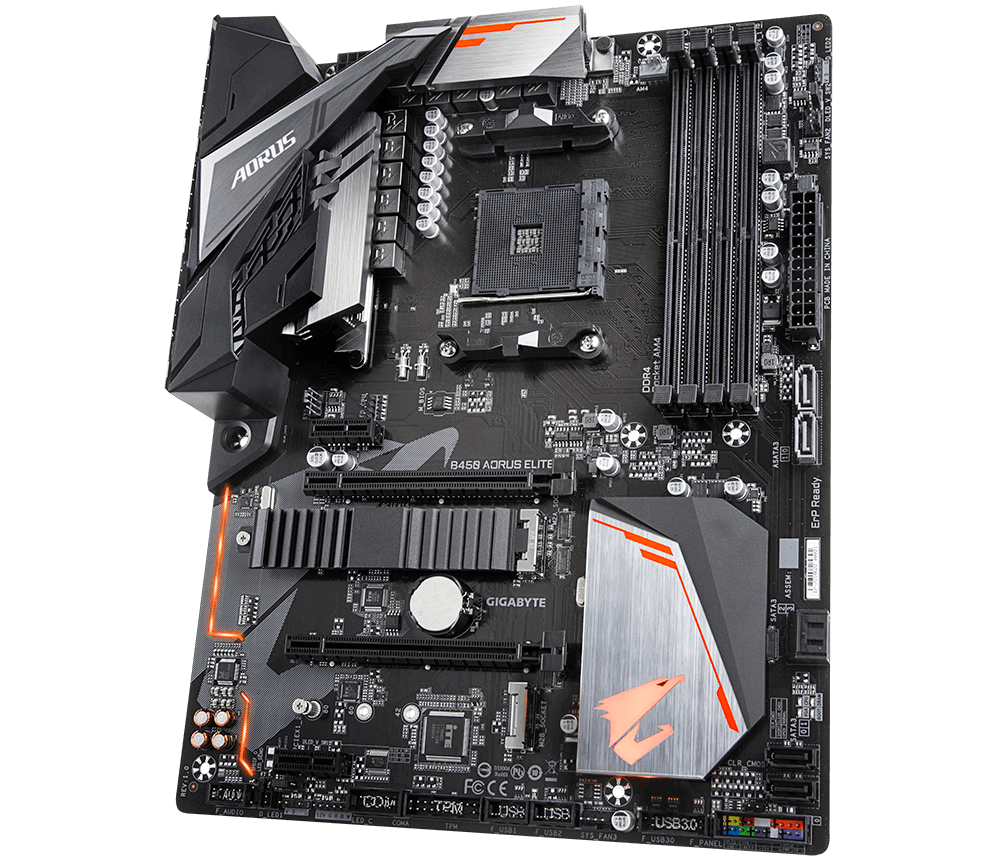

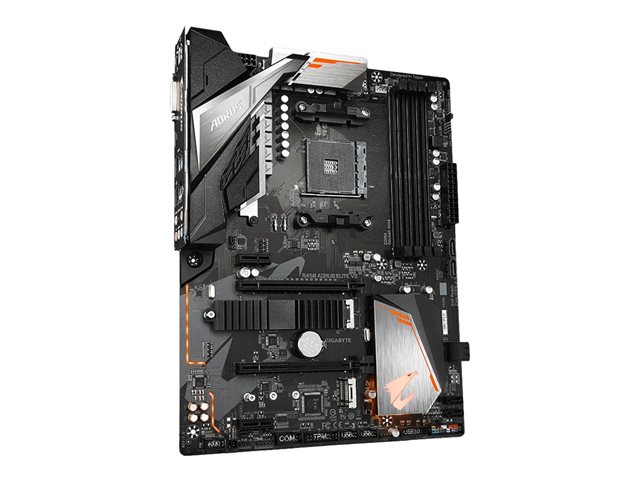

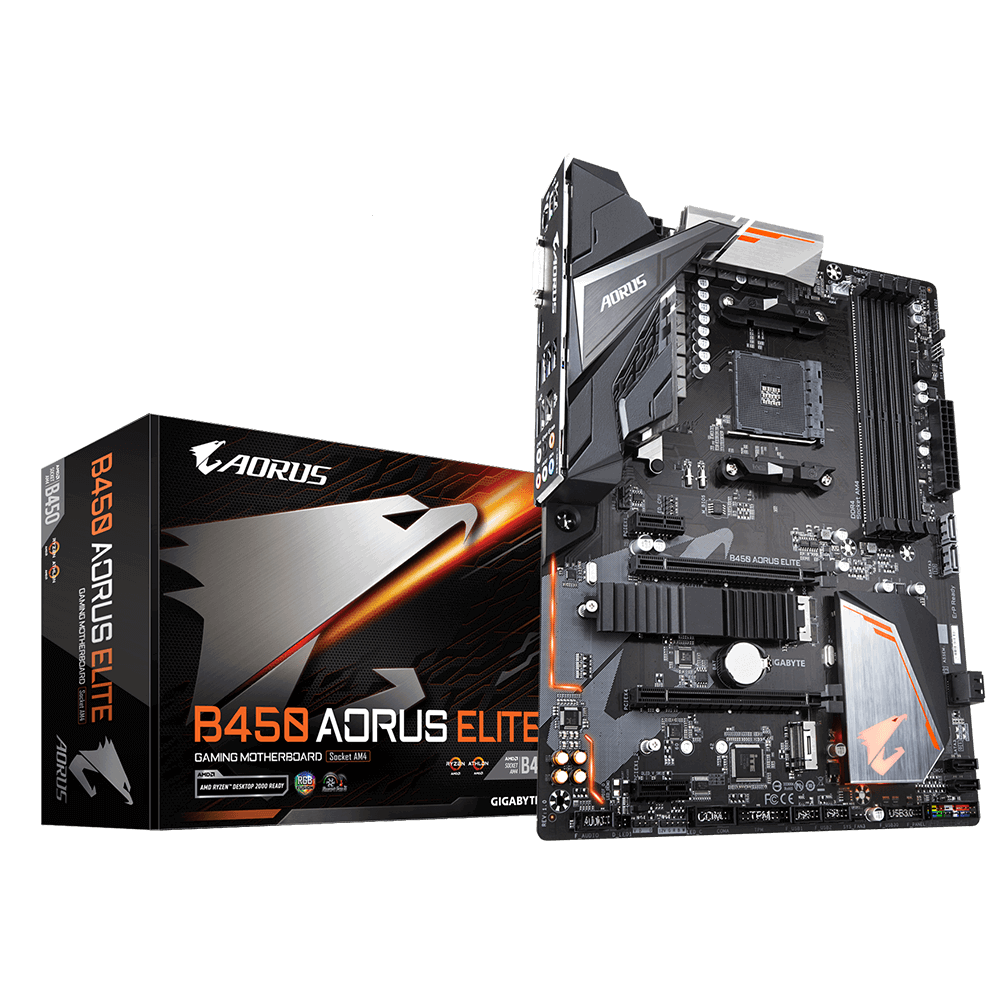

Дънна платка GIGABYTE B450 AORUS ELITE V2 AM4 DDR4 2xM.2 6xSATA ATX MB B450 AORUS ELITE V2
изчерпано
Сокет: AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD B450 |
| Сокет | AM4 |
| Съвместими процесори | Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 3.0 -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC892 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

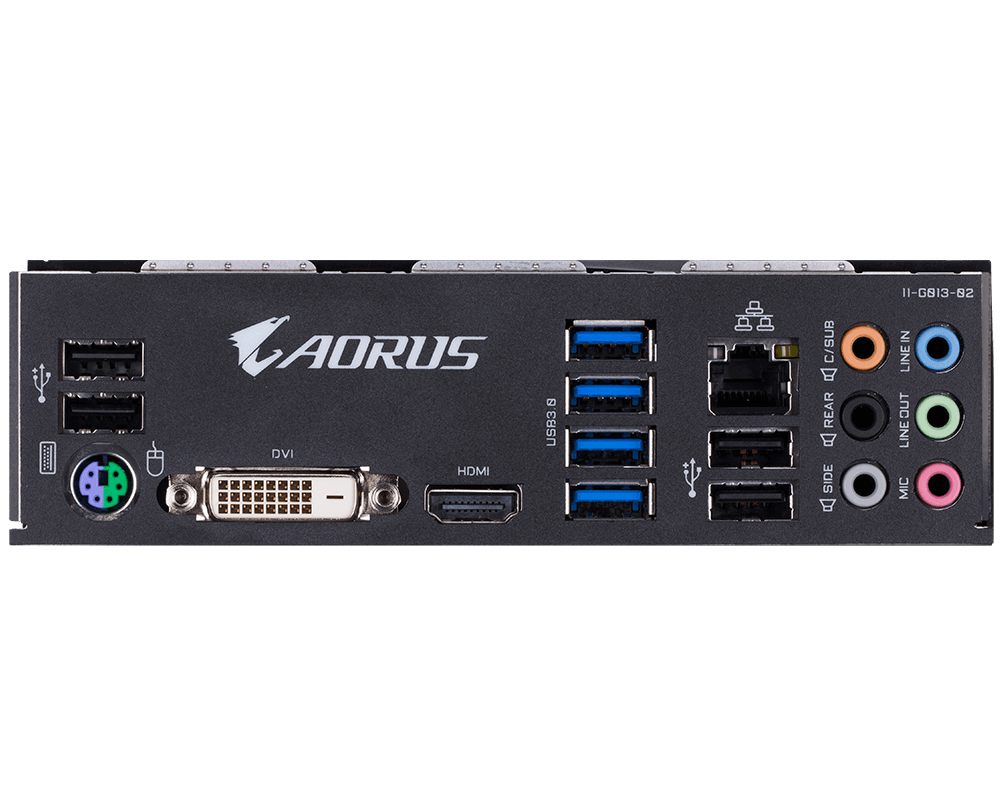

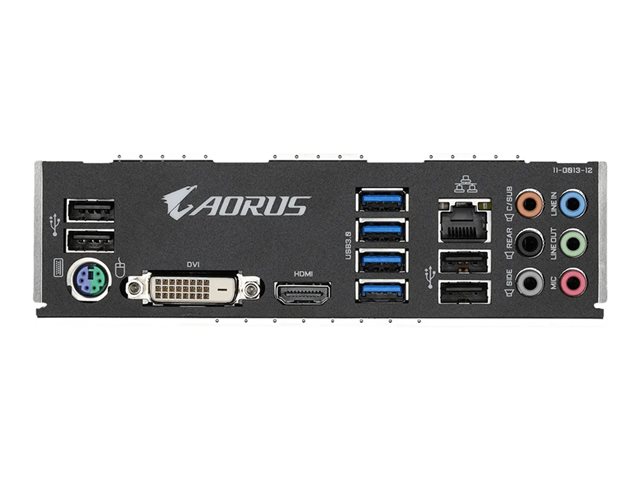

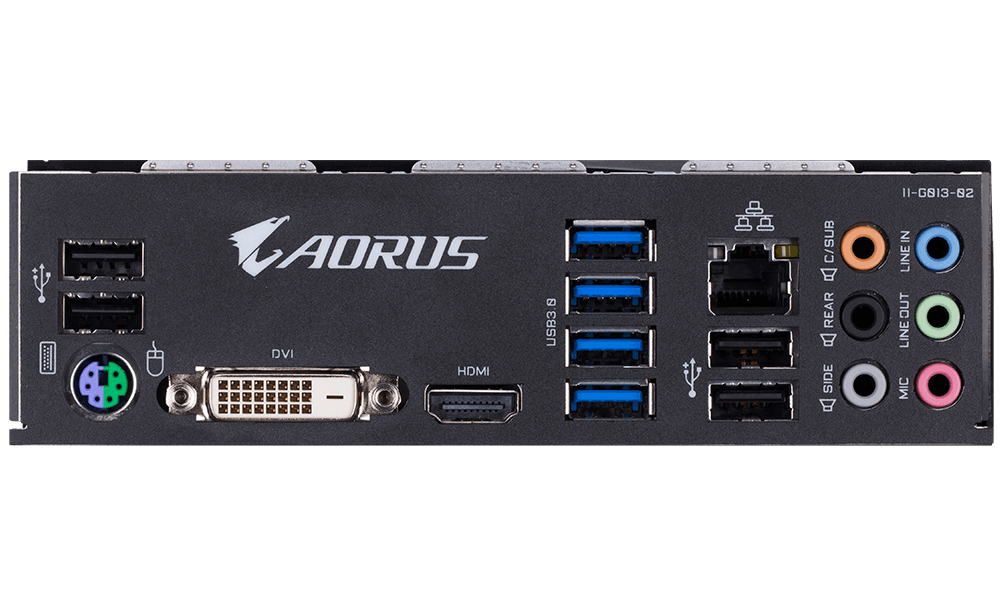

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DVI-D 1 x HDMI 4 x USB 3.1 Gen 1 4 x USB 2.0 1 x PS/2 keyboard / mouse 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 2.0 x16 (x4 mode (x2 mode any PCI Express 2.0 x1 slot is occupied)) 2 x PCIe 2.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x serial - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE App Center GIGABYTE Smart Backup Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage |
| Ширина | 30.5 cm |
| Дълбочина | 23.5 cm |
| Други характеристики |
8+2 Phase Power Design
On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support Audio Noise Guard with Path Lighting GIGABYTE Double Locking Bracket GIGABYTE Smart Fan 5 RGBW/-UV LED strips support M.2 Thermal Guard pre-mounted I/O shield CEC 2019 Ready AMD StoreMI technology Solid Pin Power Connectors RGB FUSION 2.0 |
| Гаранция | 36 месеца |
| Код на продукта | B450 AORUS ELITE V2 |
Виж повече
Допълнителна информация
- AORUS performance
B450 AORUS ELITE V2 motherboard use an 8+2 phases Digital Twin Power Design with Low RDS (on) MOSFETs to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - Exclusive Realtek 8118 Gaming LAN
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - RGB Fusion 2.0 with digital LEDs support
With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come. - High quality onboard audio design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. - Integrated I/O shield armor
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.
