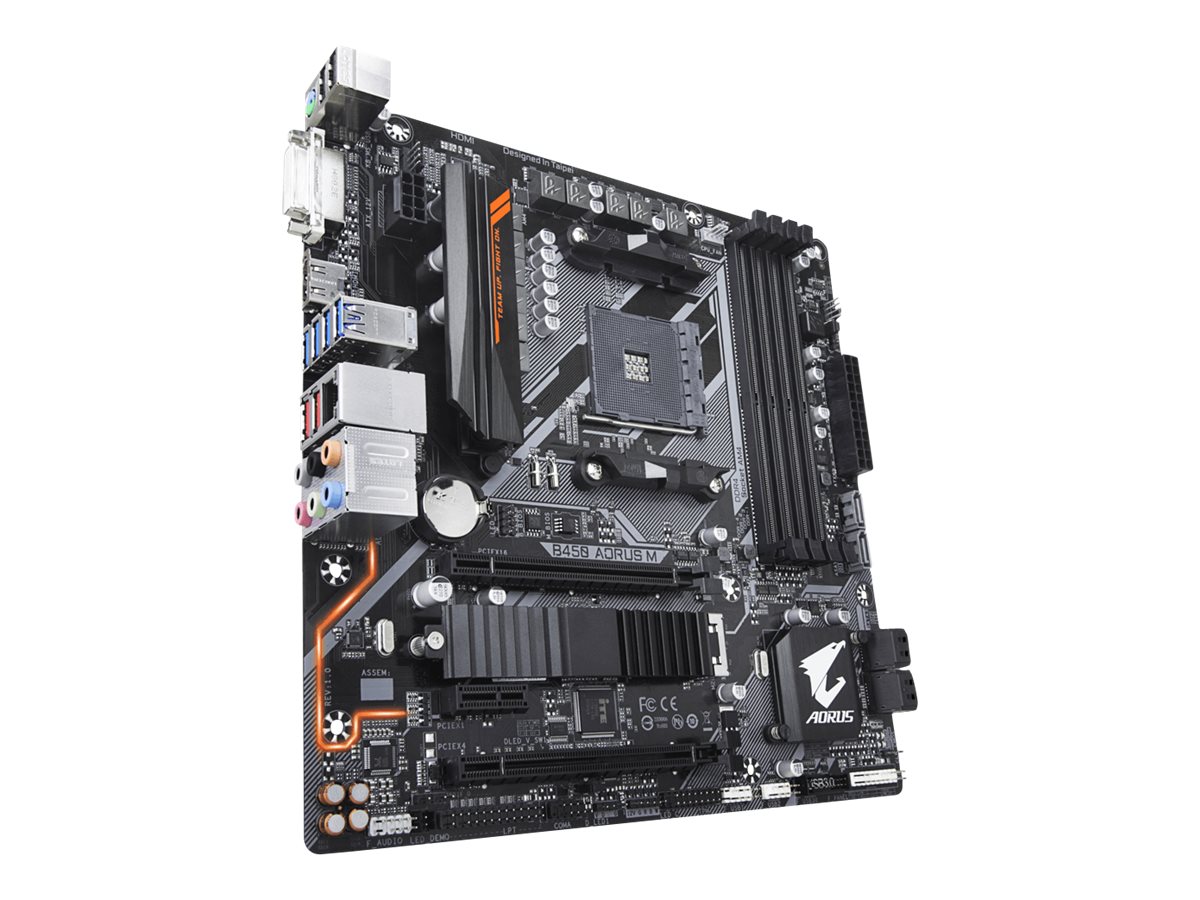

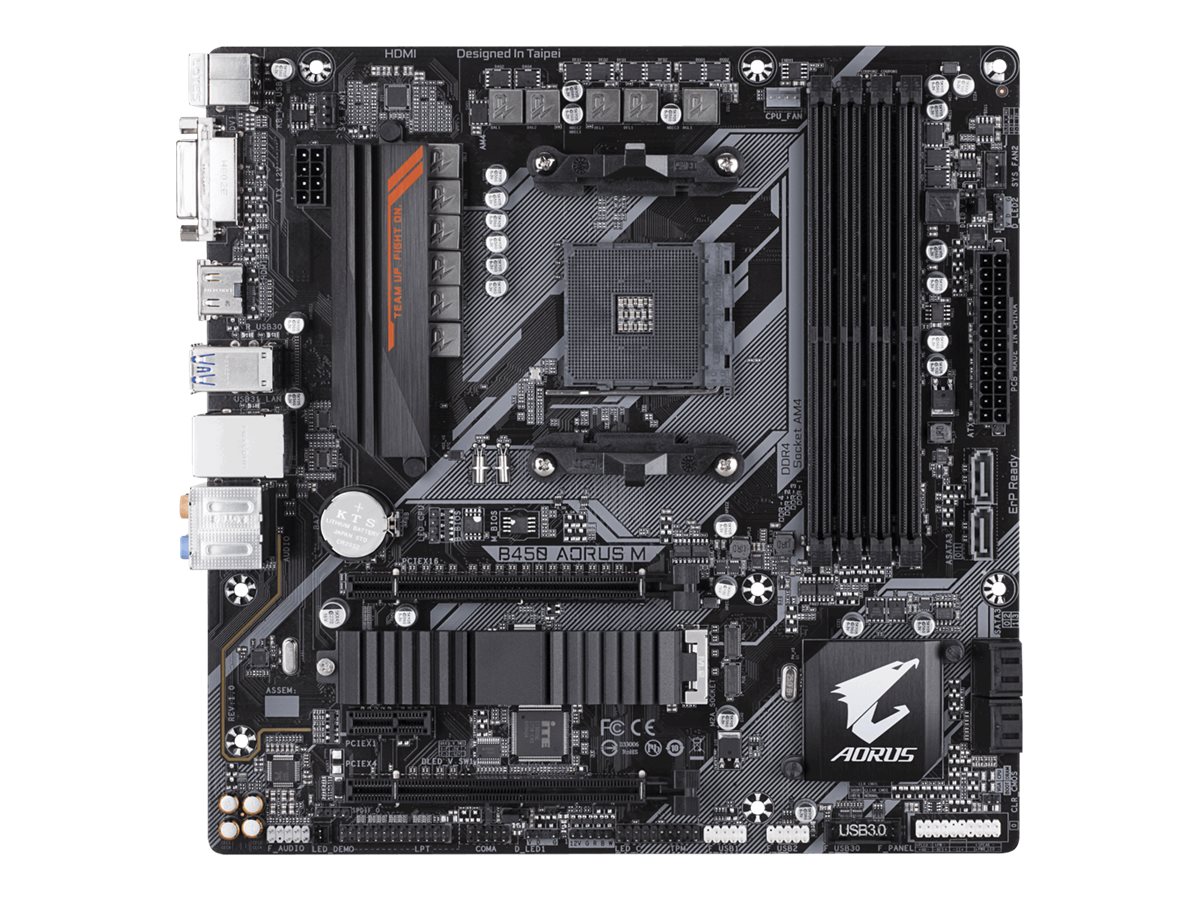

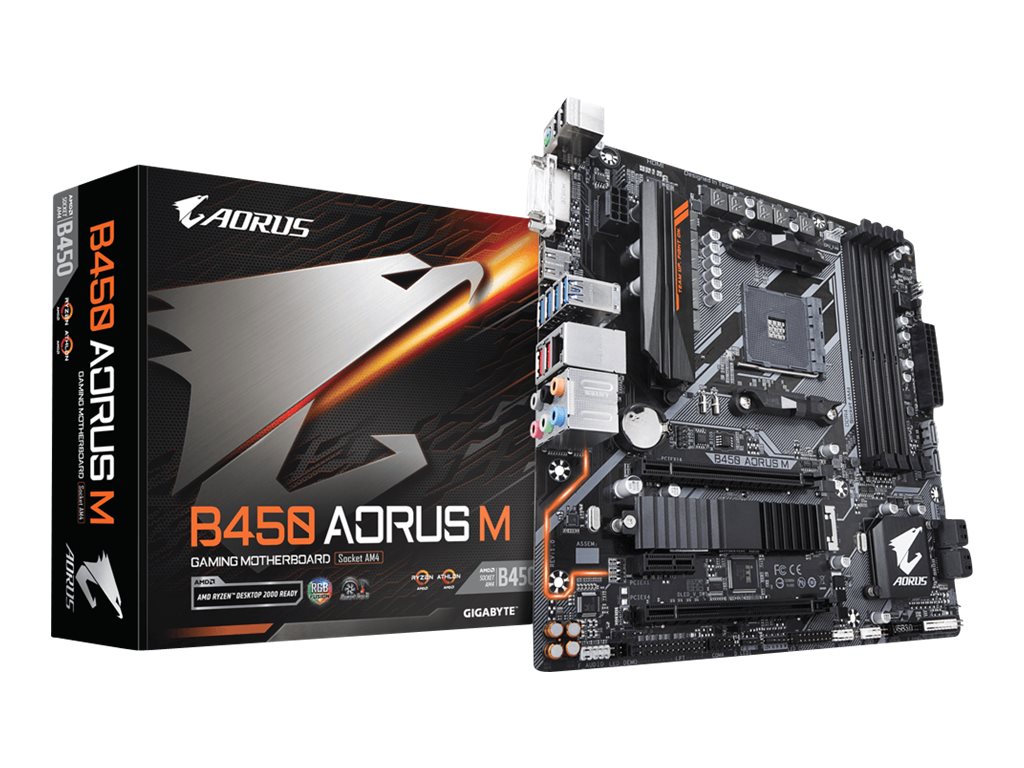

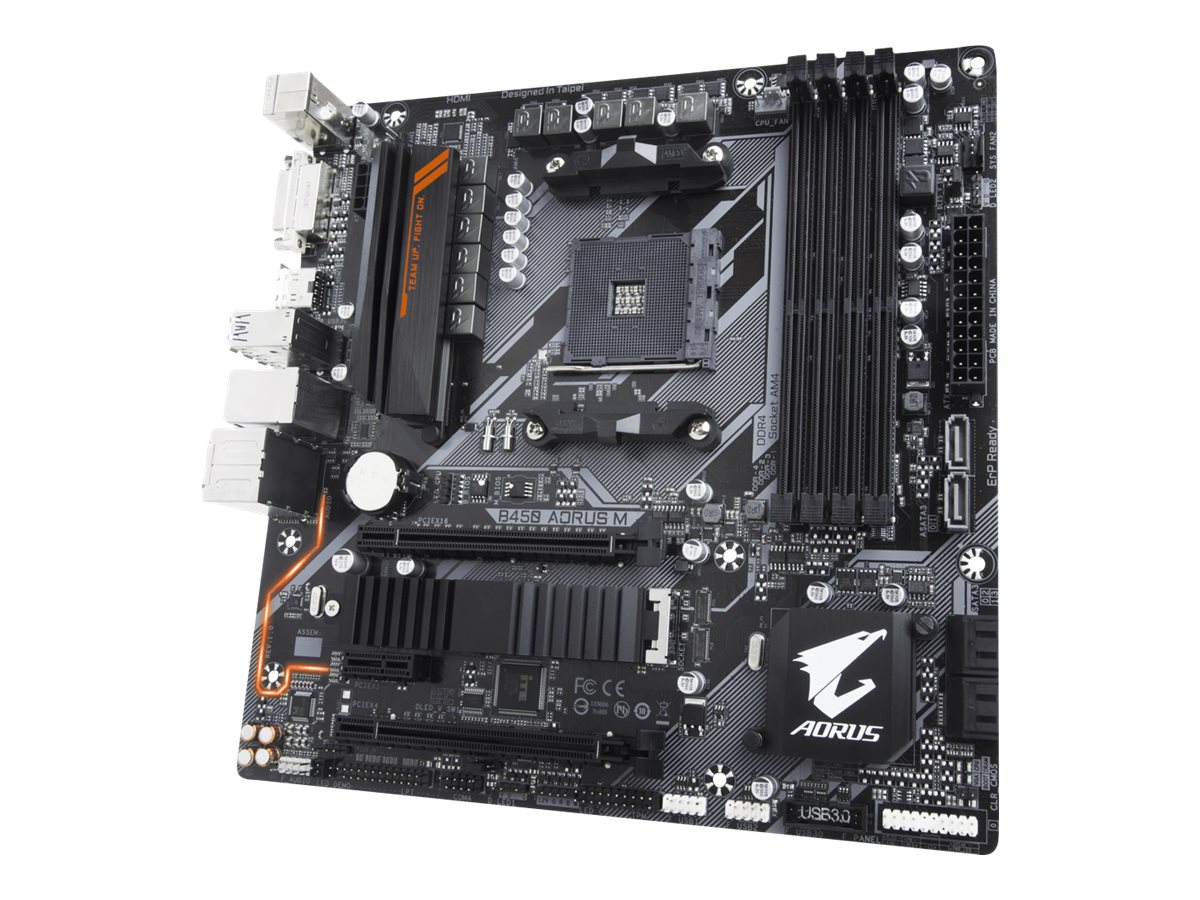

Дънна платка GIGABYTE B450 AORUS M AMD 5000 series DDR4 6xSATA 1xM.2 ATX B450 AORUS M
изчерпано
Сокет: AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
1 точка
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B450 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| LAN controller | Realtek RTL8118 |
| Звук | Realtek ALC892 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

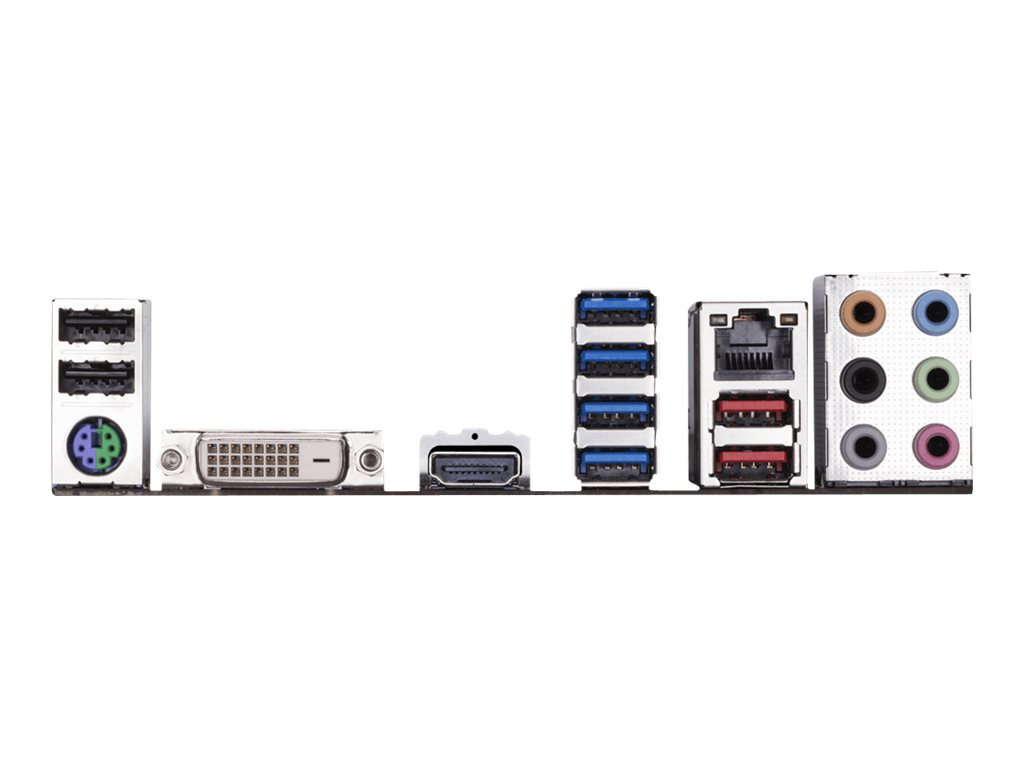

| Портове | LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DVI-D 1 x HDMI 4 x USB 3.1 Gen 1 2 x USB 2.0 2 x USB 3.1 Gen 2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x serial - header 1 x parallel - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart HUD GIGABYTE Smart Survey Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash
AutoGreen On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support ESD Protection Audio Noise Guard with Path Lighting GIGABYTE Double Locking Bracket Anti-Sulfur Design RGB FUSION RGBW/-UV LED strips support M.2 Thermal Guard CEC 2019 Ready AMD StoreMI technology Solid Pin Power Connectors 8+3 Phase Hybrid Digital PWM |
| Гаранция | 36 месеца |
| Код на продукта | B450 AORUS M |
Виж повече
Допълнителна информация
- AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read / write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. - Hybrid Digital PWM + Lower RDS(on) MOSFETs
AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs to offer incredible precision in developing power of the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - GIGABYTE ultra-efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue. - Native USB 3.1 Gen2
AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.1 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.1 Gen1. - High-speed Gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - RGB Fusion with digital LEDs support
RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on AORUS motherboards are upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. AORUS gaming motherboards will support either 5 V or 12 V digital LED lighting strips and up to 300 LED lights. - Independently programmable onboard pin header for RGBW/UV LED strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - High-quality onboard audio design
Delivers high-quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. - Make good connection and significantly lower the wires capacity
AORUS 400-series motherboards feature solid plated ATX 24-pin & ATX 12V 8-pin power connectors for offering stable power supply while CPU overloading. - 4K Ultra HD support
4K resolution is a technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI. - HDMI - advanced multimedia interface
HDMI is a high-definition multimedia interface which provides up to 5 Gb/s video transmitting bandwidth and 8-channel high-quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080 p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray / HD DVD and other protected media content.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
