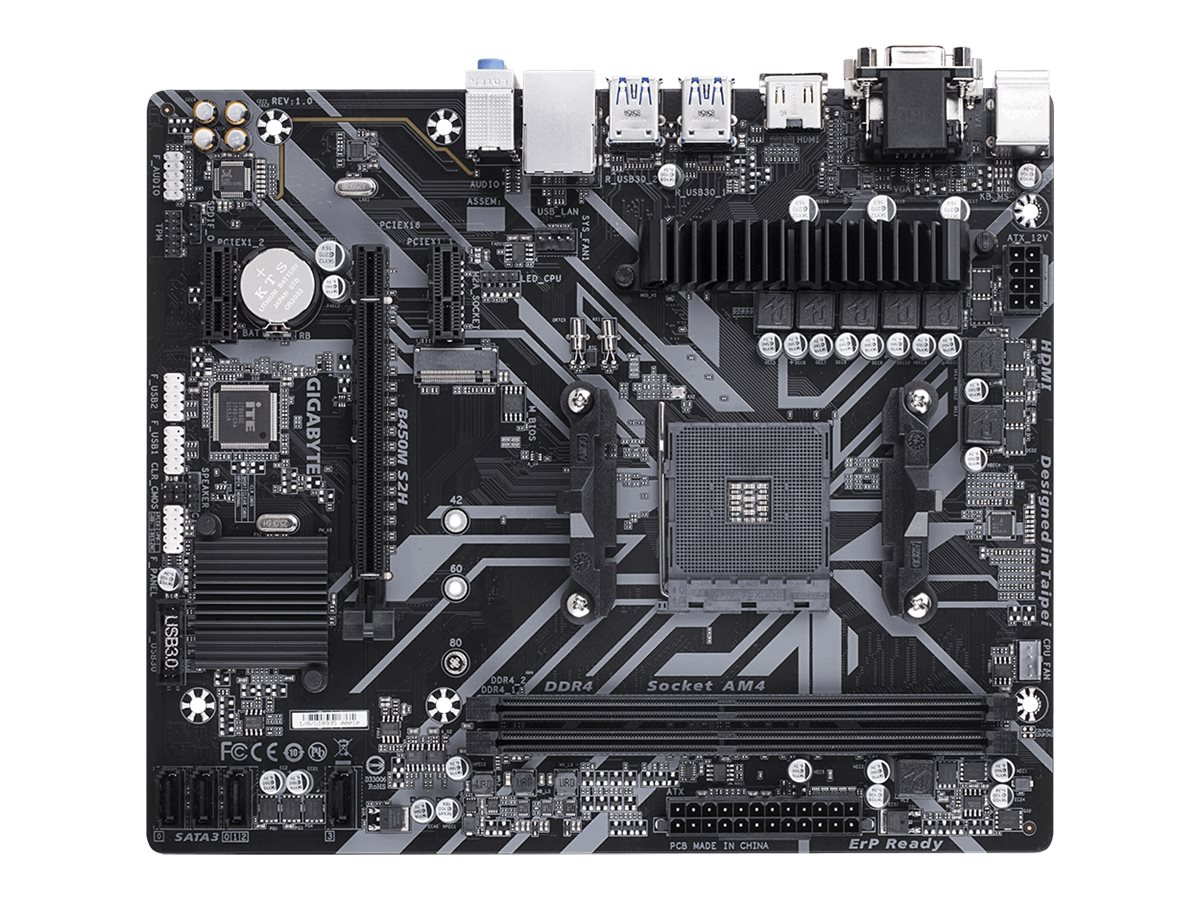

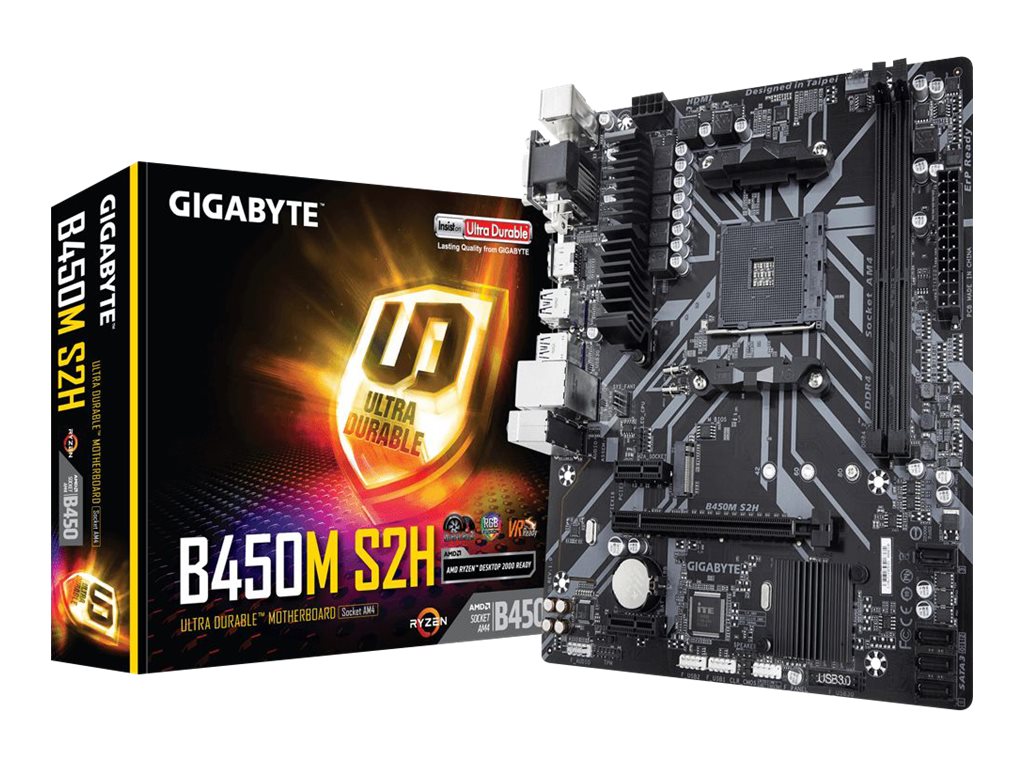

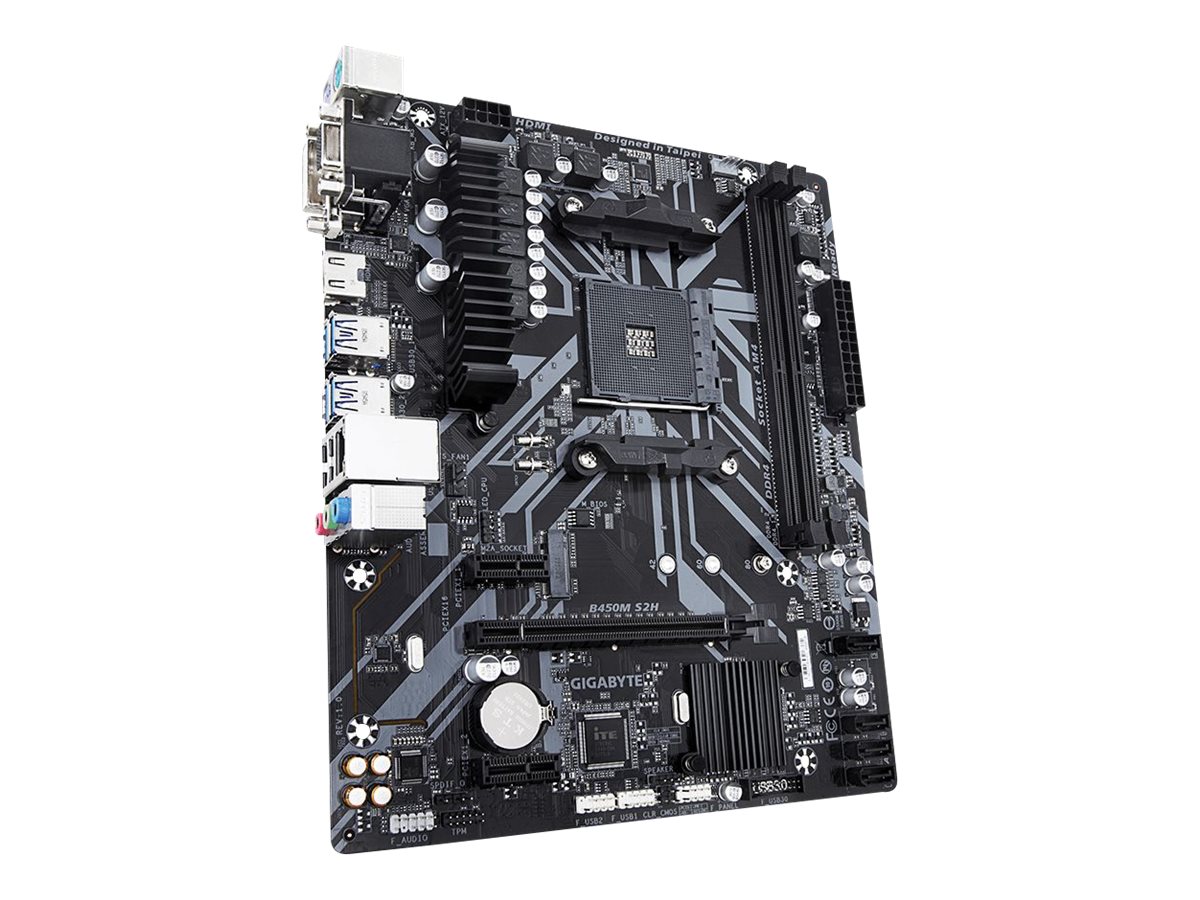

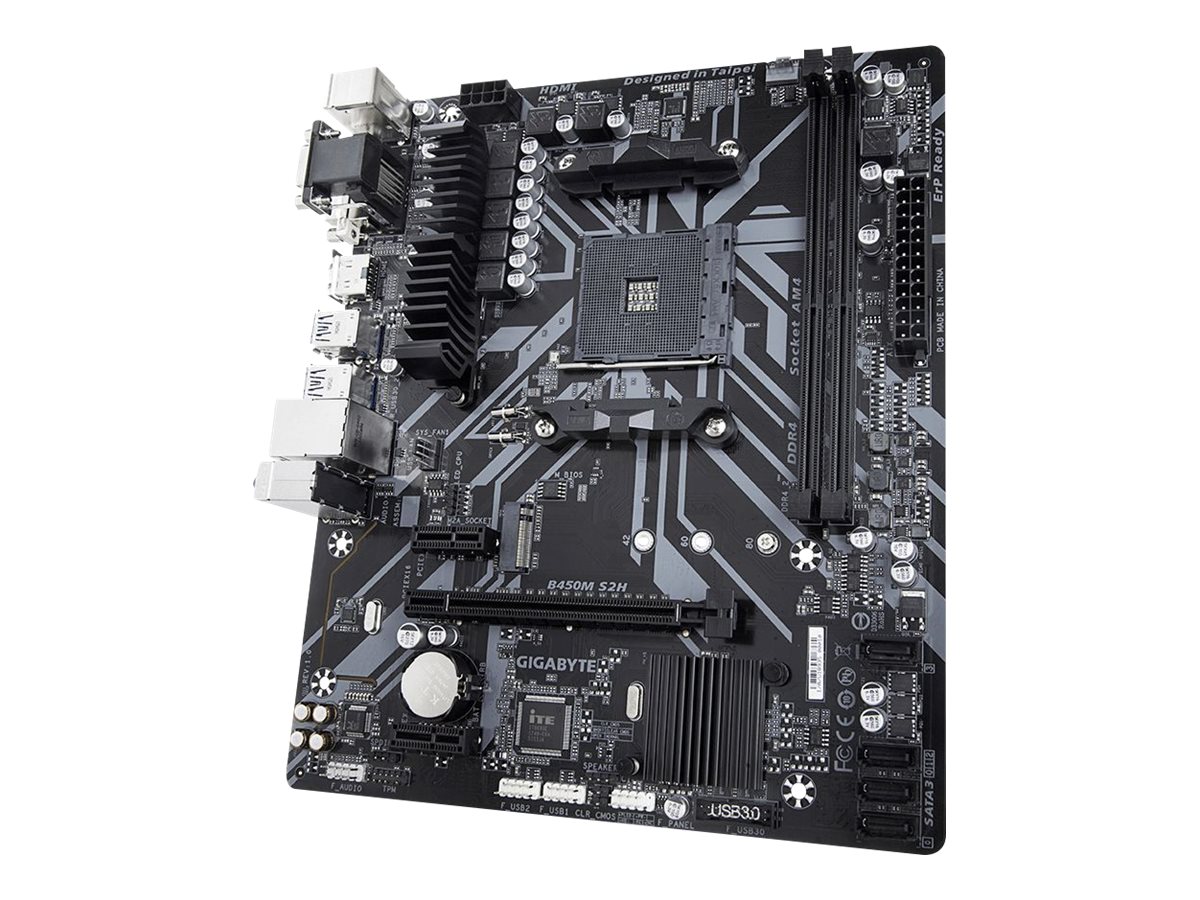

Дънна платка GIGABYTE B450M S2H AM4 2x DDR4 3200Mhz D-Sub DVI-D HDMI mATX MB B450M S2H
изчерпано
Сокет: AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B450 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 32 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| LAN controller | Realtek RTL8118 |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

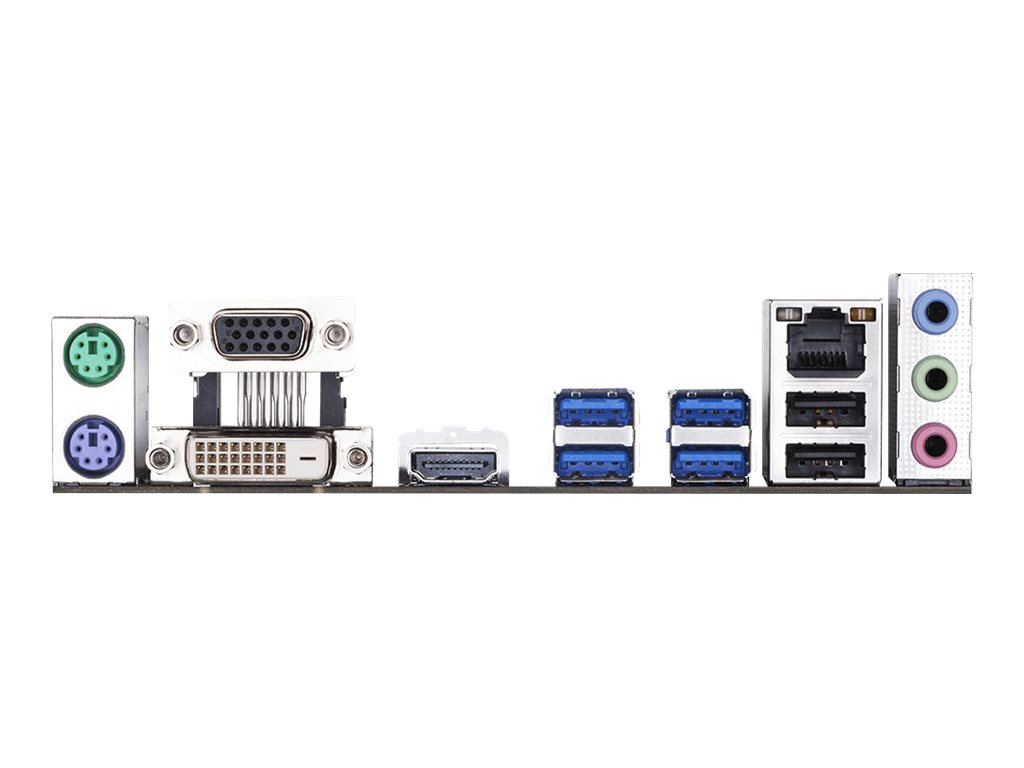

| Портове | 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DVI-D 1 x HDMI 4 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA 1 x PS/2 mouse |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 2.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x serial - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart HUD GIGABYTE Smart Survey Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage |
| Ширина | 24.4 cm |
| Дълбочина | 20.5 cm |
| Други характеристики |
Q-Flash
AutoGreen All-Solid Capacitor motherboard Design On/Off Charge Audio Noise Guard GIGABYTE Double Locking Bracket Anti-Sulfur Design GIGABYTE Smart Fan 5 RGB FUSION RGBW LED strips support Glass Fabric PCB AMD StoreMI technology 4+3 Hybrid Digital PWM Solid Pin Power Connectors |
| Гаранция | 36 месеца |
| Код на продукта | B450M S2H |
Виж повече
Допълнителна информация
- Fast onboard storage with NVMe PCIe Gen3 x4 80 mm M.2
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices. - Exclusive Realtek 8118 gaming LAN
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - The industry's leading LAN static-electricity & surge protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Hybrid fan pin headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers - giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. - Supports RGB light strips in 7 colors
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique! - High quality onboard audio design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. - Solid pin power connectors
GIGABYTE 400-series motherboards feature solid plated ATX 24 pin & ATX 12 V 8 pin power connectors for offering stable power supply while CPU overloading.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
Виж повече
