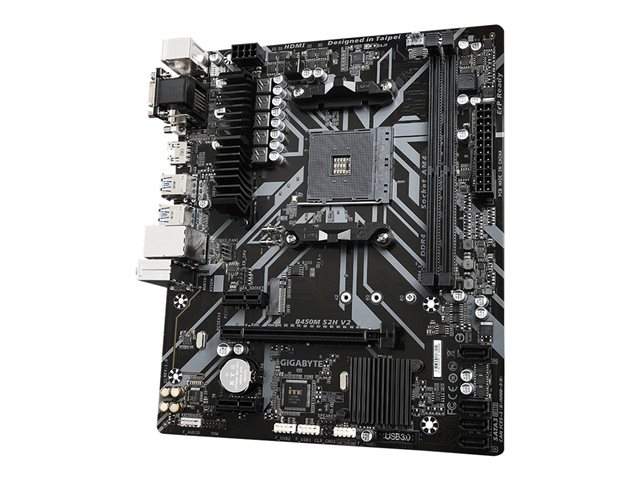

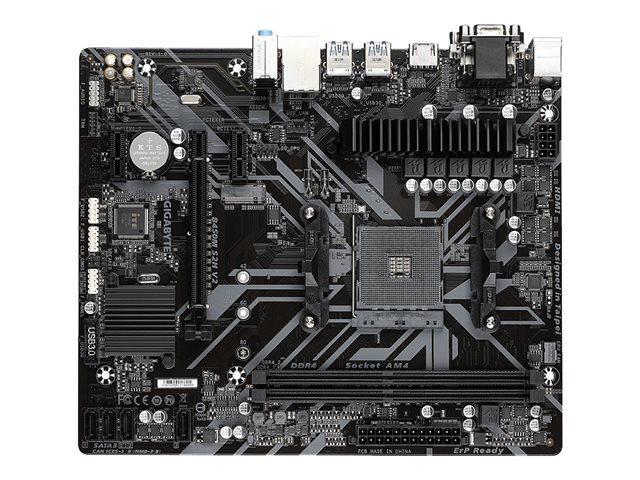

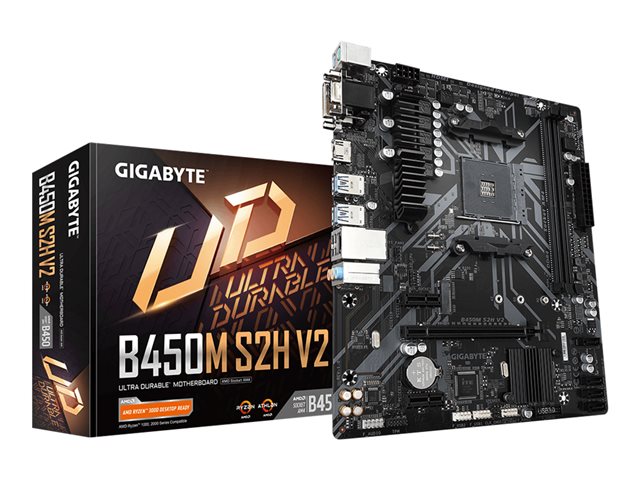

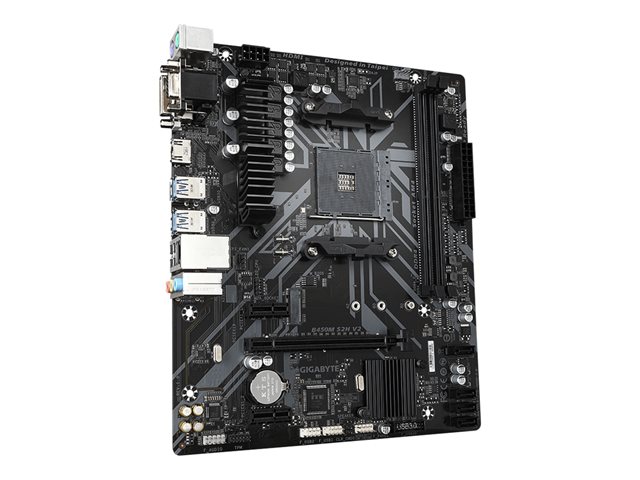

Дънна платка GIGABYTE B450M S2H V2 AM4 DDR4 1xM.2 4x SATA 6Gb B450M S2H V2
изчерпано
Сокет: AM4
Чипсет: AMD B450
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
1 точка
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | AMD B450 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

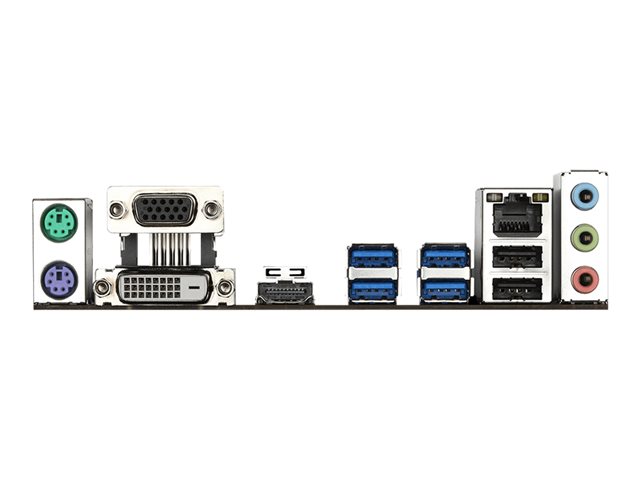

| Портове | 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x DVI-D 1 x HDMI 4 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA 1 x PS/2 mouse |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 2.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 1 x speaker - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
GIGABYTE App Center
@BIOS EasyTune GIGABYTE Smart Backup Xpress Install Norton Internet Security Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage |
| Ширина | 24.4 cm |
| Дълбочина | 20.5 cm |
| Други характеристики |
On/Off Charge
Game Boost RGB FUSION Q-Flash Ultra Durable Anti-Sulfur Design CEC 2019 Ready GIGABYTE Smart Fan 5 AMD StoreMI technology 4+2 Phase Power Design Solid Pin Power Connectors Audio Noise Guard All-Solid Capacitor motherboard Design GIGABYTE Double Locking Bracket Glass Fabric PCB |
| Гаранция | 36 месеца |
| Код на продукта | B450M S2H V2 |
Виж повече
Допълнителна информация
- AMD StoreMI technology
GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Intelligent fan control design
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature - all of it can be customized to your liking. - Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers - giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. - High-quality onboard audio design
Delivers high quality sound resolution and sound expansion to create the realistic sound effects for professional gamers. - Start sulfurization protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. - Humidity protection glass fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
