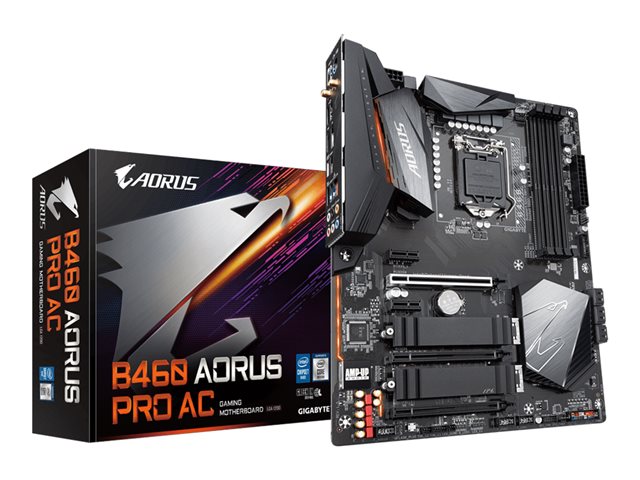

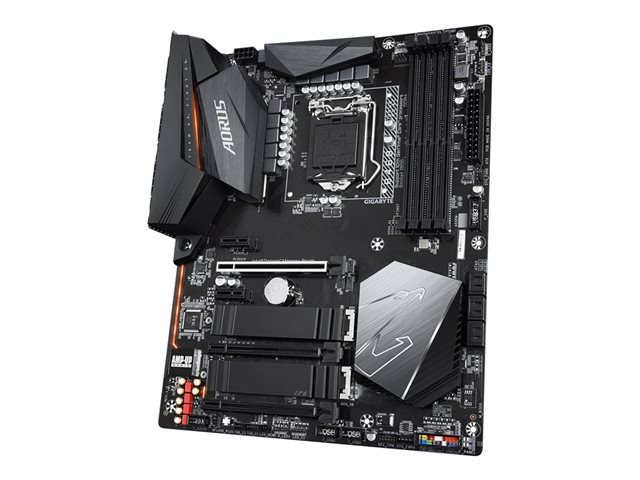

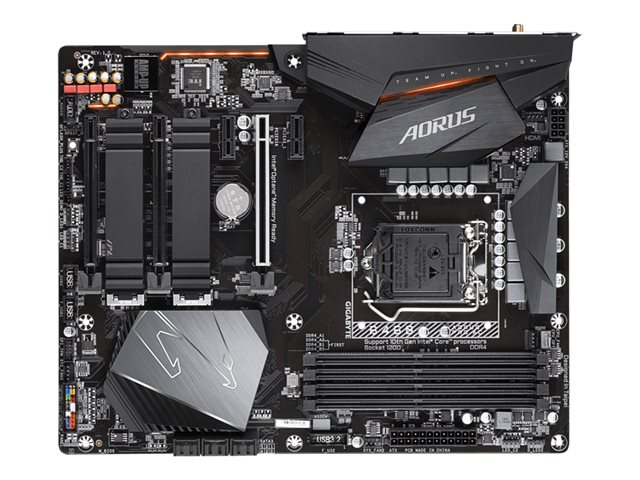

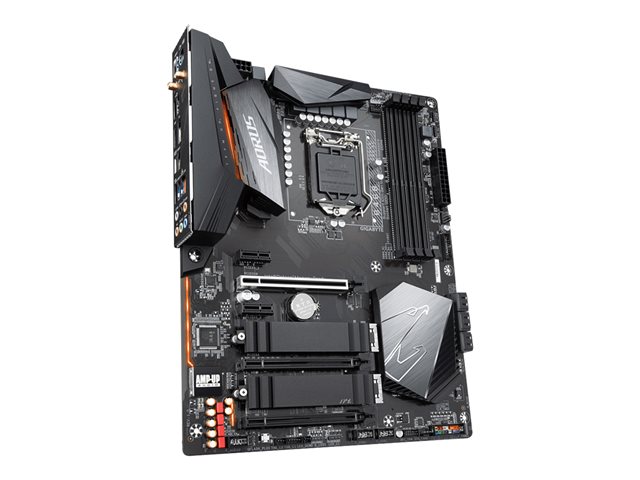

Дънна платка GIGABYTE B460 AORUS PRO AC LGA 1200 DDR4 2xM.2 6xSATA WiFi DP HDMI ATX B460 AORUS PRO AC
изчерпано
Сокет: LGA 1200
Чипсет: Intel B460
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B460 |
| Сокет | LGA 1200 |
| Съвместими процесори |
Pentium Celeron Core i5 Core i3 Core i7 Core i9 (supports 10th Generation Intel Core / Pentium / Celeron) |
| BIOS |
WfM 2.0 support UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 1 x M.2 PCIe -connectors: 1 x M.2 |
| LAN порт | 802.11a/b/g/n/ac Wave 2, 2.5 Gigabit Ethernet, Bluetooth 5.0 |
| Звук | Realtek ALC1220-VB |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

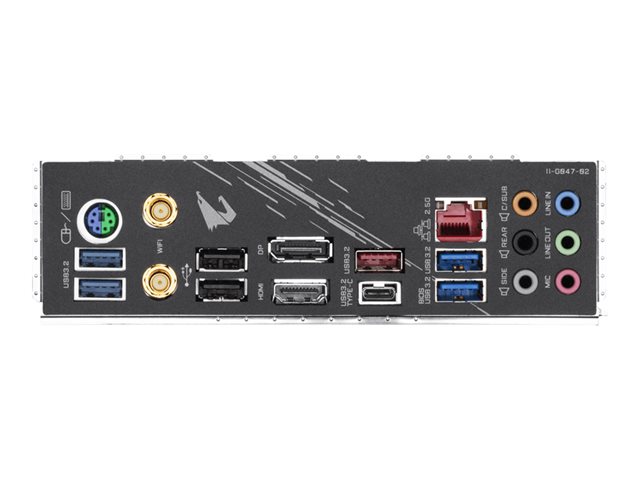

| Портове | 1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C Gen2 1 x USB 3.2 Gen 2 2 x USB 2.0 4 x USB 3.2 Gen 2 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x4 mode (x2 mode if M.2 is occupied)) 3 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt - header 1 x SPDIF out - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security @BIOS EasyTune Xpress Install cFosSpeed GIGABYTE Fast Boot GIGABYTE Smart Backup |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection |
| Стандарти | Plug and Play, DisplayPort 1.4 |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash 8+2 Phase Power Design On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support Front Audio Headphone Amplifier GIGABYTE AMP-UP Audio WIMA film capacitors Q-Flash Plus Game Boost GIGABYTE Double Locking Bracket Intel Optane Memory Ready GIGABYTE Smart Fan 5 Ultra Durable PCIe Armor M.2 Thermal Guard pre-mounted I/O shield Solid Pin Power Connectors RGB FUSION 2.0 |
| Гаранция | 36 месеца |
| Код на продукта | B460 AORUS PRO AC |
Виж повече
Допълнителна информация
- Direct 8+2 phases digital VRM solution with Low RDS(on) MOSFET
B460 AORUS PRO AC motherboard uses an 8+2 phase digital PWM + Lower RDS(on) MOSFETs design to support the 10-core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - AORUS performance
With high-quality components and GIGABYTE R&D design capability, the B460 AORUS is a true beast among motherboards. - Single 32GB support
The memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth for memory-intensive applications such as rendering and video editing. - Dual NVMe PCIe Gen 3 M.2 slots (x4, x2)
GIGABYTE motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - GIGABYTE ultra-efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers - giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be the fan or pump with different PWM or Voltage mode. - Integrated Intel 802.11ac Wave2 CNVi Wi-Fi + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, and provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides a 4x range over BT4.2 and with faster transmission. - Intel USB 3.2 Gen 2 Type-C controller
Intel's native USB 3.2 Gen 2 host controller provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backward compatibility with USB 2.0 and USB 3.2 Gen 1, the much-improved USB 3.2 Gen 2 protocol is available over the reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices. - ALC 1220 120dB SNR HD audio
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal-clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC. - High-end WIMA and audio capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Nichicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state-of-the-art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles. - Multi-zone light show design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. - Ultra Durable
GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, GIGABYTE uses excellent components for the B460 AORUS motherboard and reinforces every slot to make each of them solid and durable.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
Виж повече
Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
