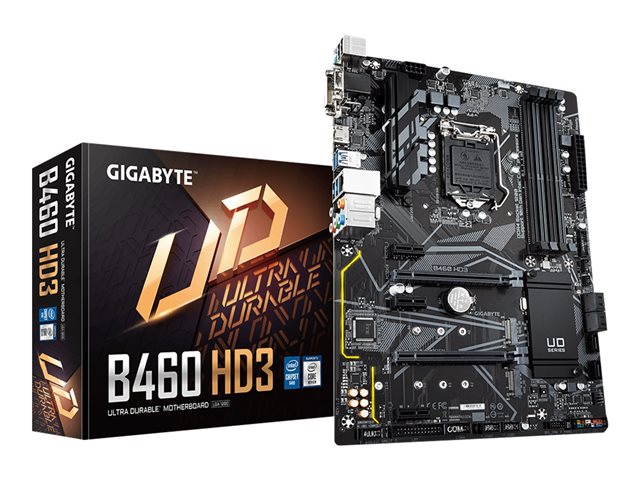

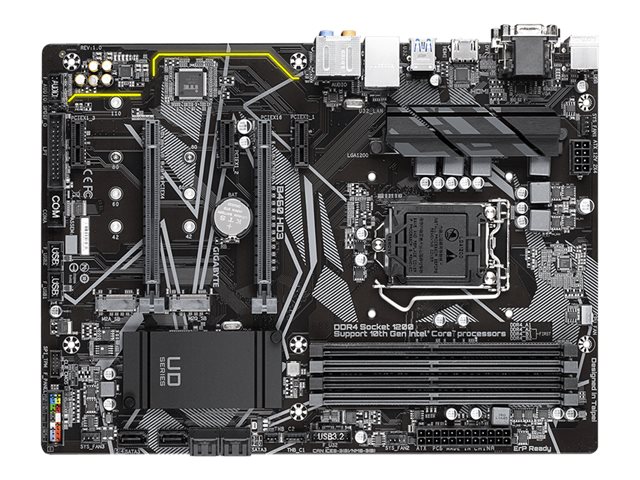

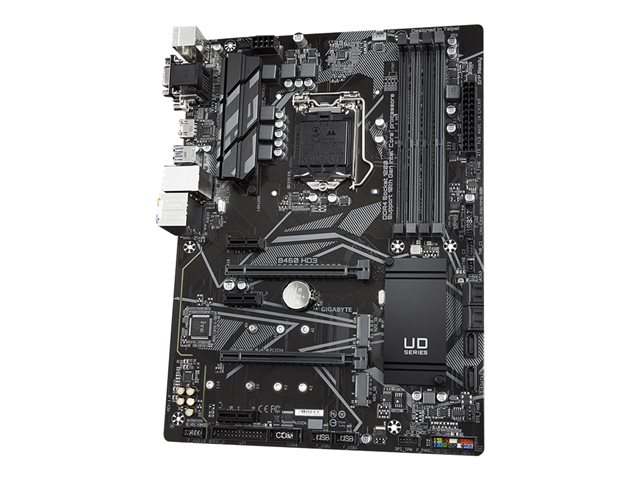

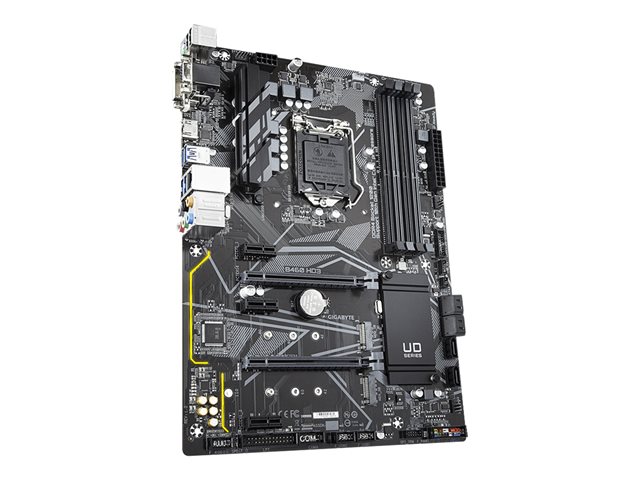

Дънна платка GIGABYTE B460 HD3 LGA 1200 DDR4 2xM.2 6xSATA DVI-D HDMI ATX MB B460 HD3
изчерпано
Сокет: LGA 1200
Чипсет: Intel B460
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel B460 |
| Сокет | LGA 1200 |
| Съвместими процесори |
Pentium Celeron Core i5 Core i3 Core i7 Core i9 (supports 10th Generation Intel Core / Pentium / Celeron) |
| BIOS |
WfM 2.0 support UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 1 x M.2 PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC1220 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

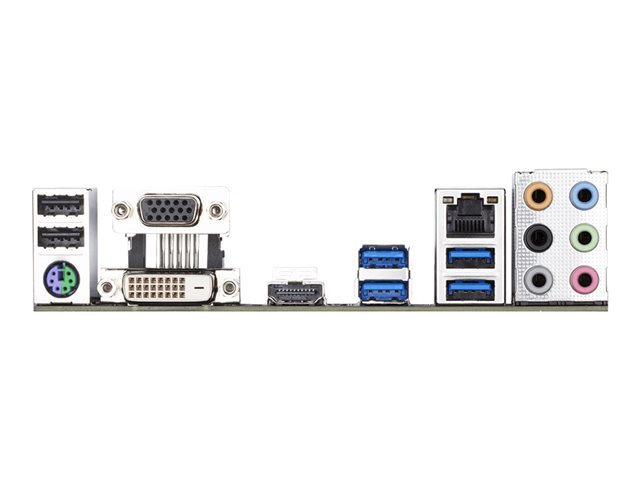

| Портове | 1 x HDMI 1 x DVI-D 1 x VGA 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 2 x USB 2.0 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 4 x USB 3.2 Gen 1 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x4 mode) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x SPDIF out - header 2 x Thunderbolt - header 1 x serial - header 1 x parallel - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security @BIOS EasyTune Xpress Install GIGABYTE App Center GIGABYTE Fast Boot GIGABYTE Smart Backup Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection |
| Стандарти | Plug and Play, HDCP 2.3 |
| Ширина | 30.5 cm |
| Дълбочина | 22.5 cm |
| Други характеристики |
Q-Flash On/Off Charge AMD CrossFireX technology support AMD Quad CrossFireX technology support 4+2 Phase Power Design ESD Protection Audio Noise Guard with Path Lighting GIGABYTE Ambient LED Game Boost GIGABYTE Double Locking Bracket Anti-Sulfur Design Intel Optane Memory Ready GIGABYTE Smart Fan 5 Solid Pin Power Connectors |
| Гаранция | 36 месеца |
| Код на продукта | B460 HD3 |
Виж повече
Допълнителна информация
- Hybrid digital VRM with low RDS(on) MOSFET
GIGABYTE motherboards use low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance. - Dual NVMe PCIe M.2 slots
GIGABYTE motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help to deliver high-resolution and high-fidelity audio to provide realistic sound effects for gamers. - Audio noise guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. - High-speed Gigabit LAN with automatic bandwidth allocation
High-speed Gigabit 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure high network priority of the game or application. It can provide users with comprehensive features, as well as fast and smooth Internet experience. - Advanced LAN static-electricity and surge protection
GIGABYTE motherboards use ICs with more ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. - Smart Fan 5 technology
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Silent performance
Achieve fan silence with Fan Stop technology - map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature - all of it can be customized to your liking. - Hybrid fan pin headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the hybrid fan pin headers or external thermistor sensors - giving you absolute mastery over your PC.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
