Дънна платка GIGABYTE B460M AORUS PRO LGA 1200 DDR4 2xM.2 6xSATA DP HDMI mATX MB B460M AORUS PRO
изчерпано
Сокет: LGA 1200
Чипсет: Intel B460
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2933 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel B460 |
| Сокет | LGA 1200 |
| Съвместими процесори |
Pentium Celeron Core i5 Core i3 Core i7 Core i9 (supports 10th Generation Intel Core / Pentium / Celeron) |
| BIOS |
WfM 2.0 support UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Честота на паметта | 2933 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 1 x M.2 PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC1200 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

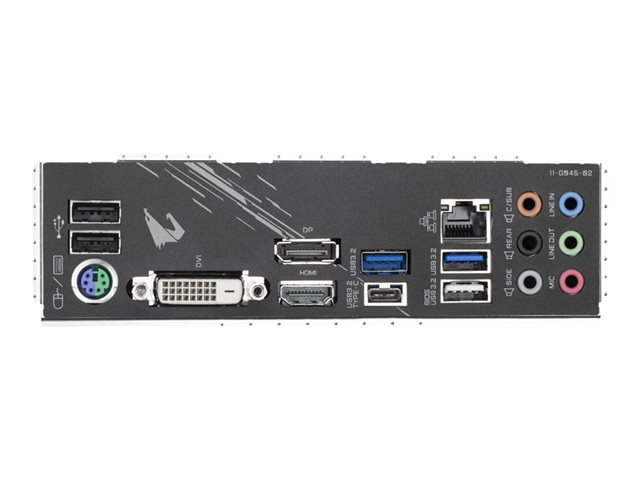

| Портове | 1 x HDMI 1 x DVI-D 1 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 2 x USB 2.0 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x PS/2 keyboard / mouse 1 x audio line-out (center/subwoofer) - mini-jack 3 x USB 3.2 Gen 1 1 x USB-C Gen1 1 x audio line-out (rear) - mini-jack 1 x audio line-out (side surround) - mini-jack |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (Key E) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x Thunderbolt - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security @BIOS EasyTune Xpress Install cFosSpeed GIGABYTE Fast Boot GIGABYTE Smart Backup |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection |
| Стандарти | Plug and Play, DisplayPort 1.4 |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash On/Off Charge Ultra Durable 4+2 Phase Power Design GIGABYTE AMP-UP Audio Audio Noise Guard with Path Lighting Q-Flash Plus Game Boost GIGABYTE Double Locking Bracket Intel Optane Memory Ready GIGABYTE Smart Fan 5 Ultra Durable PCIe Armor M.2 Thermal Guard pre-mounted I/O shield Solid Pin Power Connectors RGB FUSION 2.0 |
| Гаранция | 36 месеца |
| Код на продукта | B460M AORUS PRO |
Виж повече
Допълнителна информация
- 4+2 Hybrid Digital VRM solution with Low RDS (on) MOSFET
GIGABYTE 400 series motherboard uses a 4+2 Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the Intel Core CPU by offering incredible precision in delivering power to the motherboard's power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - Single 32GB support
The memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channels, total memory capacity is 128GB, which was only available on High-End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth for memory-intensive applications such as rendering and video editing. - Dual PCIe Gen3 x4 M.2
AORUS Gaming motherboard is focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - GIGABYTE ultra-efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers - giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be a fan or pump with different PWM or Voltage mode. - The universal connector
The USB Type-C is a reversible connector that is loaded with useful features such as USB 3.2 Gen1 support and faster-charging capabilities. - High-quality onboard audio design
Delivers high-quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers. - Multi-zone light show design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. - Ultra Durable PCIe armor
GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, GIGABYTE uses excellent components for the B460 AORUS motherboard and reinforces every slot to make each of them solid and durable. The one-piece stainless-steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
