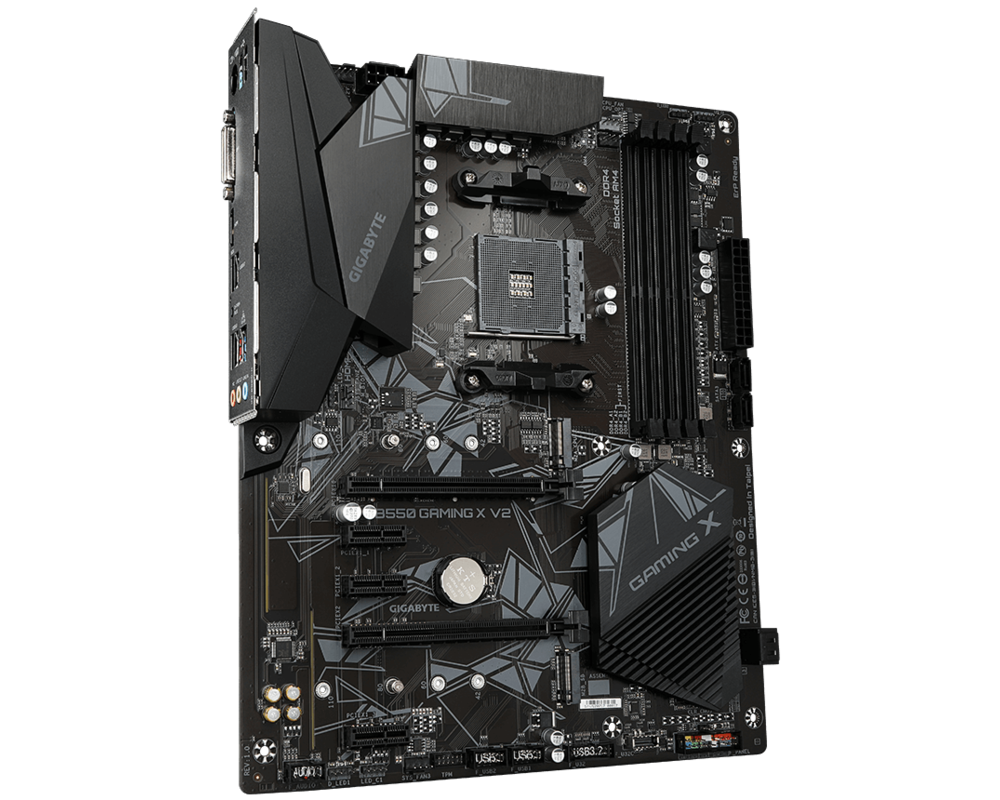

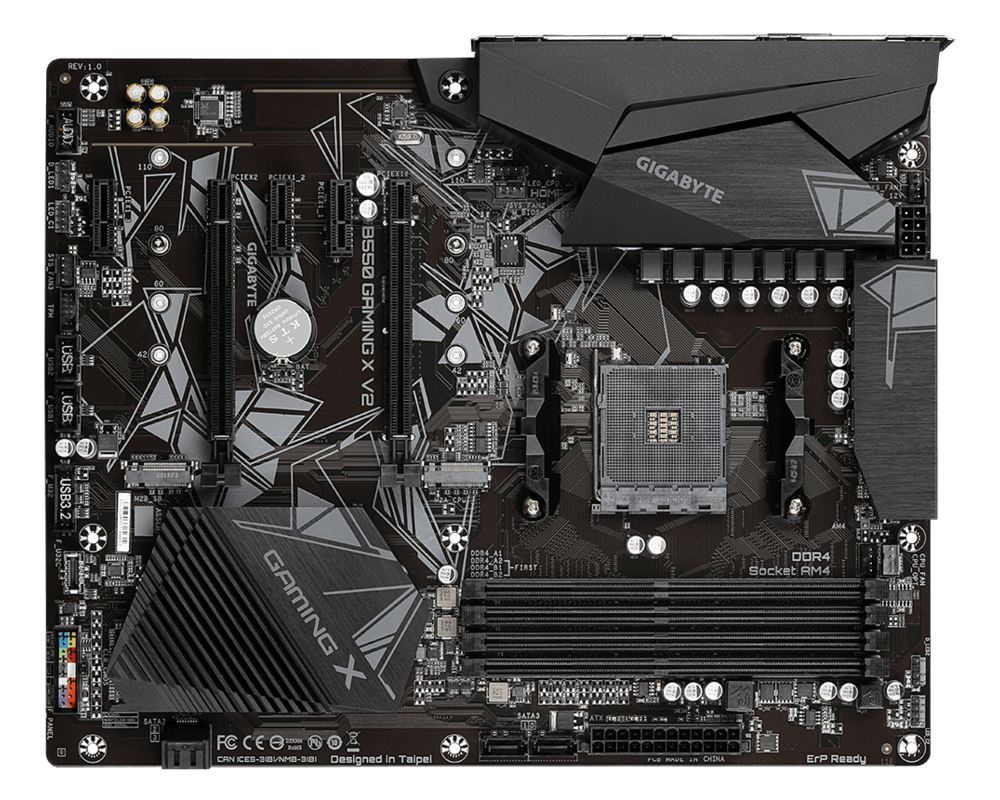

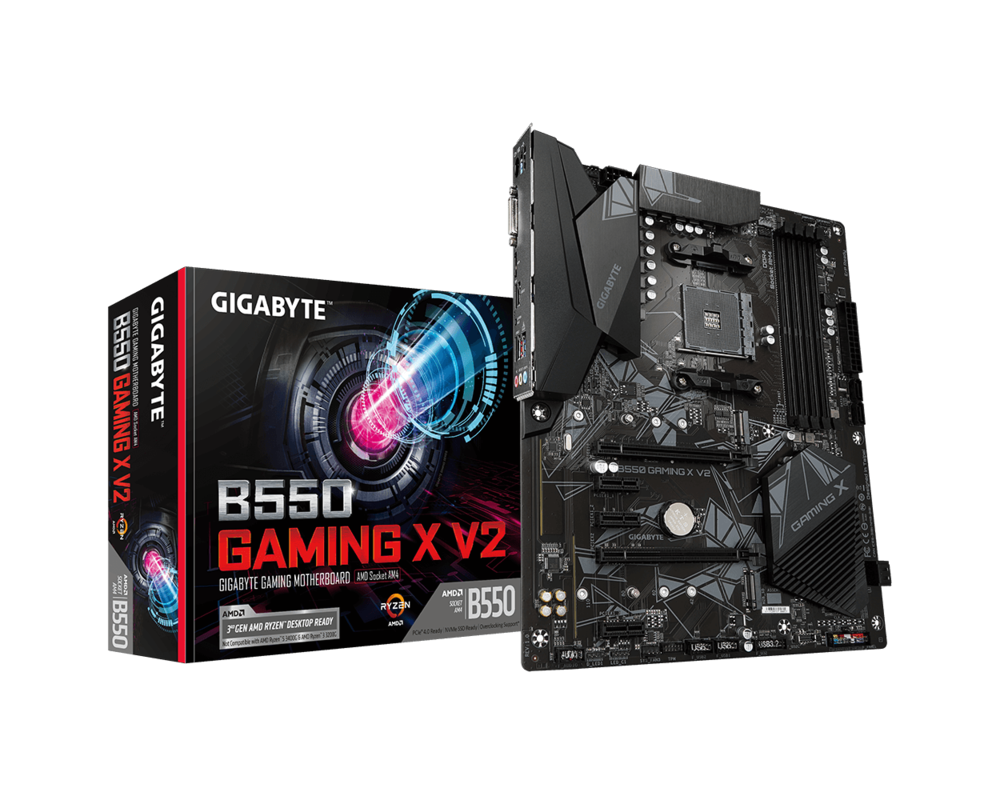

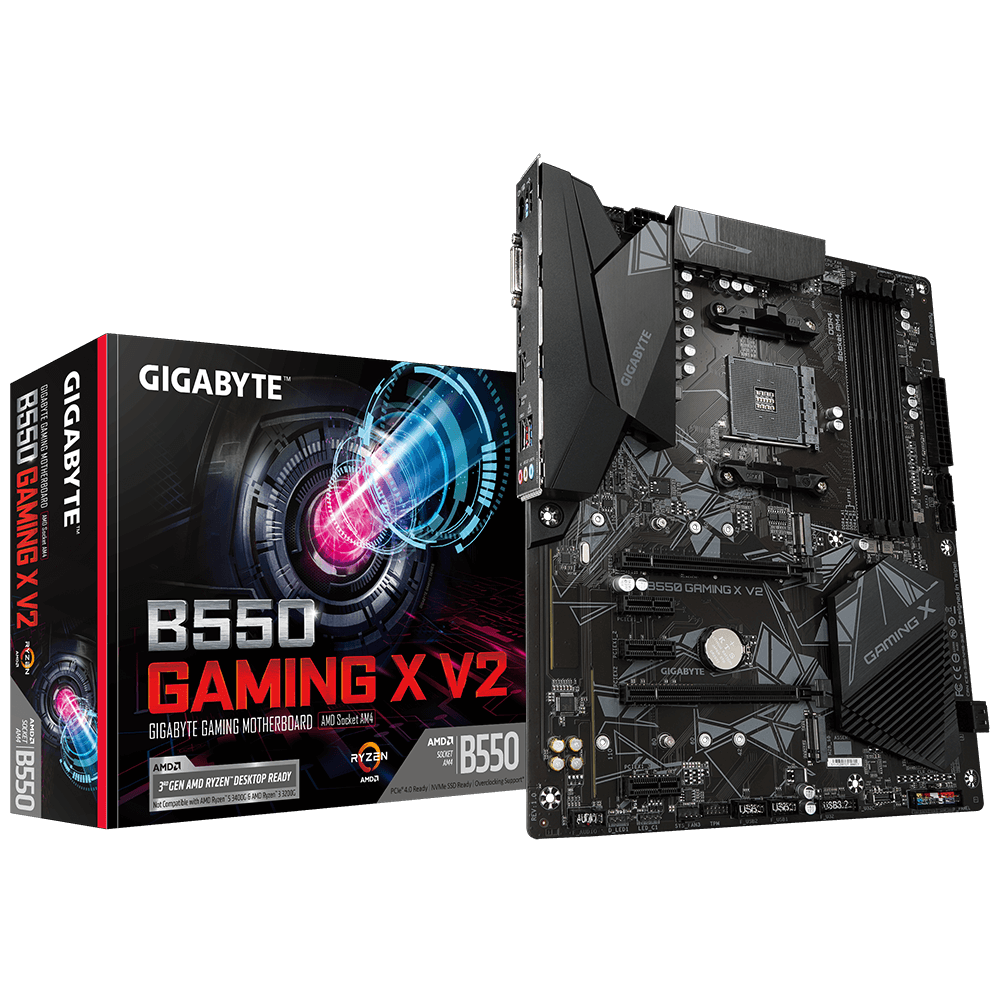

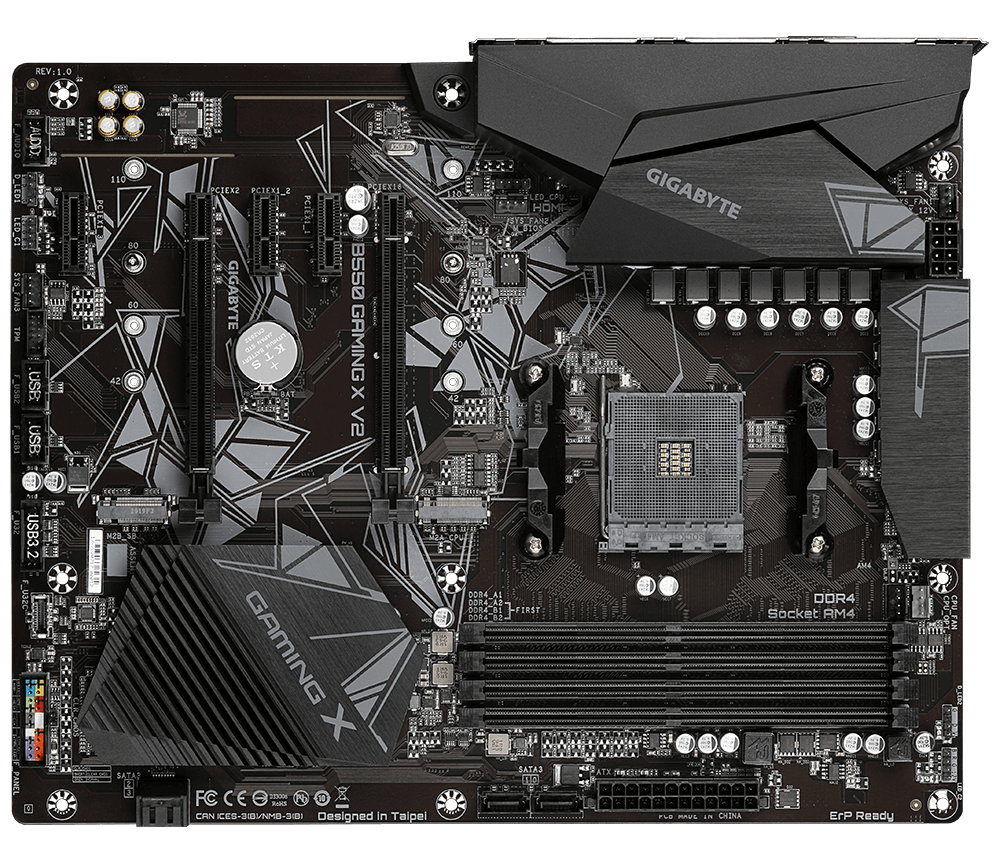

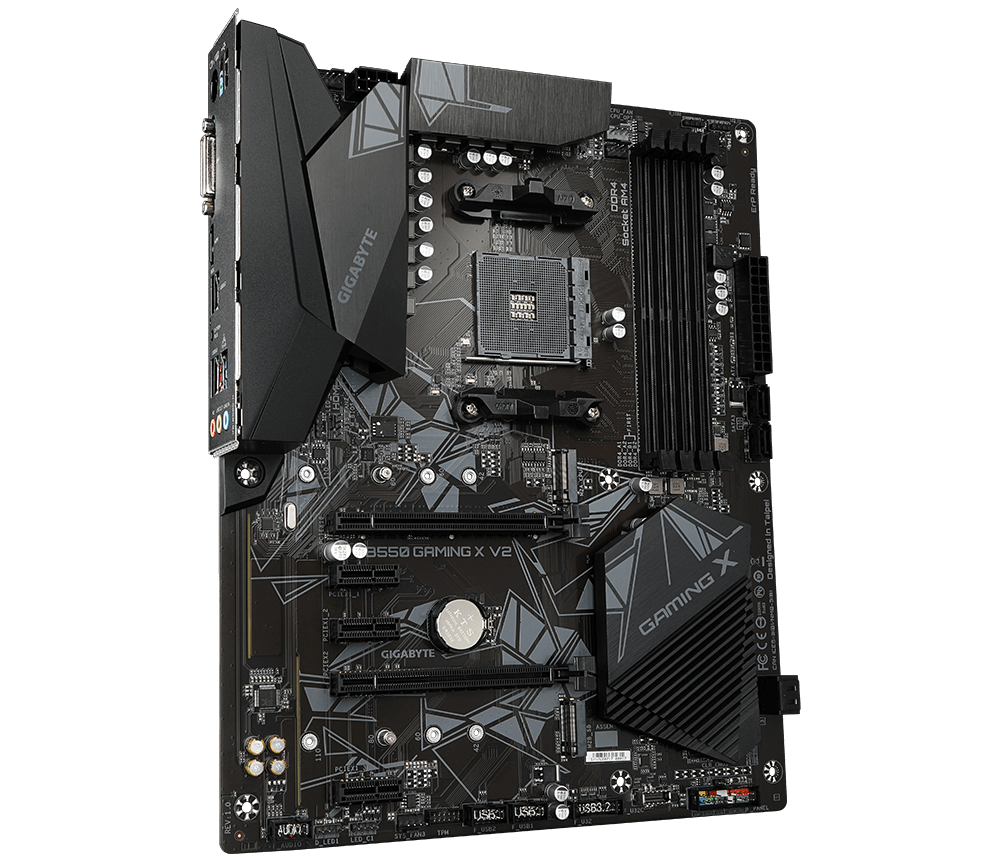

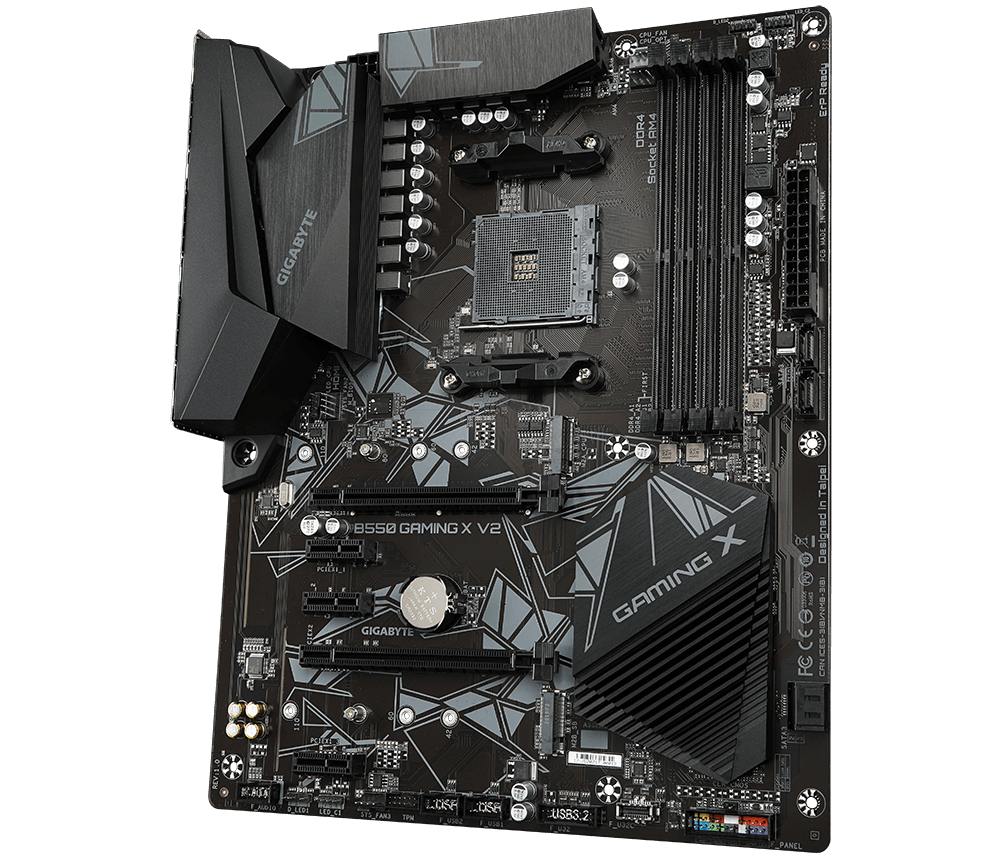

Дънна платка GIGABYTE B550 GAMINGxV2 AM4 DDR4 2xM.2 4xSATA HDMI ATX MB B550-GAMING-X-V2
изчерпано
Сокет: Socket AM4
Чипсет: AMD B550
Тип на паметта: DDR4
Физически размер: ATX
Честота на паметта: 2400 MHz, 2133 MHz, 2667 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD B550 |
| Сокет | Socket AM4 |
| Съвместими процесори | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| BIOS | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Dual channel | Да |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x M.2 |
| SATA | 4 x SATA3 6.0 Gb/s |
| M.2 slot | 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) |
| RAID | 0,1,10 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

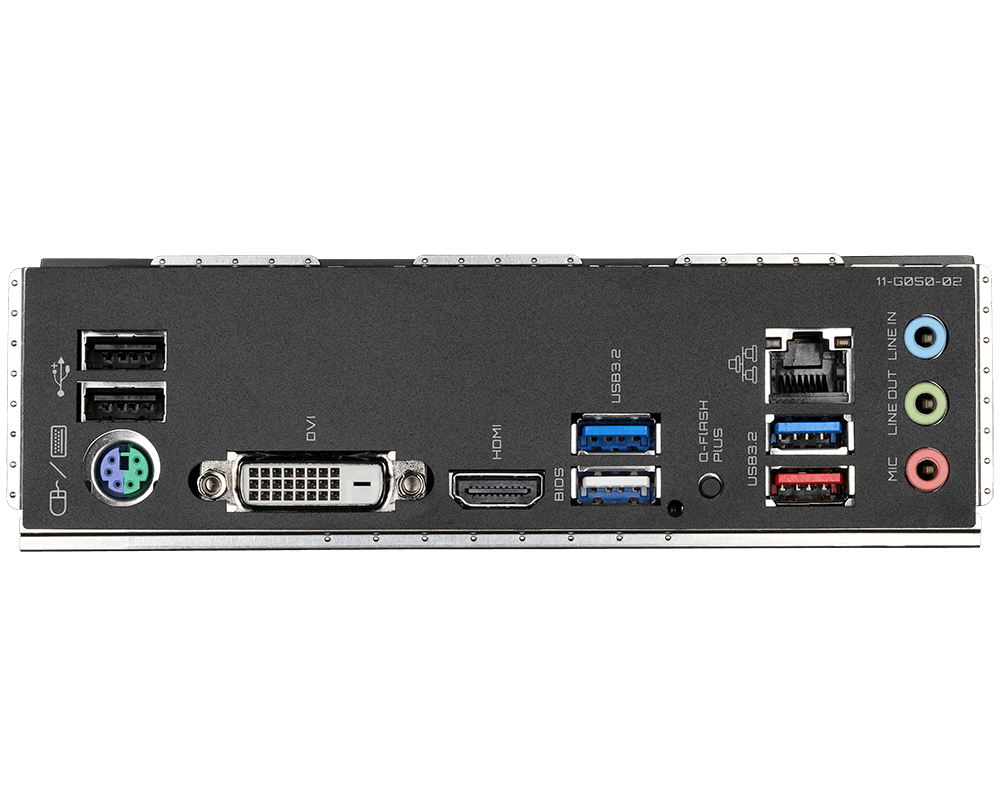

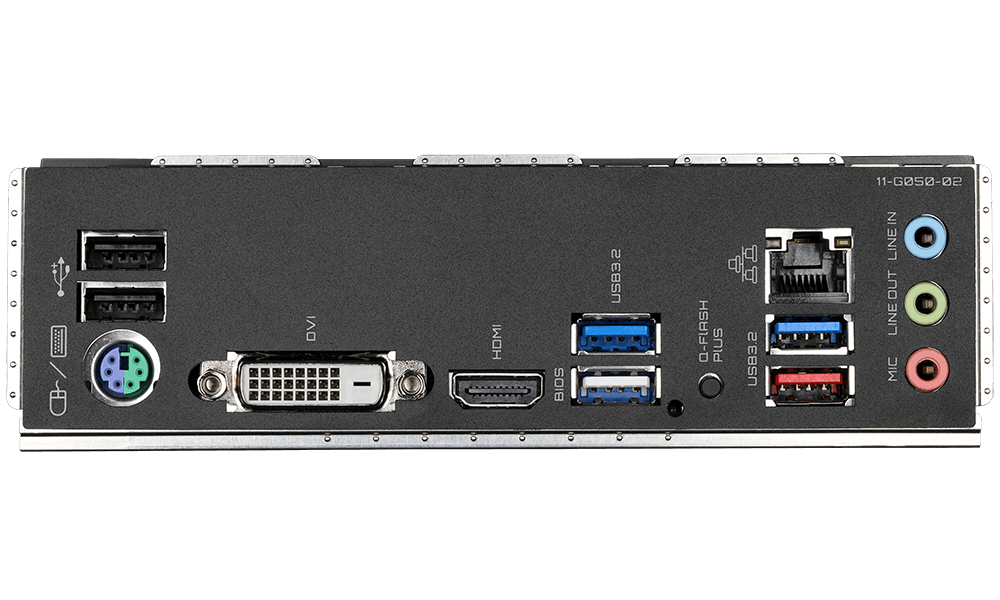

| Портове | 1 x LAN (Gigabit Ethernet), 1 x USB 3.2 Gen 2, 1 x audio line-in - mini-jack, 1 x audio line-out - mini-jack, 1 x microphone - mini-jack, 1 x HDMI, 1 x DVI-D, 2 x USB 2.0, 3 x USB 3.2 Gen 1, 1 x PS/2 keyboard / mouse |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)), 1 x PCIe 3.0 x16 (x2 mode), 3 x PCIe 3.0 x1 |
| PCIe x1 | 2 |
| PCIe x16 | 2 x PCIe 4.0/3.0 x16 |
| Вътрешен интерфейс | 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x USB-C Gen 1 - header, 1 x audio - header |
| Функции | Dual channel memory architecture, supported ECC modules operate in non-ECC mode |
| Софтуер | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Стандарти | Plug and Play, HDCP 2.3 |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, 10+3 Phase Power Design, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0 |
| Гаранция | 36 месеца |
| Код на продукта | B550-GAMING-X-V2 |
Виж повече
Допълнителна информация
- 10+3 phases Digital Twin Power Design
The B550 motherboard use a 10+3 phases Digital Twin Power Design with Low RDS(on) MOSFETs to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - USB Type-C front panel connector
Equipped with next-generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device. - High-speed Gigabit LAN with automatic bandwidth allocation
The Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - RGB Fusion 2.0
With B550 motherboards, RGB Fusion 2.0 is even better with addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the addressable LED support. With external addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. - Sulfurization protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
