Дънна платка GIGABYTE B560I AORUS PRO AX LGA 1200 DDR4 4xSATA 1xM.2 WiFI mini ITX MB B560I AORUS PRO AX
изчерпано
Сокет: LGA 1200
Чипсет: Intel B560
Тип на паметта: DDR4
Физически размер: Mini-ITX
Слотове за памет: 2
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Mini-ITX |
| Чипсет | Intel B560 |
| Сокет | LGA 1200 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 Core i9 (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA SATA-600 / PCIe -connectors: 1 x M.2 PCIe 4.0 -connectors: 1 x M.2 |
| LAN порт | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

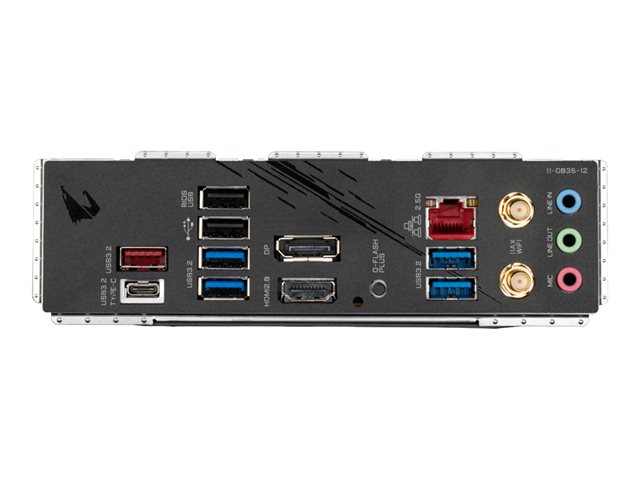

| Портове | 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x HDMI 4 x USB 3.2 Gen 1 1 x USB-C Gen1 1 x USB 3.2 Gen 2 1 x DisplayPort 2 x USB 2.0 |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) |
| Вътрешен интерфейс | 2 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x speaker - header 1 x USB-C Gen 1 - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Xpress Install GIGABYTE App Center cFosSpeed GIGABYTE Fast Boot GIGABYTE Smart Backup |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage fan fail warning |
| Ширина | 17 cm |
| Дълбочина | 17 cm |
| Други характеристики |
Intel Optane Memory Ready
Game Boost On/Off Charge RGB FUSION 2.0 Q-Flash Plus Q-Flash 8+1 Phase Power Design Solid Pin Power Connectors GIGABYTE Smart Fan 6 pre-mounted I/O shield Ultra Durable PCIe Armor |
| Гаранция | 36 месеца |
| Код на продукта | B560I AORUS PRO AX |
Виж повече
Допълнителна информация
- Great choice for small but powerful PC
B560I AORUS PRO AX is a mini-ITX motherboard, perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics and size. The compact yet powerful PC delivers amazing performance with a powerful CPU, ultra-durable graphics card slot and blazing-fast connectivity. It is also equipped with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size. - Design solution with Dr.MOS
B560I AORUS PRO AX motherboard uses an pure digital CPU power design which includes a digital PWM controller and is capable of providing 50A of power from each phase for a total of 400A. This digital controller, polymer capacitors array, and solid-pin CPU power connectors offer incredible precision and stability in delivering power to the motherboard's power-hungry and energy-sensitive components, allowing professional worker and gamer to get the incredible high performance from a powerful processors. - Improved transient response
By using VRM design and polymer capacitor array, Z590 AORUS motherboard transient response and stability is highly improved under overclocking and heavy loading condition. - Shielded memory routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. - Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. - High current support
Each fan headers support PWM and DC fan and water cooling pump, and over-current protection. - High-quality onboard audio design
Delivers high-quality sound resolution and sound expansion to create realistic sound effects for professional gamers. - Ultra-durable
GIGABYTE is reputable for its product durability and high-quality manufacturing process. Needless to say, great components are used for the B560 AORUS motherboard and is reinforced every slot to make each of them solid and durable. - Solid pin power connectors
AORUS motherboards feature solid-plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading.
