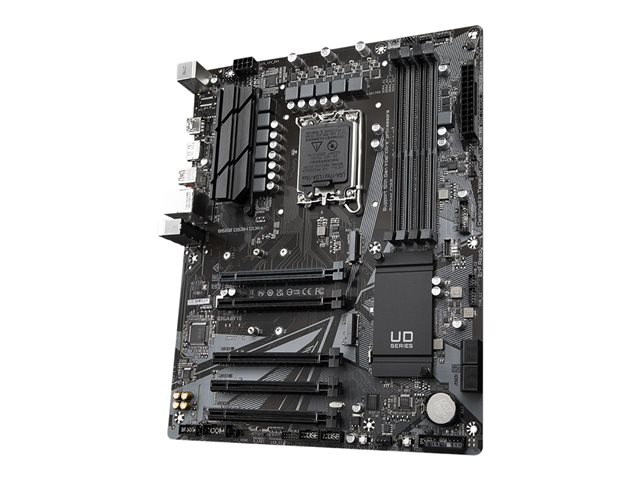

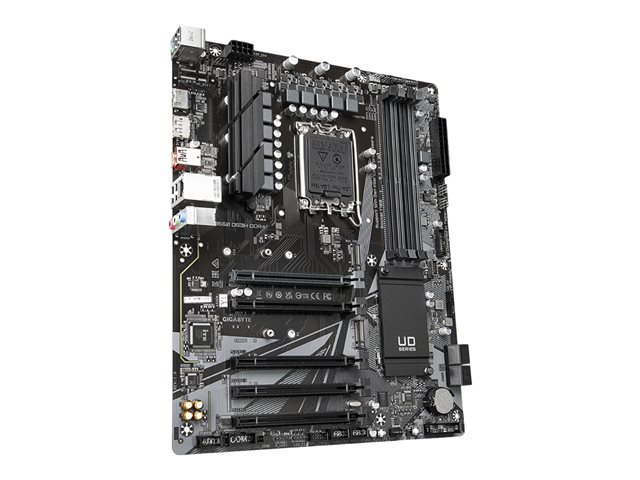

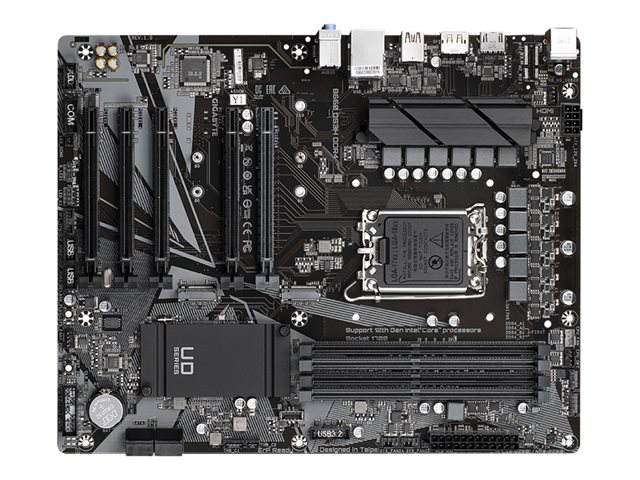

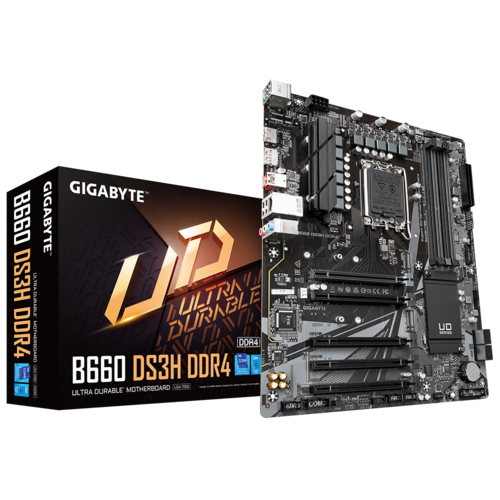

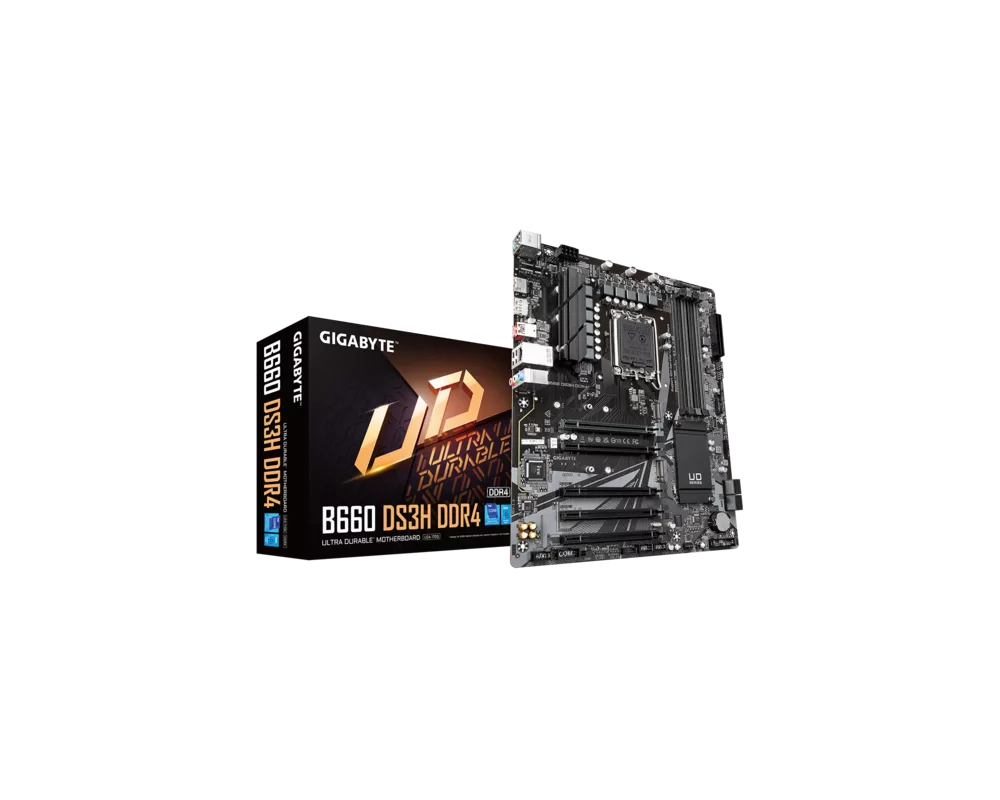

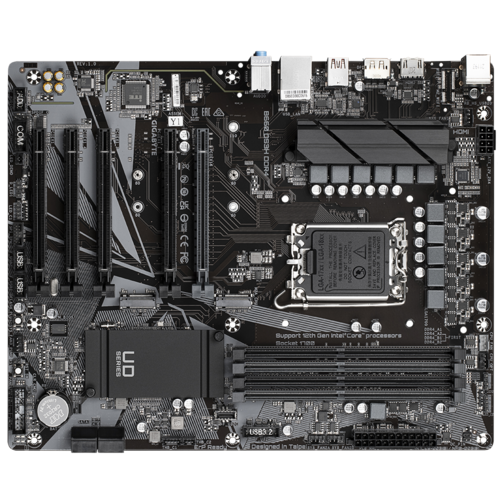

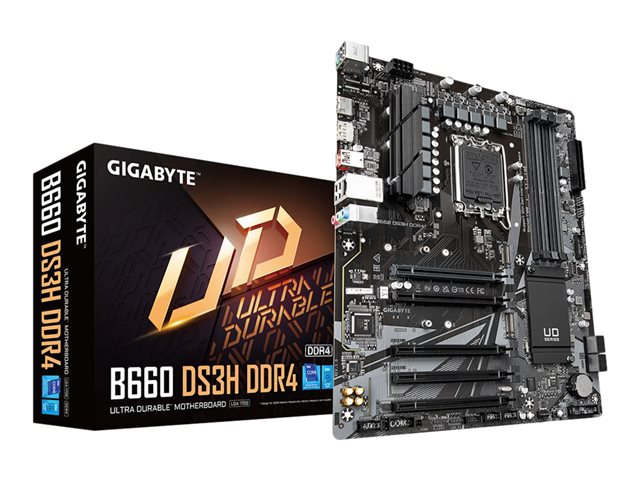

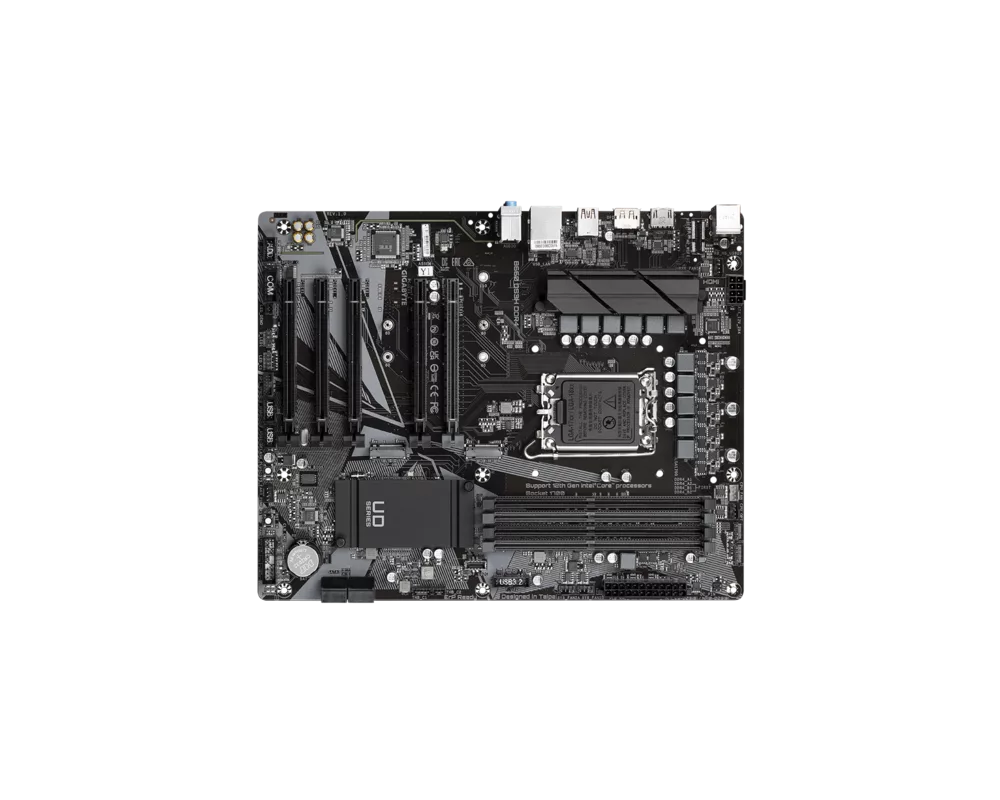

Дънна платка GIGABYTE B660 DS3H DDR4 LGA 1700 B660 DS3H DDR4
изчерпано
Сокет: LGA 1700
Чипсет: Intel® B660
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel® B660 |
| Сокет | LGA 1700 |
| Съвместими процесори | LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors;L3 cache varies with CPU |
| BIOS | 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16); For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 4.0 standard.); 4 x PCI Express x16 slots, running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5); (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Брой процесорни гнезда | 1 |
| Видео | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version and HDCP 2.3.; Support native HDMI 2.1 TMDS compatible ports.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; Support for DisplayPort 1.2 version and HDCP 2.3 |
| Дисков интерфейс | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, and RAID 10; Intel® Optane™ Memory Ready |
| LAN порт | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Звук | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |
| Портове | 1 x PS/2 keyboard/mouse port; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 2.0/1.1 ports; 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 3 x audio jacks |
| Разширителни слотове | 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16, 4 x PCIe 3.0 x16 (x1 mode) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt - header 1 x USB-C Gen 1 - header 1 x serial - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, fan fail warning |
| Стандарти | Plug and Play, DisplayPort 1.2, HDCP 2.3 |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики | Q-Flash, HDCP compliant, On/Off Charge, Ultra Durable, Q-Flash Plus, Game Boost, Audio Noise Guard, Intel Optane Memory Ready, Solid Pin Power Connectors, RGB FUSION 2.0, 8+2+1 Phase Power Design, GIGABYTE Smart Fan 6 |
| Гаранция | 36 месеца |
| Код на продукта | B660 DS3H DDR4 |
Виж повече
Допълнителна информация
- Support for DDR4 XMP up to 5333MHz and beyond
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard. - PCIe 4.0 design
GIGABYTE B660 motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance. - Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. - High-speed Gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - RGB Fusion 2.0
B660 motherboards feature RGB Fusion 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
