Дънна платка GIGABYTE H370M DS3H LGA1151v2 Socket 4x DDR4 3x PCI-E D-Sub DVI HDMI M.2 Slot uATX H370M DS3H
изчерпано
Сокет: LGA 1151
Чипсет: Intel H370
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 4
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel H370 |
| Сокет | LGA 1151 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe -connectors: 1 x M.2, PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

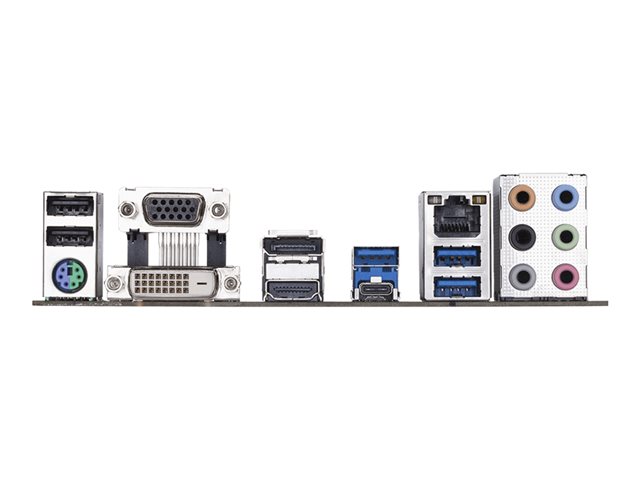

| Портове | 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x DVI-D 3 x USB 3.1 Gen 1 2 x USB 2.0 1 x PS/2 keyboard / mouse 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out (side surround) - mini-jack 1 x USB 3.1 Gen 1 1 x VGA 1 x 1 x DisplayPort |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Вътрешен интерфейс |
4 x USB 2.0 - header
4 x USB 3.1 Gen 1 - header 1 x audio - header 1 x parallel - header 1 x SPDIF out - header 1 x serial - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center cFosSpeed Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart HUD |
| Конектори за захранване | 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection |
| Стандарти | Plug and Play, HDCP 2.2 |
| Ширина | 24.4 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash
AutoGreen On/Off Charge Ultra Durable 4K Ultra HD ready Game Boost Audio Noise Guard GIGABYTE Double Locking Bracket Anti-Sulfur Design Intel Optane Memory Ready GIGABYTE Smart Fan 5 RGB FUSION RGBW LED strips support CEC 2019 Ready |
| Гаранция | 36 месеца |
| Код на продукта | H370M DS3H |
Виж повече
Допълнителна информация
- Dual NVMe PCIe Gen3 M.2 slots
Gigabyte motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - LAN static-electricity & surge protection
Gigabyte motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. Gigabyte motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Achieve fan silence
With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature - all of it can be customized to your liking. - Hybrid fan pin headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the hybrid fan pin headers - giving you absolute mastery over your PC All hybrid fan headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. - 2-way crossfire multi-graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution. - High-end audio capacitors
Gigabyte motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Audio Noise Guard
Gigabyte motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers. - DualBIOS design
Gigabyte Ultra Durable motherboards feature Gigabyte DualBIOS, an exclusive technology from Gigabyte that protects arguably one of your PC's most crucial components, the BIOS. Gigabyte DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process. - Start sulfurization protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design Gigabyte protects Ultra Durable Motherboards.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
Виж повече
Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
