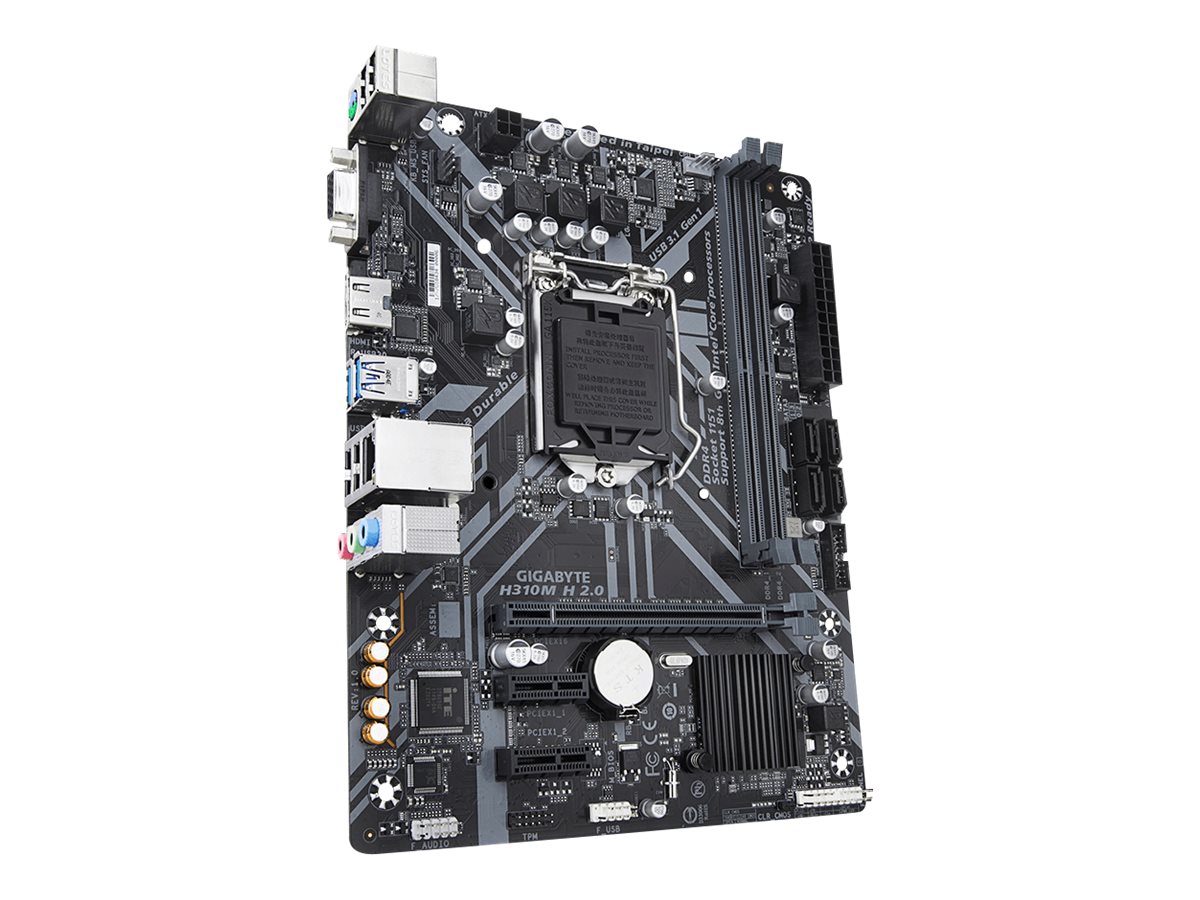

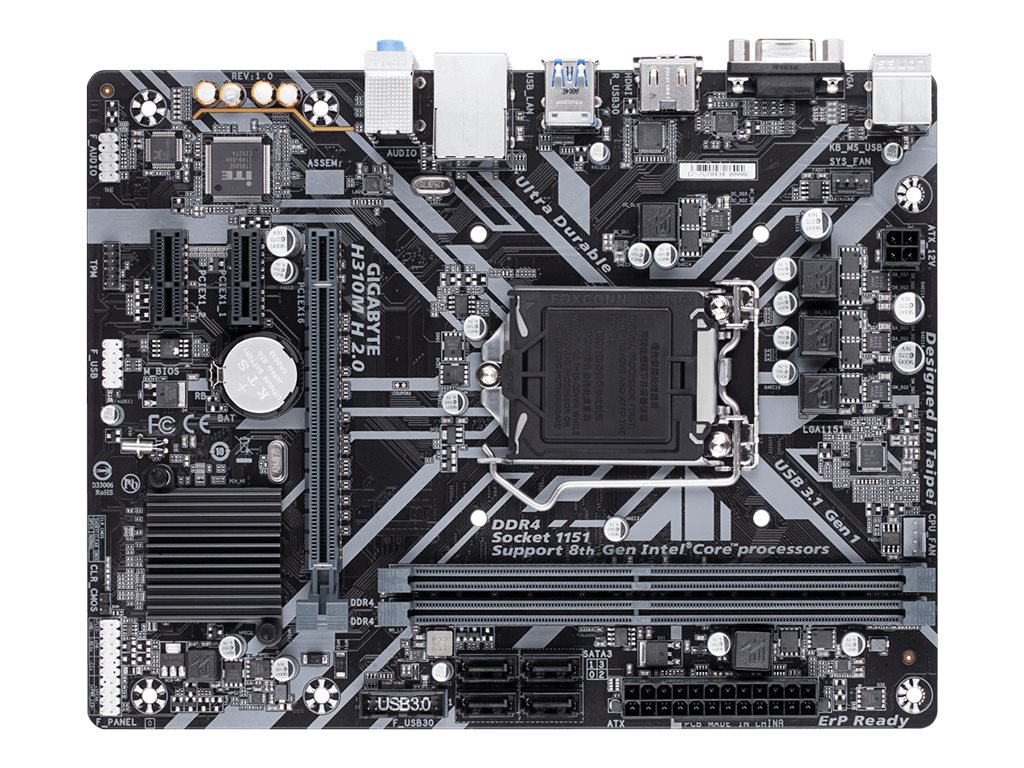

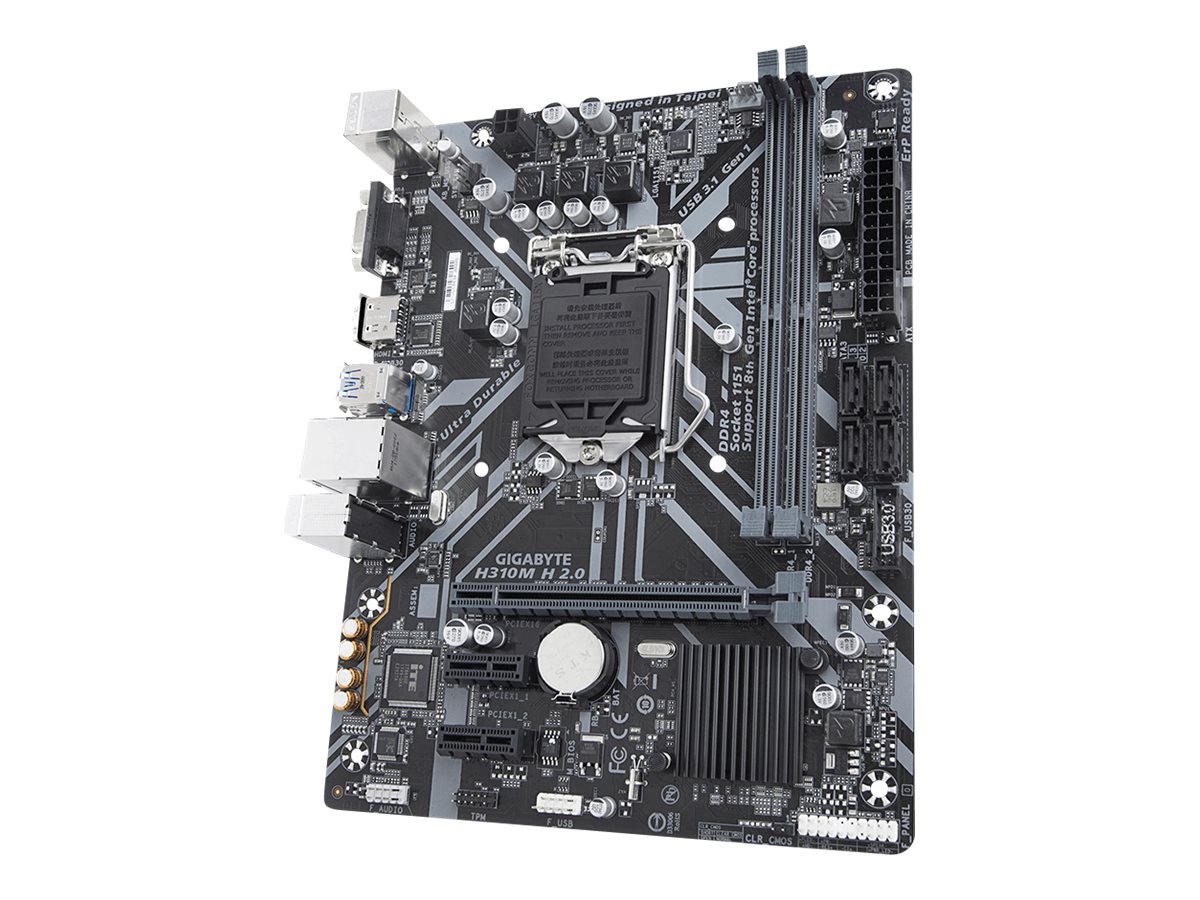

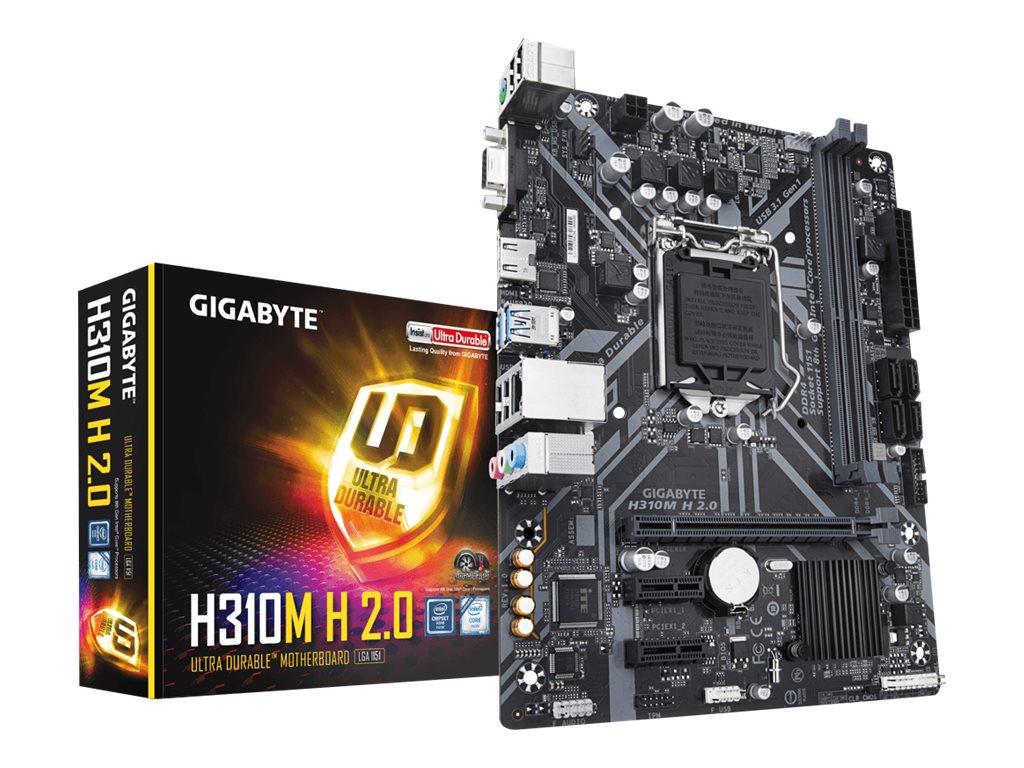

Дънна платка GIGABYTE Mainboard H310M H 2.0 Intel LGA1151 2x DDR4 max. 32GB HDMI D-Sub Realtek ALC887 Realtek GbE LAN 4x SATA mATX H310M H 2.0
изчерпано
Сокет: LGA 1151
Чипсет: Intel H310
Тип на паметта: DDR4
Физически размер: Micro ATX
Слотове за памет: 2
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
2 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | Micro ATX |
| Чипсет | Intel H310 |
| Сокет | LGA 1151 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 2 |
| Максимална памет | 32 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 4 x 7pin Serial ATA |
| LAN порт | Gigabit Ethernet |
| LAN controller | Realtek RTL8118 |
| Звук | Realtek ALC887 |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

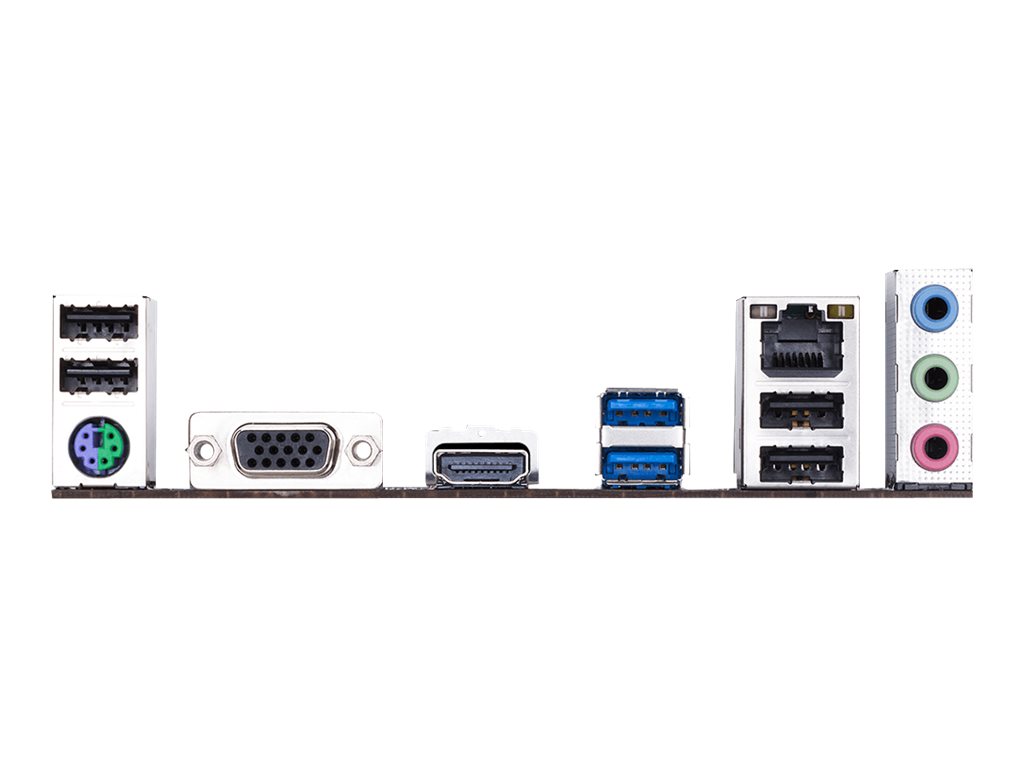

| Портове | 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x VGA 2 x USB 3.1 Gen 1 4 x USB 2.0 1 x PS/2 keyboard / mouse 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack |
| Разширителни слотове | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 2.0 x1 |
| Вътрешен интерфейс | 2 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart HUD Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection |
| Стандарти | HDCP 2.2 |
| Ширина | 22.6 cm |
| Дълбочина | 17.4 cm |
| Други характеристики |
Q-Flash
AutoGreen On/Off Charge Ultra Durable 4K Ultra HD ready Anti-Surge IC Game Boost Audio Noise Guard GIGABYTE Double Locking Bracket Anti-Sulfur Design GIGABYTE Smart Fan 5 Glass Fabric PCB CEC 2019 Ready |
| Гаранция | 36 месеца |
| Код на продукта | H310M H 2.0 |
Виж повече
Допълнителна информация
- High-speed Gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Achieve fan silence
With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature - all of it can be customized to your liking. - Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers - giving you absolute mastery over your PC. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. - Surge protection
GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. - Humidity protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions. - High temperature protection lower RDS(on) MOSFETs design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
