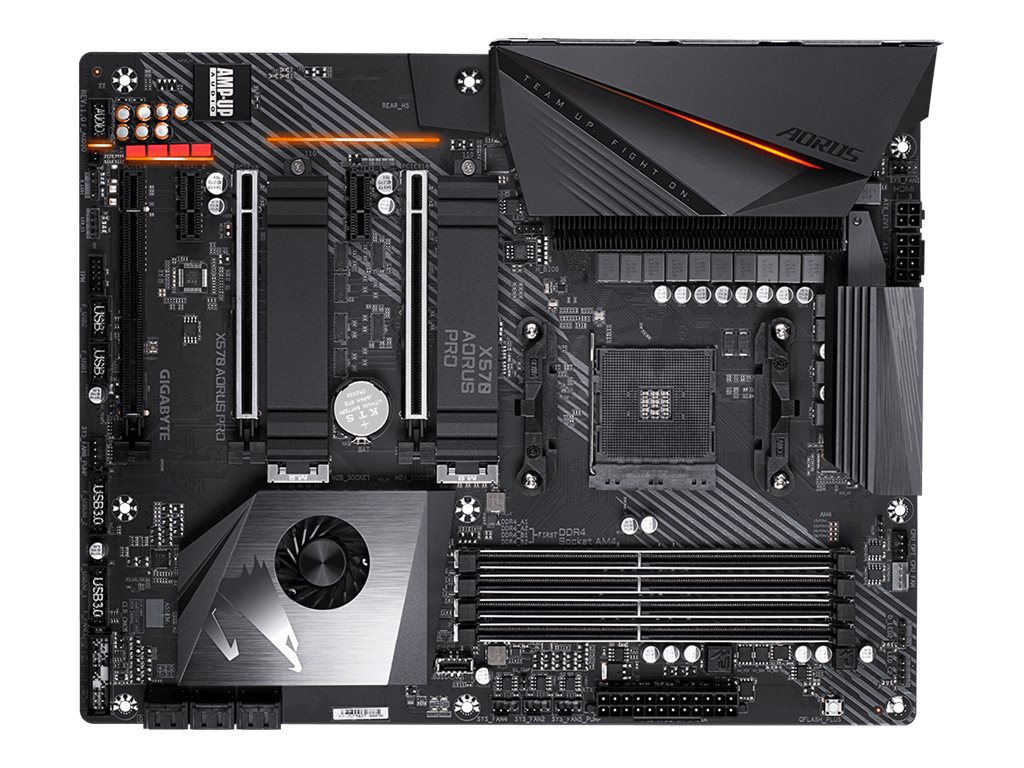

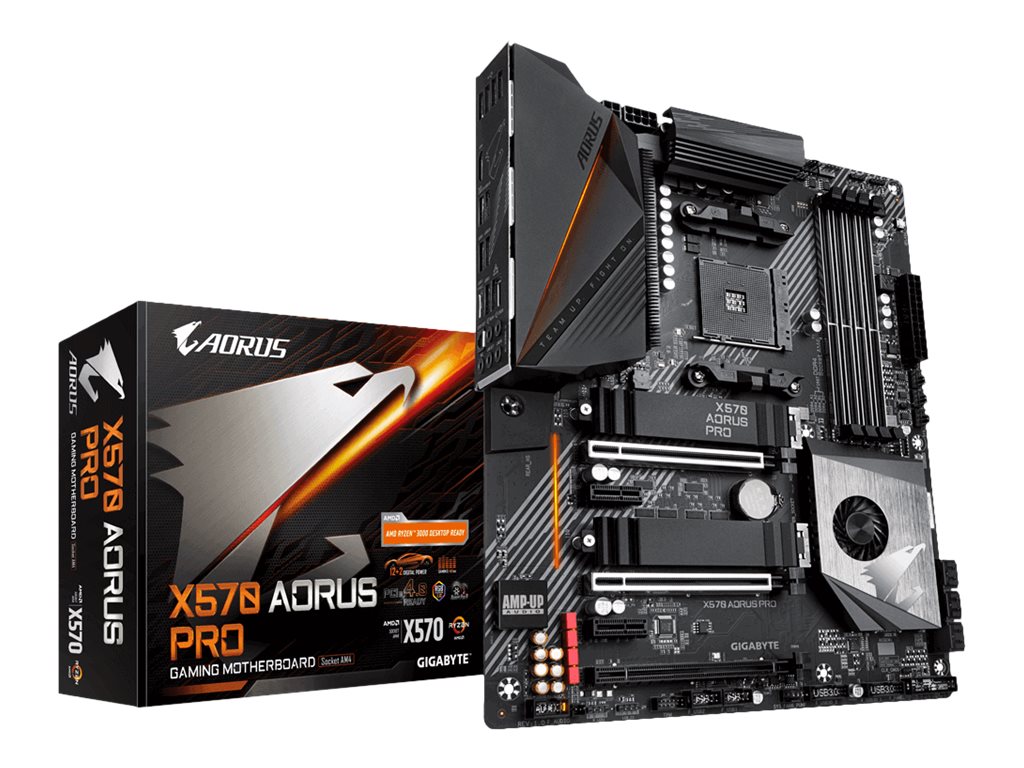

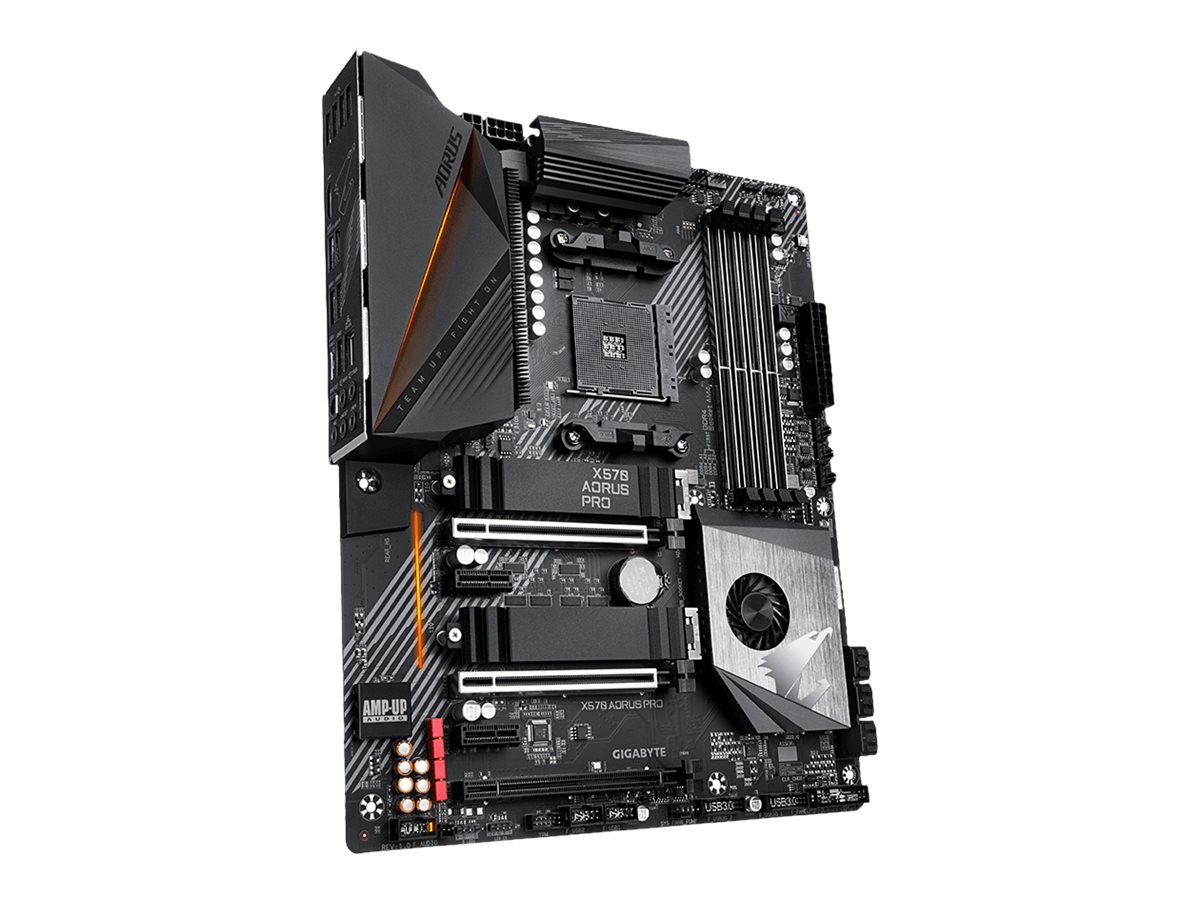

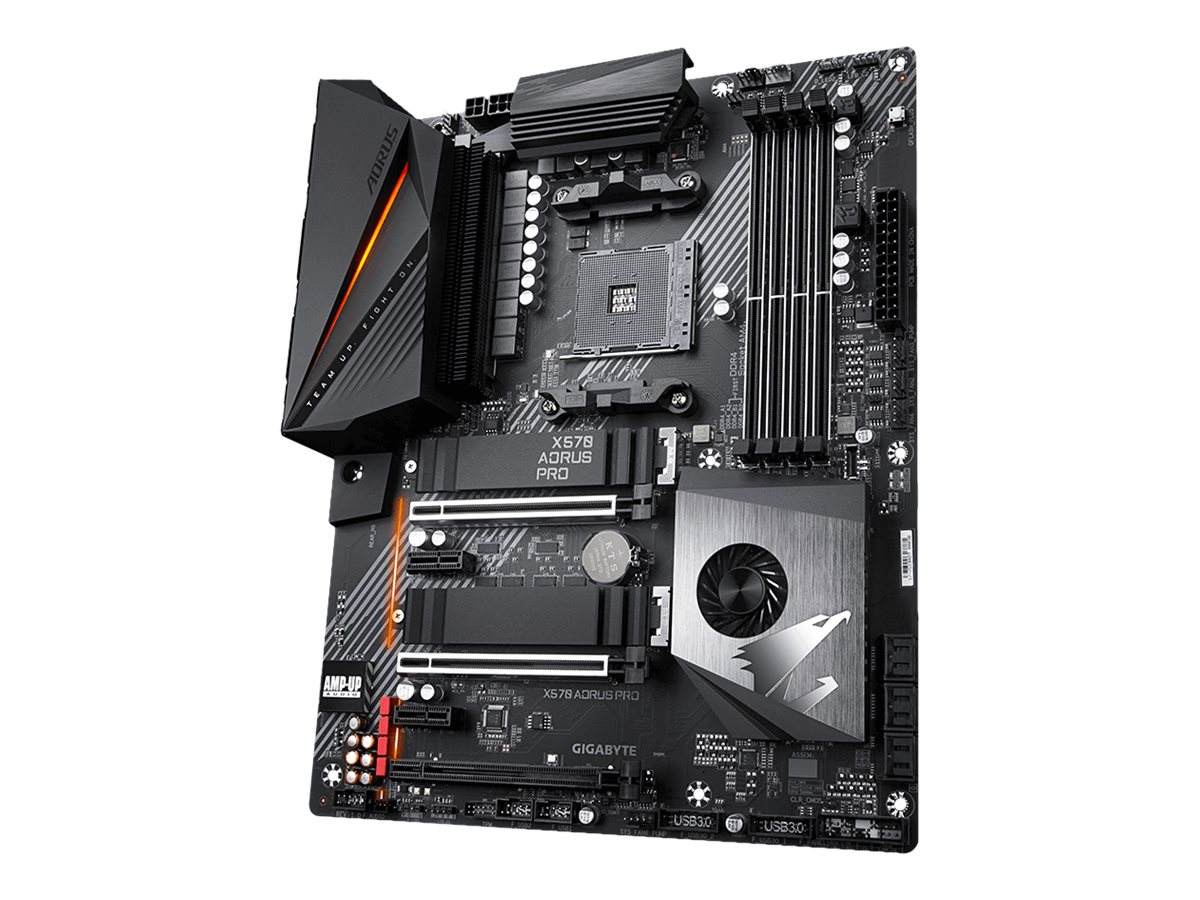

Дънна платка GIGABYTE X570 AORUS PRO AM4 DDR4 6xSATA 2xM.2 X570 AORUS PRO
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звук | Realtek ALC1220-VB |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

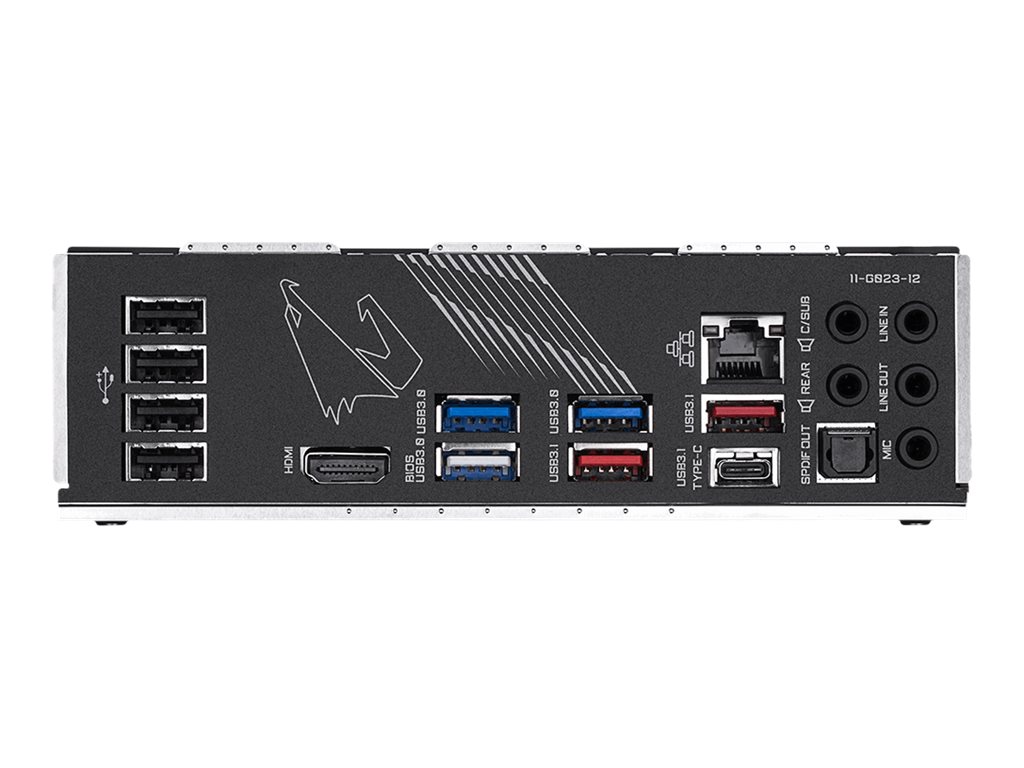

| Портове | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x TOSLINK 3 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x USB-C Gen2 4 x USB 2.0 1 x HDMI |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)) 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x1 |
| Вътрешен интерфейс | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 1 x audio - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center cFosSpeed Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart HUD XSplit Gamecaster (1 year licence) XSplit Broadcaster (1 year licence) GIGABYTE Smart Survey |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage water cooling flow rate |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
12+2 Phase Power Design
AutoGreen NVIDIA Quad SLI Technology Support NVIDIA 2-way SLI Technology Support On/Off Charge AMD CrossFireX technology support AMD Quad CrossFireX technology support Q-Flash Plus GIGABYTE Double Locking Bracket Ultra Durable Memory Armor GIGABYTE Smart Fan 5 Ultra Durable PCIe Armor M.2 Thermal Guard pre-mounted I/O shield Fins-Array Heatsink & Direct Touch Heatpipe AMD StoreMI technology Solid Pin Power Connectors RGB FUSION 2.0 |
| Гаранция | 36 месеца |
| Код на продукта | X570 AORUS PRO |
Виж повече
Допълнителна информация
- 12+2 phases IR digital power design
The X570 AORUS PRO motherboard uses an all IR digital CPU power design which includes both the digital PWM controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A. These 100% digital controller and additional 8+4 solid-pin CPU power connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance. - Advanced thermal design
X570 AORUS PRO reaches a perfect balance between style and performance by combining the media-acclaimed Fins-Array heatsink and Direct Touch heatpipe to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers. - Full PCIe 4.0 design
X570 AORUS pushes the envelope once again by featuring full PCIe 4.0 design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. - High-end WIMA and audio capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Ultra Durable PCIe armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
