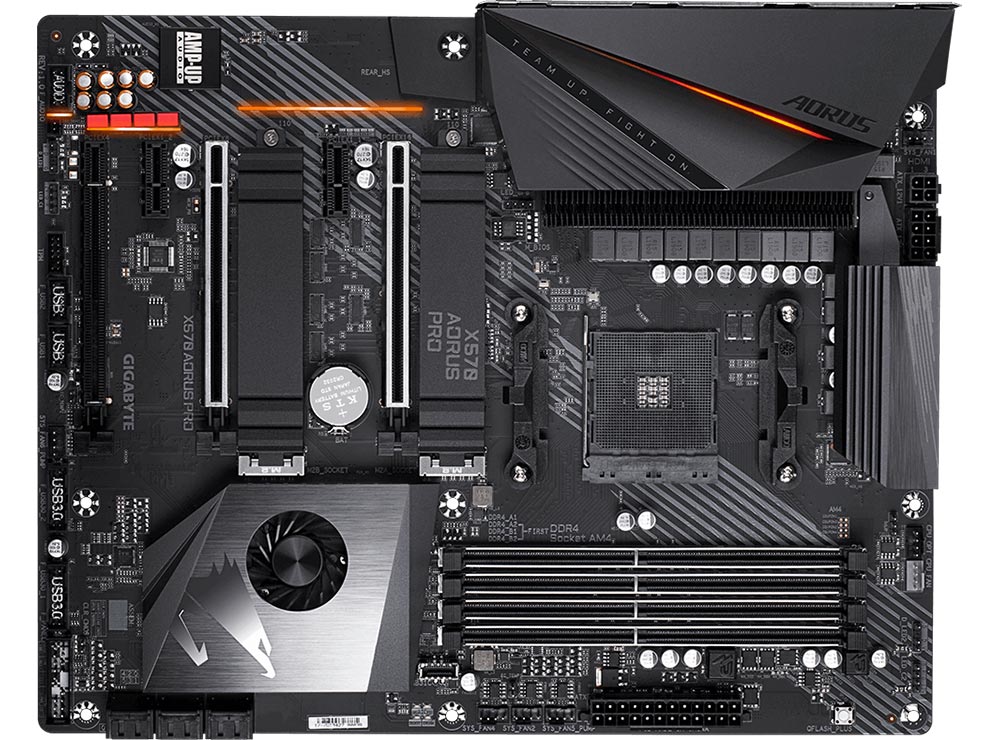

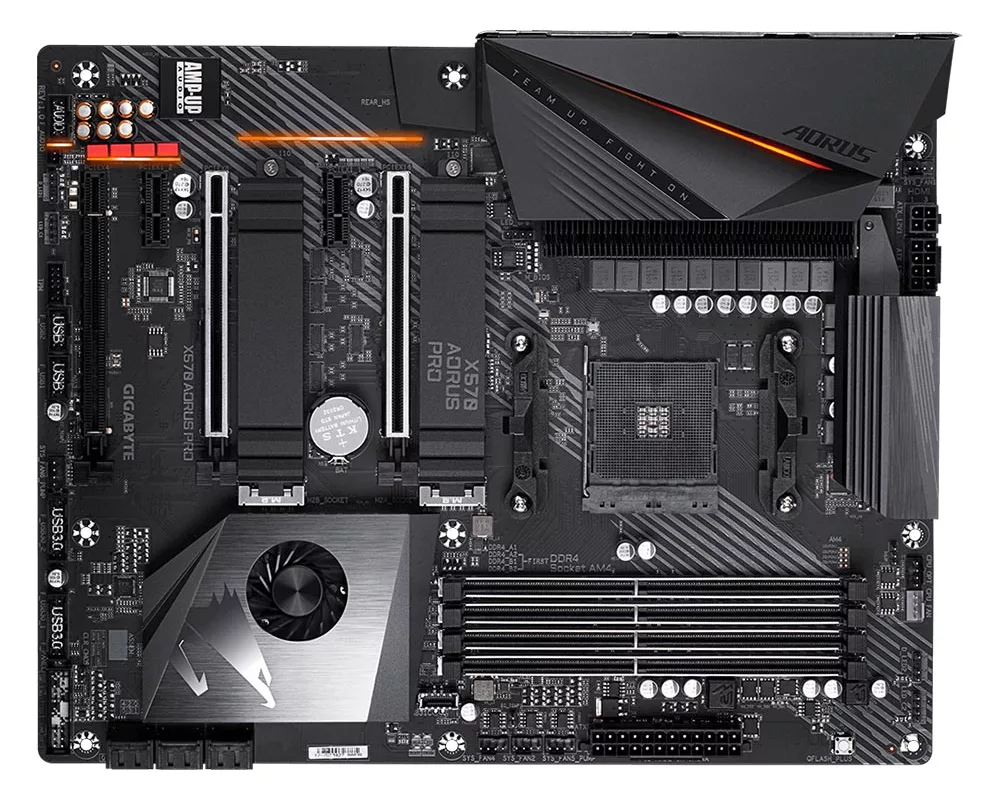

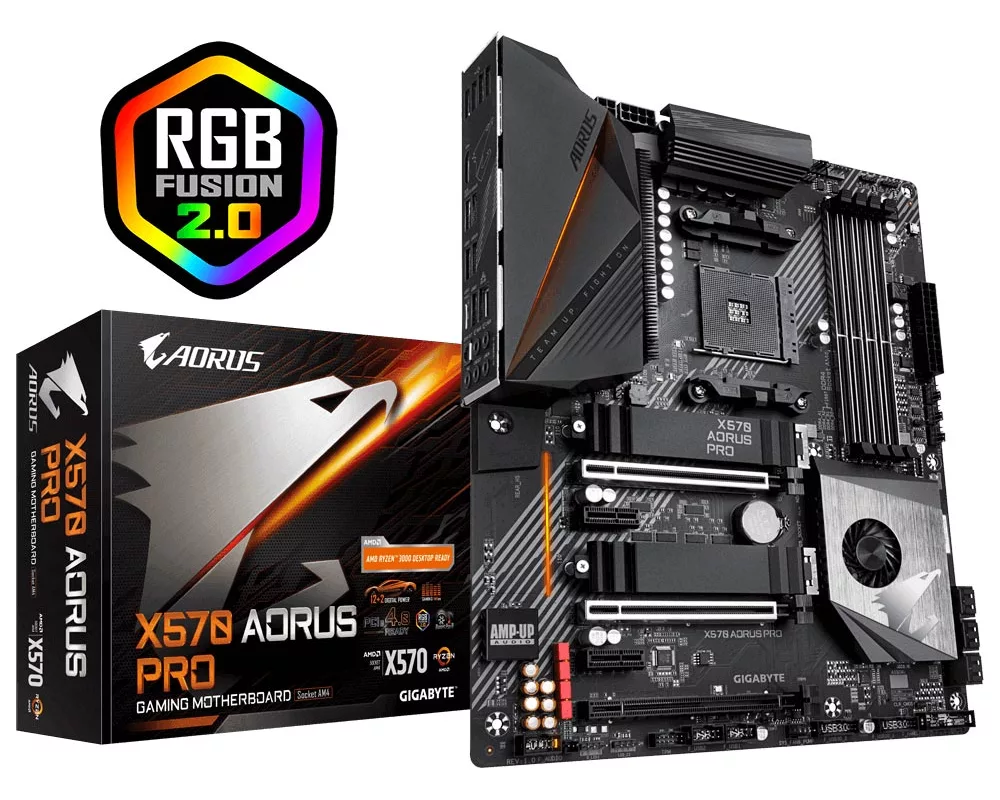

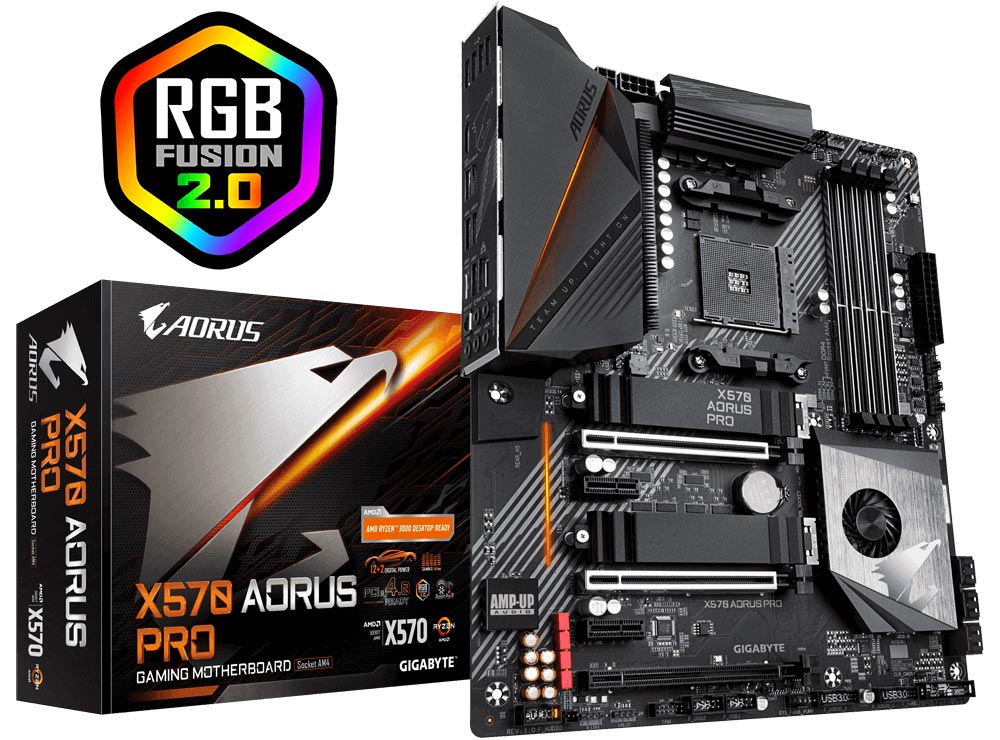

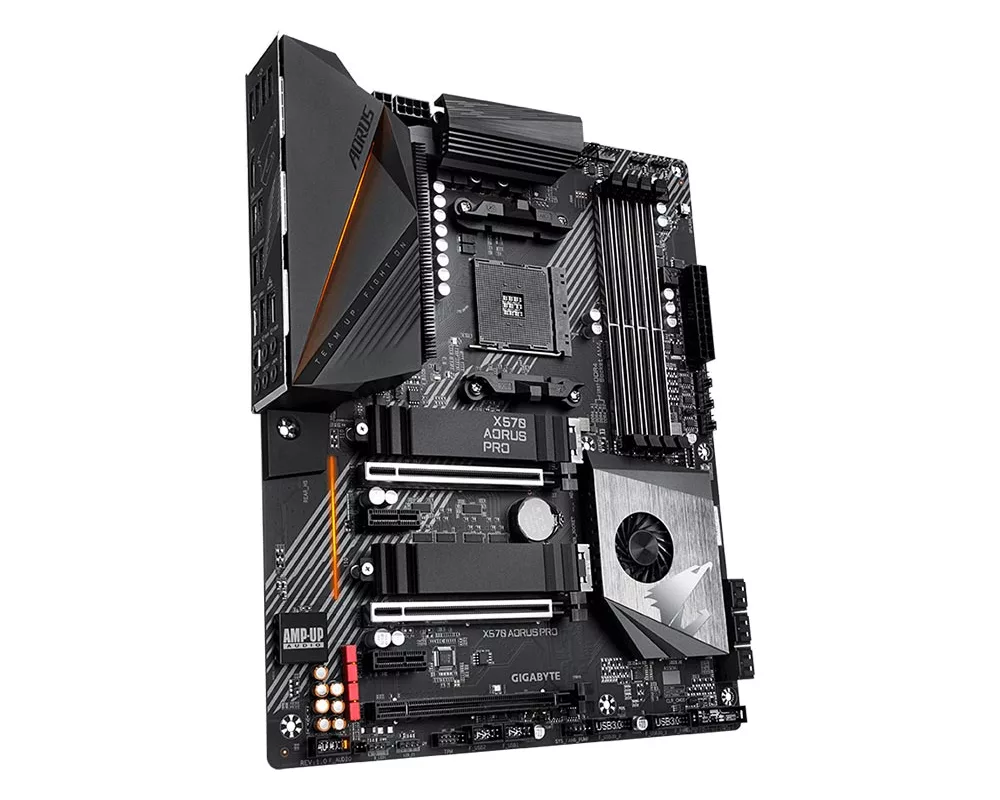

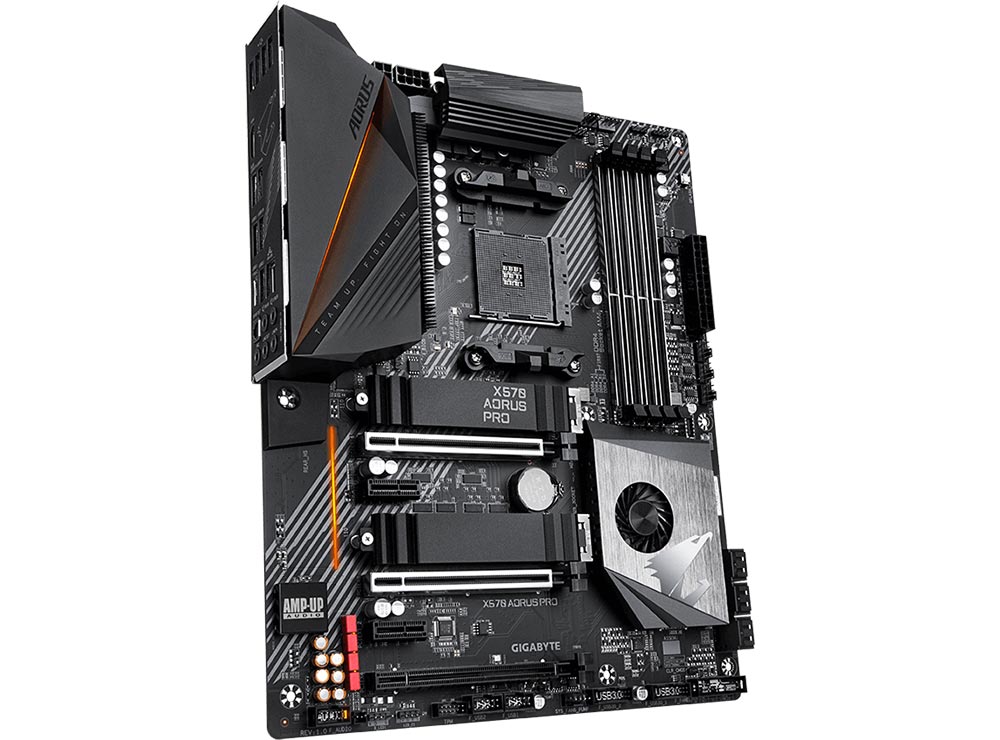

Дънна платка GIGABYTE X570 AORUS PRO /AM4 X570 AORUS PRO 1.2
изчерпано
Сокет: AM4
Чипсет: AMD X570
Тип на паметта: DDR4
Физически размер: ATX Form Factor; 30.5cm x 24.4cm
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX Form Factor; 30.5cm x 24.4cm |
| Чипсет | AMD X570 |
| Сокет | AM4 |
| Съвместими процесори | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors |
| BIOS | 2 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; Support for DualBIOS™; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Памет | 3rd Generation AMD Ryzen™ processors: Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*; * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| Слотове за памет | 4 |
| Слотове | Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16); 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8); · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16); 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.; · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16); Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3. |
| Видео | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version, HDCP 2.2, and HDR.; Maximum shared memory of 16 GB |
| Дисков интерфейс | Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support); · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support); Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support); * For 3rd Generation AMD Ryzen™ processors only.; 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, and RAID 10 |
| LAN порт | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Звук | Realtek® ALC1220-VB codec; * The back panel line out jack supports DSD audio.; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |

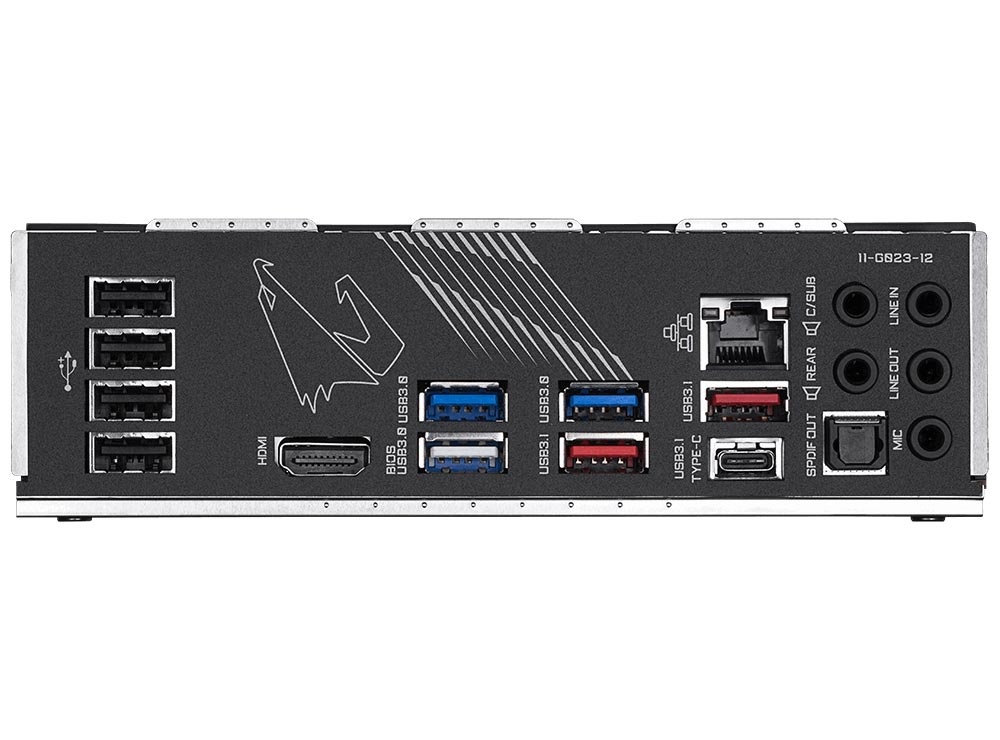

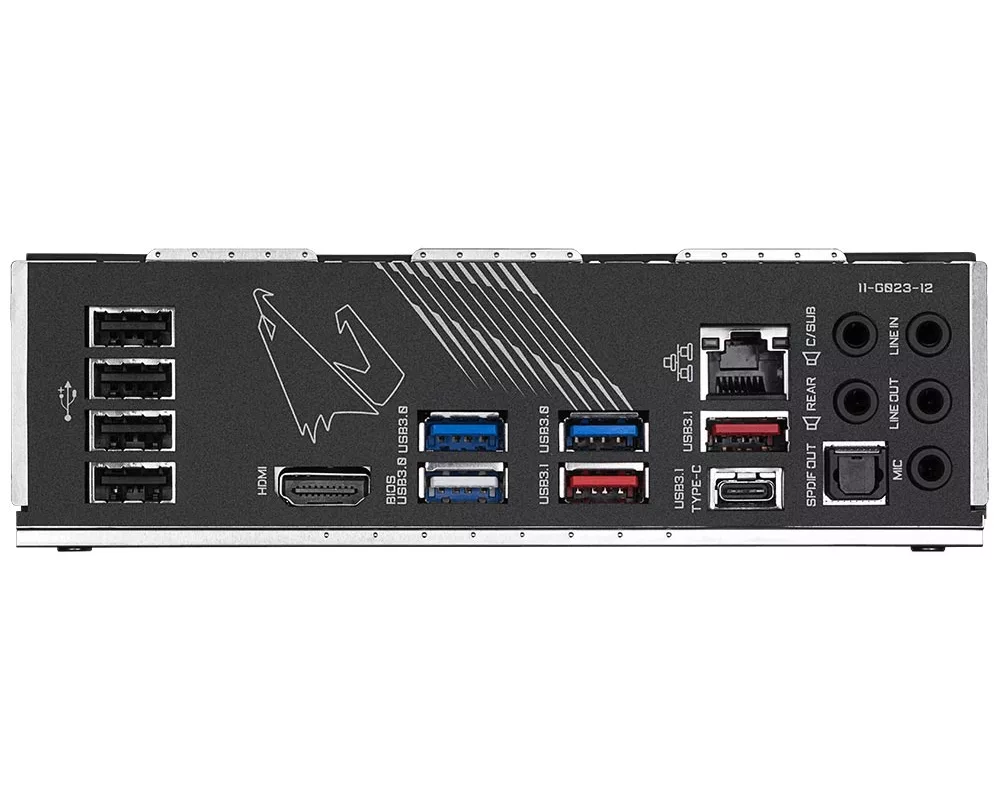

| Портове | 1 x HDMI port; 1 x USB Type-C™ port, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red); * For 3rd Generation AMD Ryzen™ processors only.; 1 x USB 3.2 Gen 2 Type-A port (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 2 x system fan/water cooling pump headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C™ port, with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper; 2 x temperature sensor headers; 1 x Q-Flash Plus button |
| Гаранция | 36 месеца |
| Код на продукта | X570 AORUS PRO 1.2 |
Виж повече
Информация за производителя
| Контакт | +886-2-8912-4000 |
| Адрес | No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan |
| Уебсайт | https://www.gigabyte.bg |
Виж повече
Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
