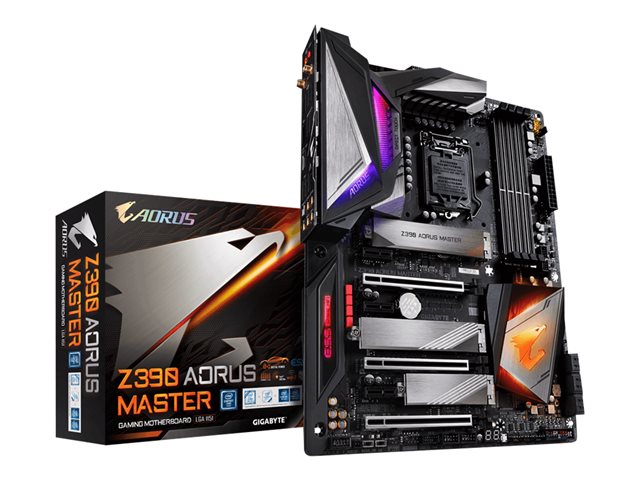

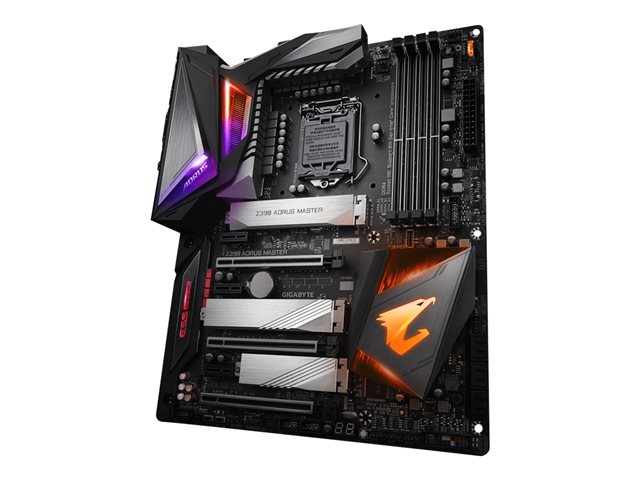

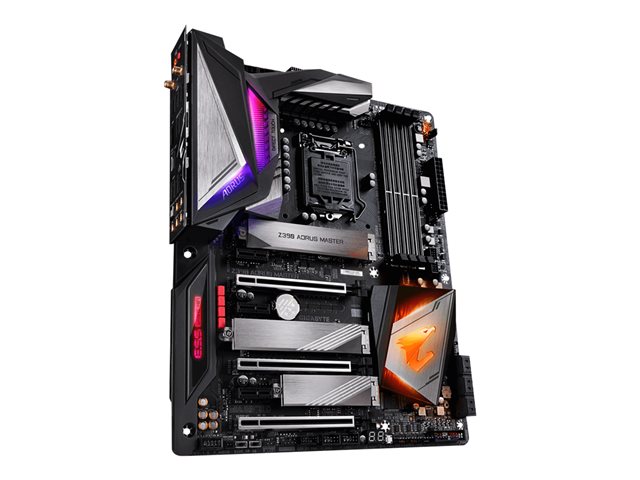

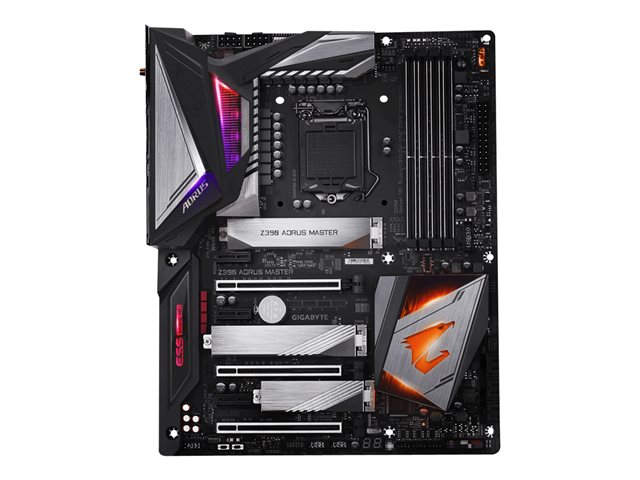

Дънна платка GIGABYTE Z390 AORUS MASTER Mainboard Intel LGA1151v2 4x DDR4 6x PCI-E HDMI 2x M.2 ATX Z390 AORUS MASTER
изчерпано
Сокет: LGA 1151
Чипсет: Intel Z390
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z390 |
| Сокет | LGA 1151 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 Core i9 (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 2 x M.2 PCIe -connectors: 1 x M.2 |
| LAN порт | Bluetooth 5.0, Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2 |
| Звук | Realtek ALC1220-VB |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

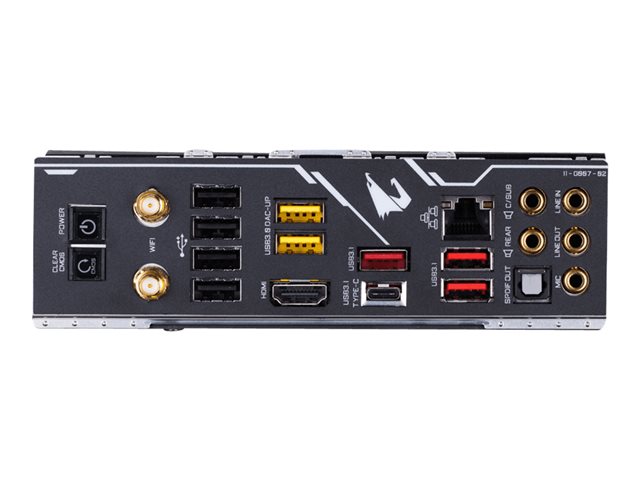

| Портове | 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x TOSLINK 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 2 x USB 3.1 Gen 1 3 x USB 3.1 Gen 2 1 x USB-C Gen2 4 x USB 2.0 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour x16 slot is occupied)) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode (x2 mode if M.2 is occupied)) 3 x PCIe 3.0 x1 1 x M.2 socket (for Intel CNVi wireless module) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x SPDIF out - header 1 x audio - header 1 x USB-C Gen2 - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center cFosSpeed Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD XSplit Gamecaster (1 year licence) XSplit Broadcaster (1 year licence) GIGABYTE Smart Survey |
| Конектори за захранване | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection water cooling flow rate |
| Стандарти | Plug and Play |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
12 Phase Power Design
AutoGreen NVIDIA Quad SLI Technology Support NVIDIA 2-way SLI Technology Support On/Off Charge AMD CrossFireX technology support AMD Quad CrossFireX technology support AMD 3-way CrossFireX technology support Easy RAID Installer Ultra Durable Memory Armor GIGABYTE USB DAC-UP 2 Intel Optane Memory Ready RGB FUSION Ultra Durable PCIe Armor M.2 Thermal Guard pre-mounted I/O shield CEC 2019 Ready Fins-Array Heatsink & Direct Touch Heatpipe Solid Pin Power Connectors ESS 9118 SABRE HiFi DAC GIGABYTE USB TurboCharger |
| Гаранция | 36 месеца |
| Код на продукта | Z390 AORUS MASTER |
Виж повече
Допълнителна информация
- 12 phase digital power design
Server level reliability Z390 AORUS MASTER motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40 A of power from each phase, for a total of 480 A. These 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the 8-core 9th Gen Intel Core processors. - Advanced thermal design
Z390 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers. - Triple PCIe Gen3 x4 M.2
AORUS Gaming motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - GIGABYTE ultra-efficient M.2 thermal guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Multi-zone light show design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard. - Solid pin power connectors
Z390 AORUS motherboards feature solid plated ATX 24 pin & ATX 12 V 8 pin + 8 pin power connectors to offer a stable power supply during CPU overloading.
