Дънна платка GIGABYTE Z390 AORUS PRO WIFI Mainboard Intel LGA1151v2 Socket 4x DDR4 6x PCI-E HDMI 2x M.2 Slot ATX Z390 AORUS PRO WIFI
изчерпано
Сокет: LGA 1151
Чипсет: Intel Z390
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
5 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z390 |
| Сокет | LGA 1151 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 Core i9 (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support Dual BIOS |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 64 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 2 x M.2 |
| LAN порт | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2 |
| Звук | Realtek ALC1220-VB |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

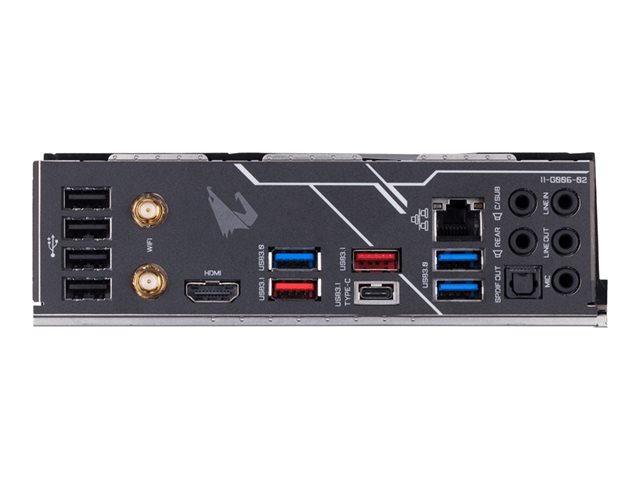

| Портове | 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x TOSLINK 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 3 x USB 3.1 Gen 1 2 x USB 3.1 Gen 2 1 x USB-C Gen2 4 x USB 2.0 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour x16 slot is occupied)) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x8 mode) 1 x M.2 socket (for Intel CNVi wireless module) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x SPDIF out - header 1 x audio - header 1 x USB-C Gen 1 - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center cFosSpeed Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart Survey |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection water cooling flow rate |
| Стандарти | Plug and Play |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
12 Phase Power Design
AutoGreen NVIDIA Quad SLI Technology Support NVIDIA 2-way SLI Technology Support On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support AMD 3-way CrossFireX technology support Easy RAID Installer 2x Copper PCB Ultra Durable Memory Armor Intel Optane Memory Ready GIGABYTE Smart Fan 5 RGB FUSION Ultra Durable PCIe Armor M.2 Thermal Guard pre-mounted I/O shield CEC 2019 Ready Solid Pin Power Connectors |
| Гаранция | 36 месеца |
| Код на продукта | Z390 AORUS PRO WIFI |
Виж повече
Допълнителна информация
- Support for DDR4 XMP up to 4133 MHz and beyond
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133 MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboards. - Advanced thermal design
Z390 AORUS ELITE uses high performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. - Pre-installed I/O shield
With an integrated I/O shield, building an GIGABYTE Ultra Durable PC is even easier. - Dual PCIe Gen3 x4 M.2
AORUS Gaming motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential. - GIGABYTE ultra-efficient M.2 thermal guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - High-end WIMA & audio capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles. - USB Type-C front panel connector
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your mobile device. - Multi-zone light show design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
