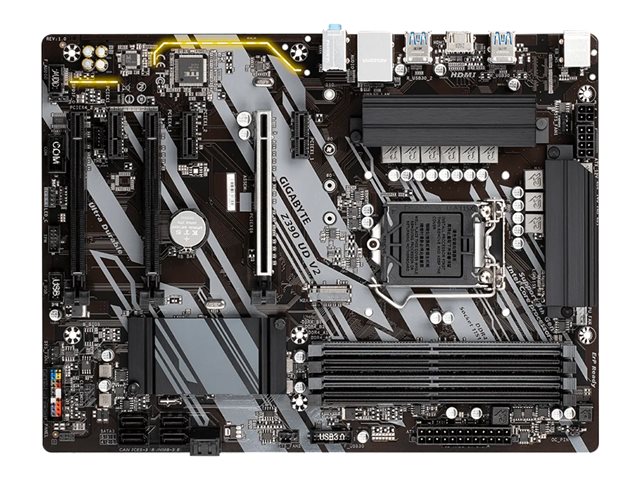

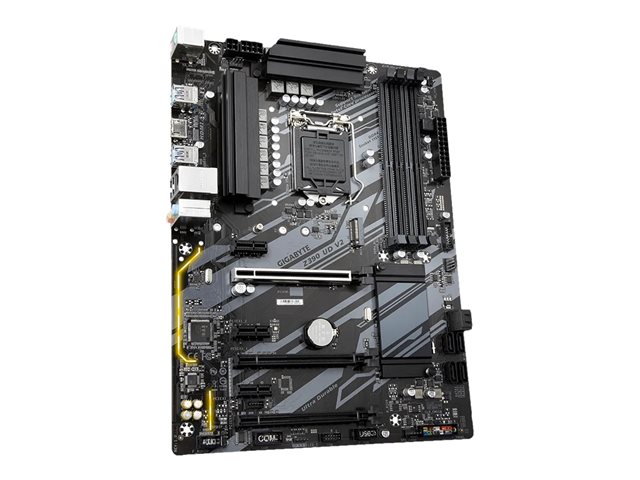

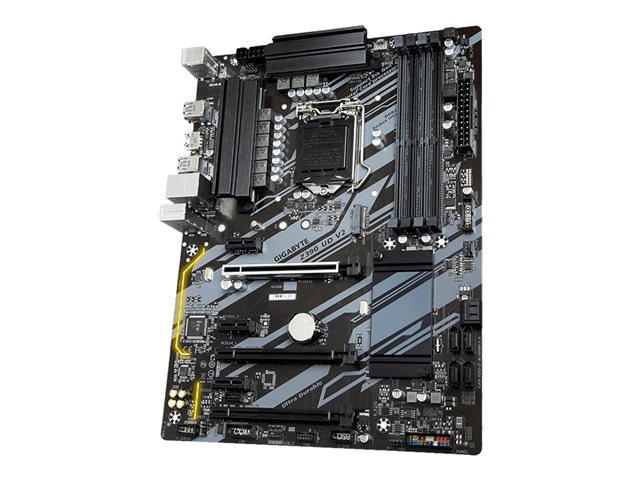

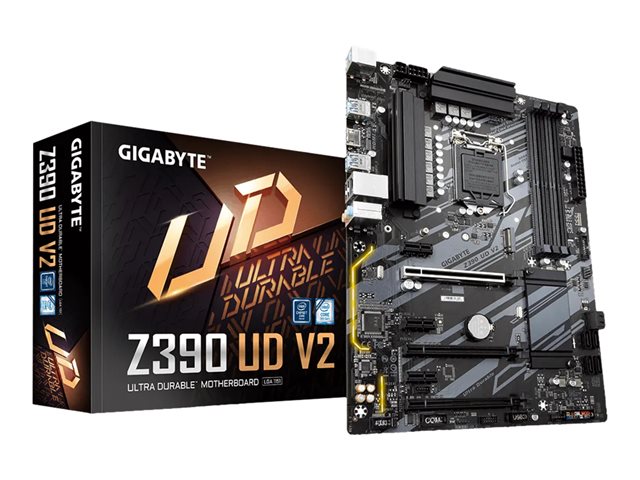

Дънна платка GIGABYTE Z390 UD V2 LGA1151 DDR4 1xM.2 6xSATA ATX MB Z390 UD V2
изчерпано
Сокет: LGA 1151
Чипсет: Intel Z390
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2666 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z390 |
| Сокет | LGA 1151 |
| Съвместими процесори |
Pentium
Celeron Core i5 Core i3 Core i7 Core i9 (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 2666 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 1 x M.2 |
| LAN порт | Gigabit Ethernet |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

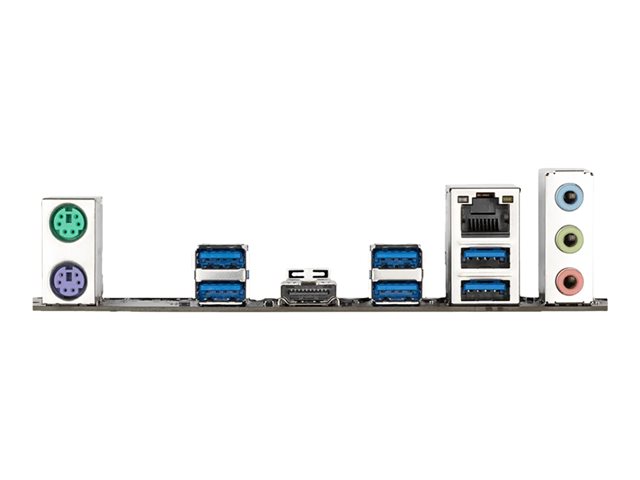

| Портове | 1 x LAN (Gigabit Ethernet) 1 x HDMI 1 x PS/2 keyboard 1 x audio line-out - mini-jack 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x PS/2 mouse 6 x USB 3.1 Gen 1 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 2 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x audio - header 1 x serial - header 1 x SPDIF out - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Cloud Station Xpress Install GIGABYTE USB Blocker GIGABYTE App Center Smart TimeLock GIGABYTE Fast Boot GIGABYTE V-Tuner GIGABYTE Smart Keyboard GIGABYTE Smart Backup GIGABYTE Smart Fan 5 GIGABYTE 3D OSD GIGABYTE Smart Survey Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection fan fail warning |
| Стандарти | Plug and Play |
| Ширина | 30.5 cm |
| Дълбочина | 23 cm |
| Други характеристики |
AutoGreen
On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support Easy RAID Installer Audio Noise Guard GIGABYTE Double Locking Bracket Intel Optane Memory Ready Ultra Durable PCIe Armor CEC 2019 Ready Solid Pin Power Connectors 8+1 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | Z390 UD V2 |
Виж повече
Допълнителна информация
- 8 +1 phases digital twin power design with DrMOS
Intersil Digital PWM + DrMOS GIGABYTE UD series motherboards use an 8 +1 phase PWM with DrMOS design to support the latest 8-core Intel Core CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. - High-speed Gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. - Industry's leading LAN static electricity and surge protection
GIGABYTE motherboards use ICs with up to three times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery. - Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. - Support RGB lighting effects in full color
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Industry-leading Ultra Durable PCIe armor
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
