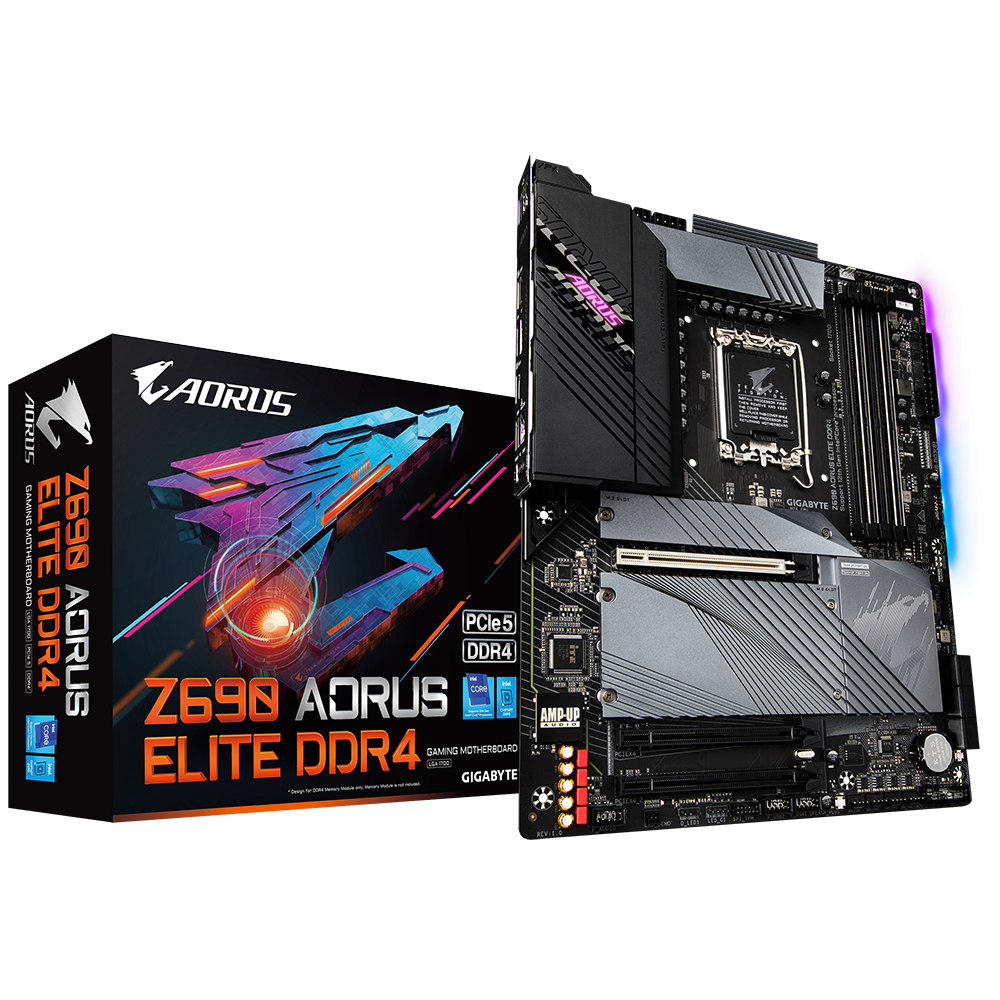

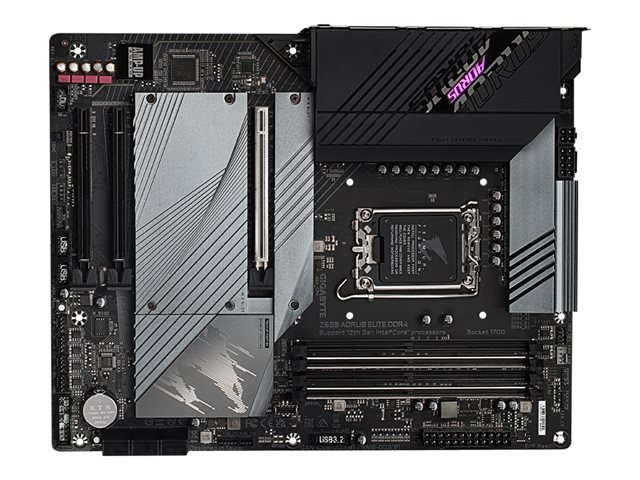

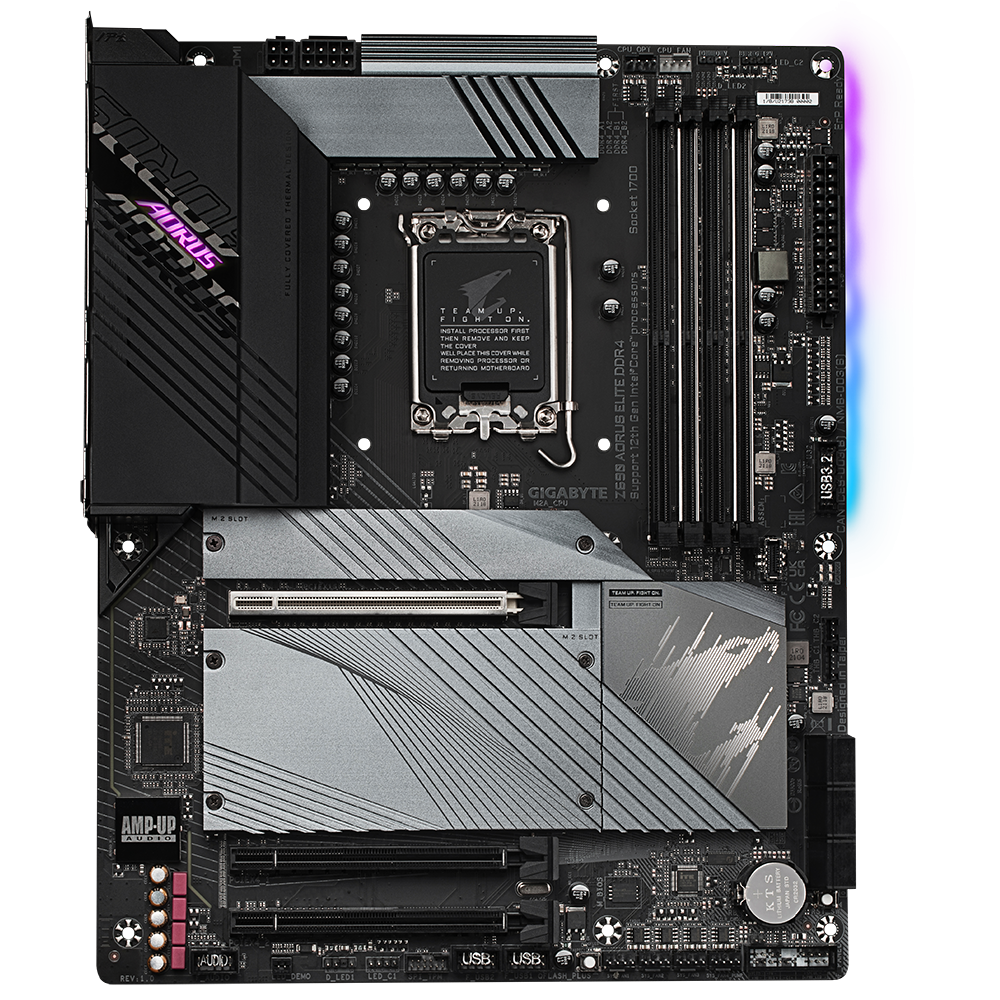

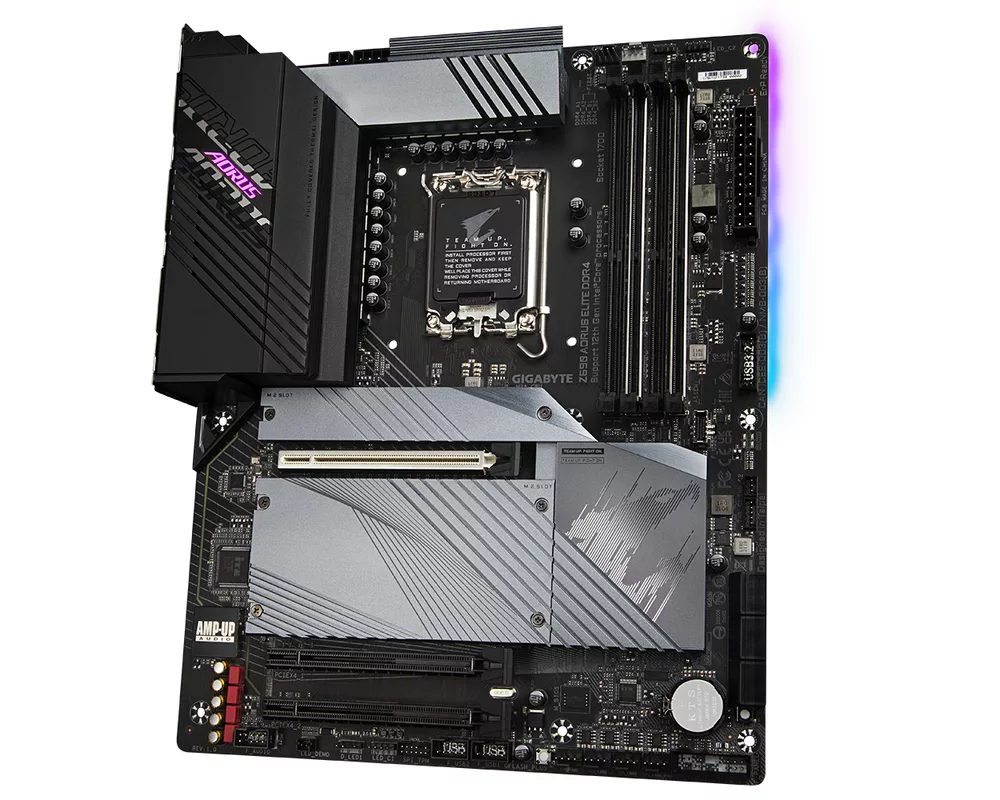

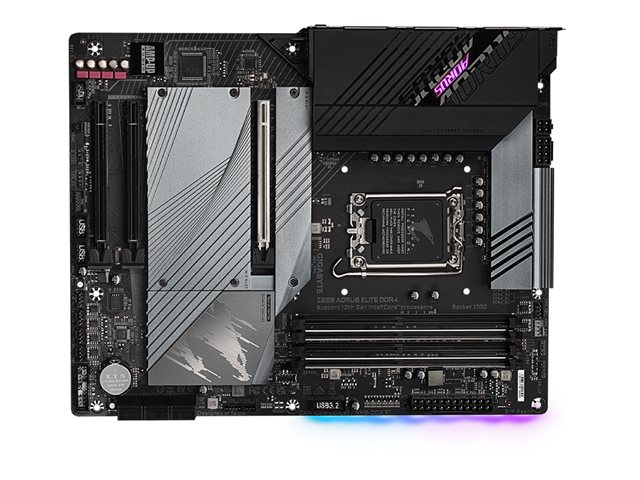

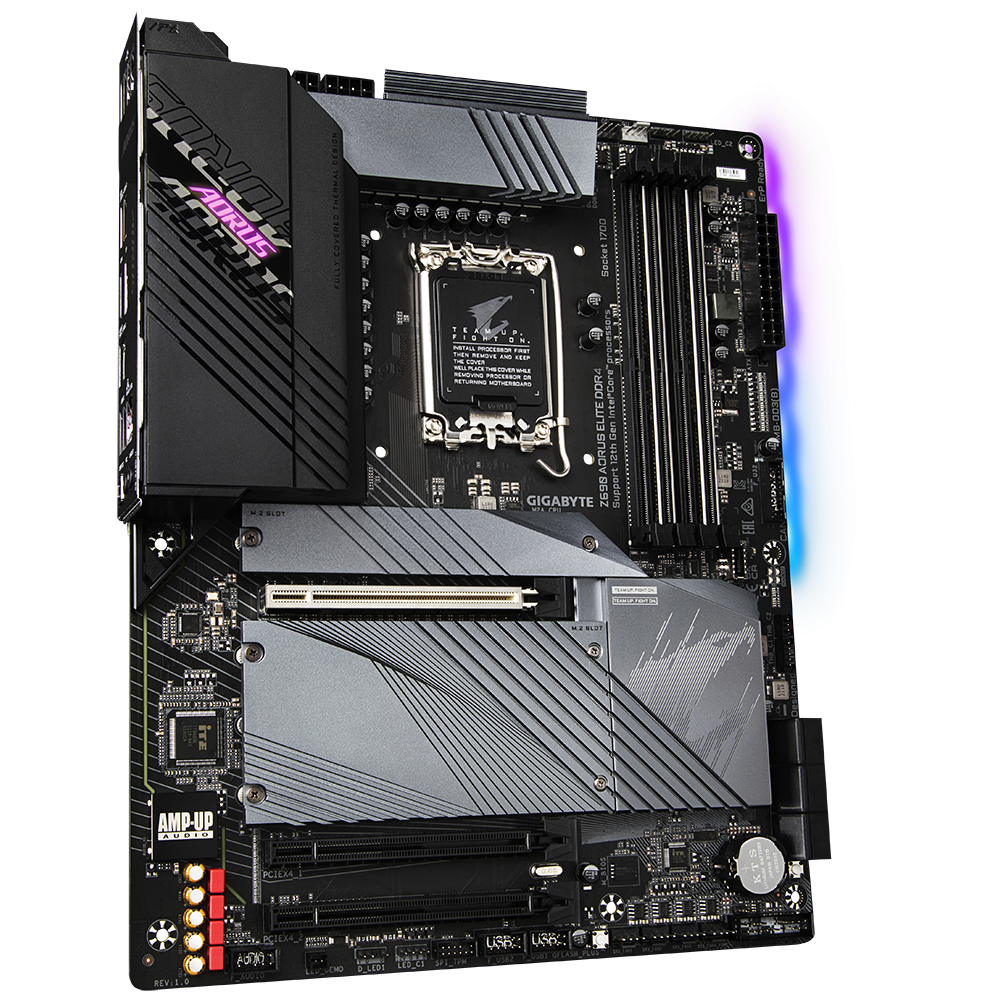

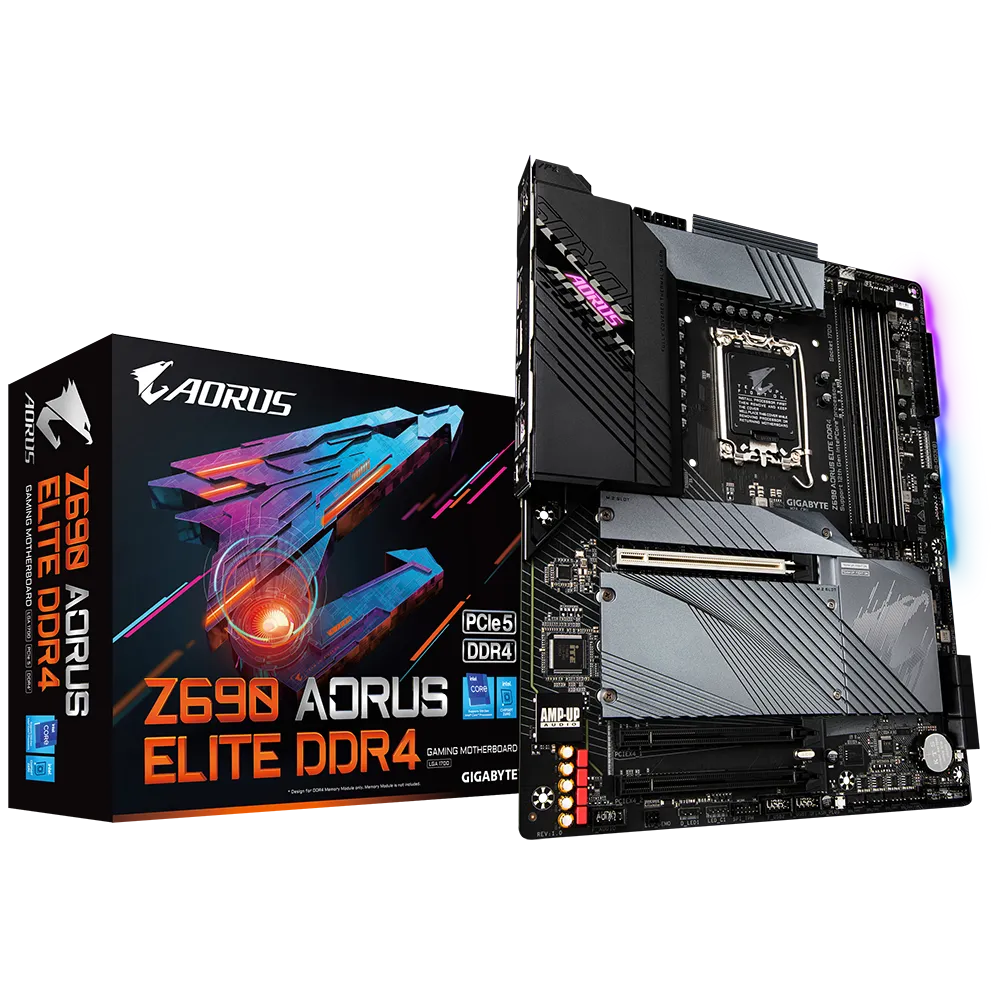

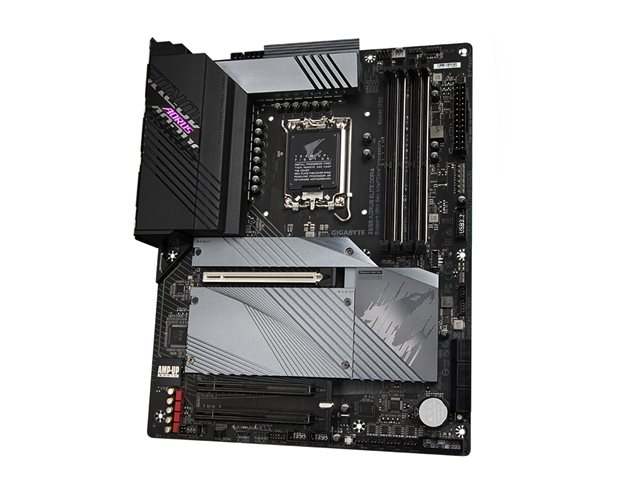

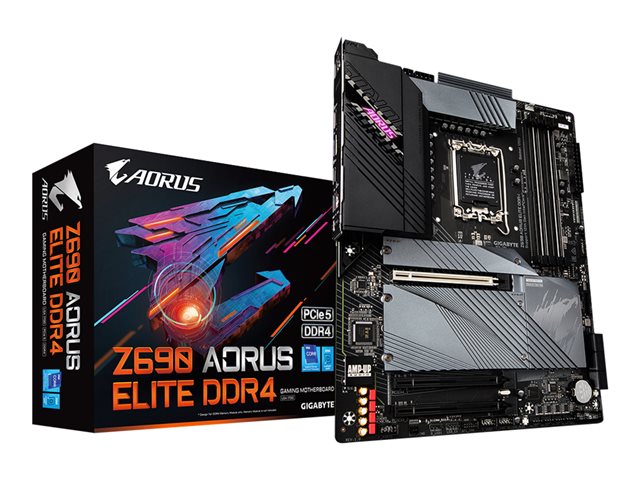

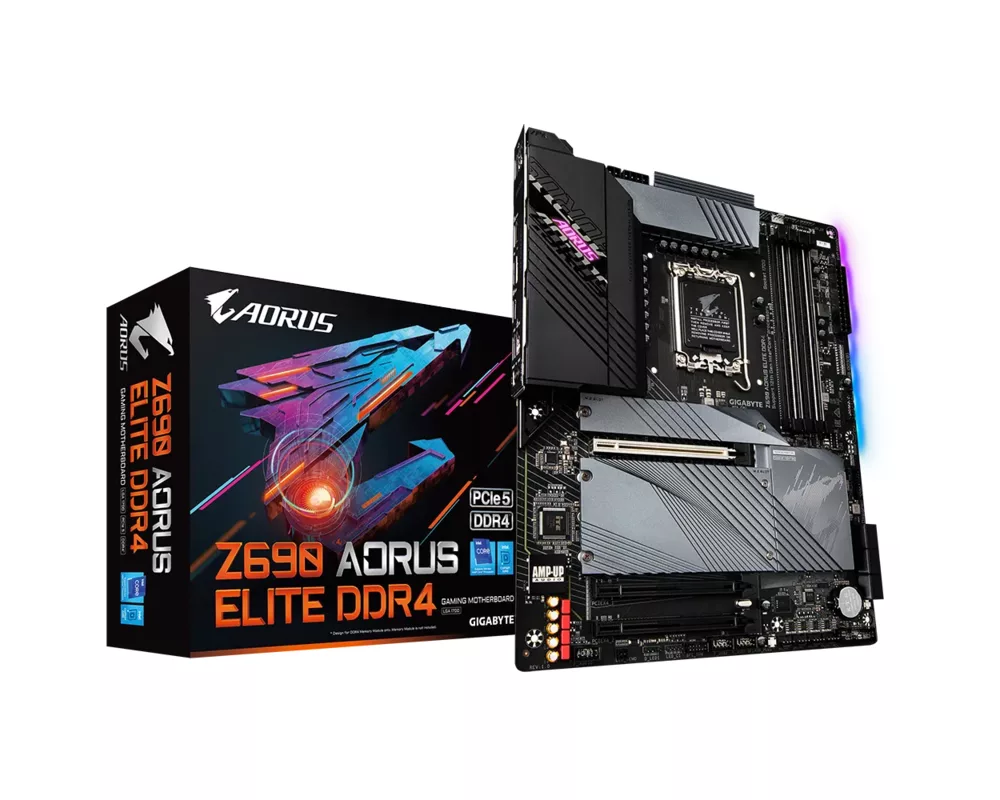

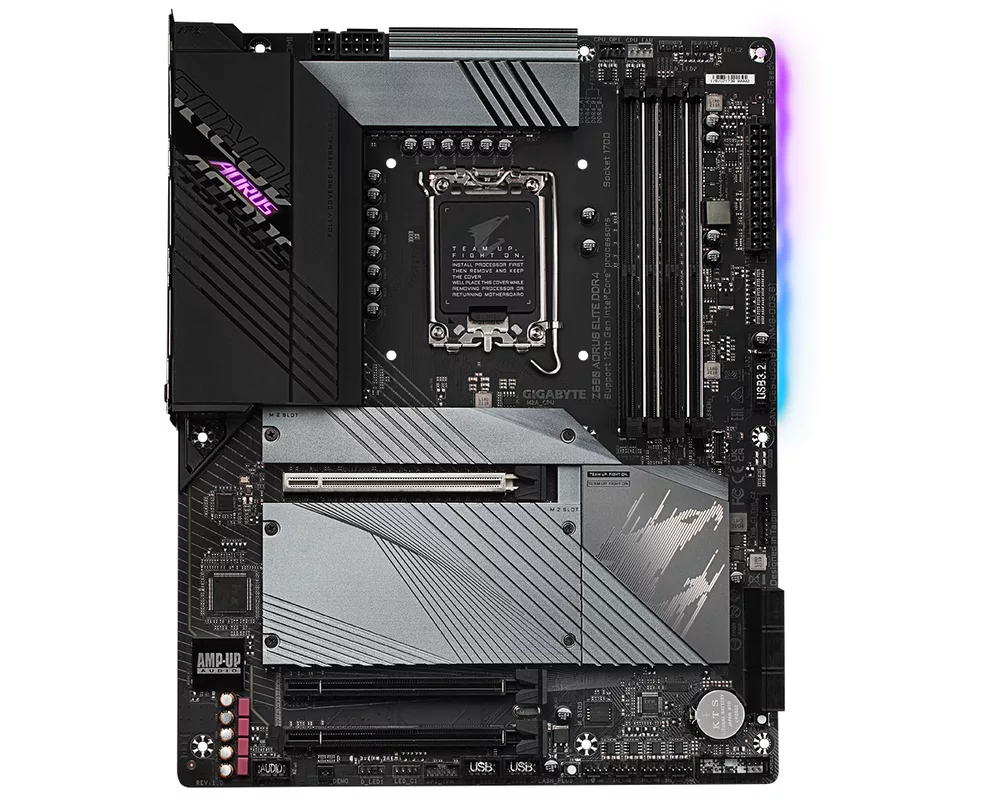

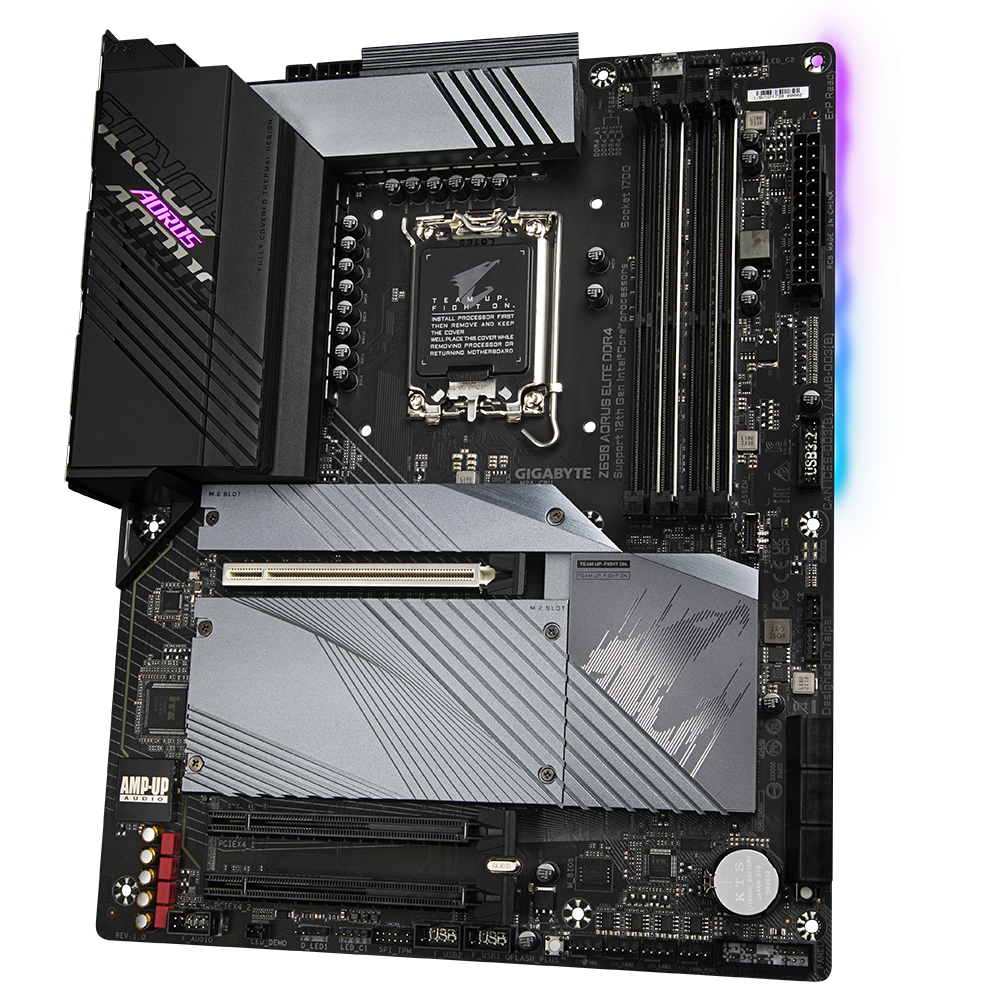

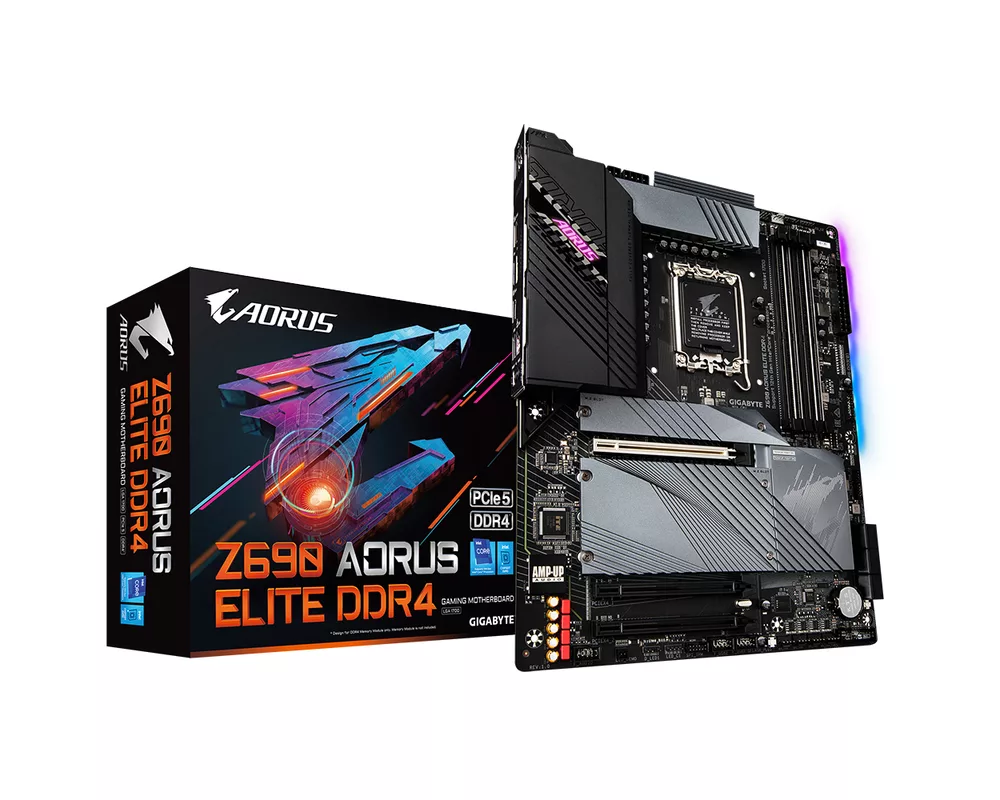

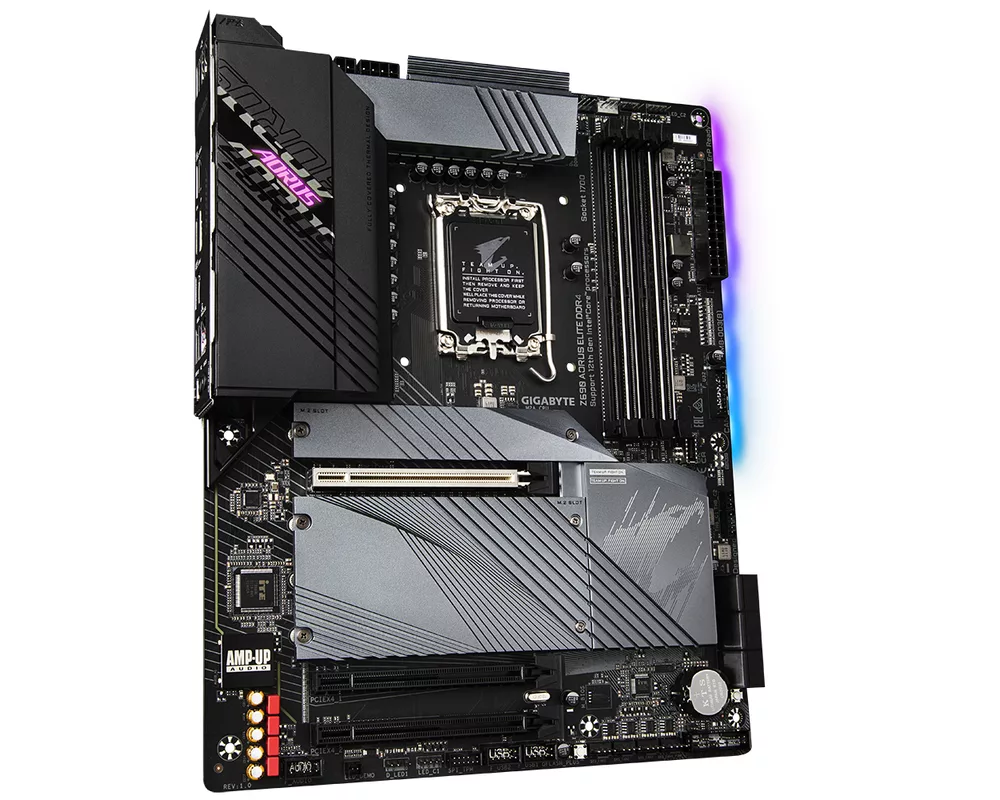

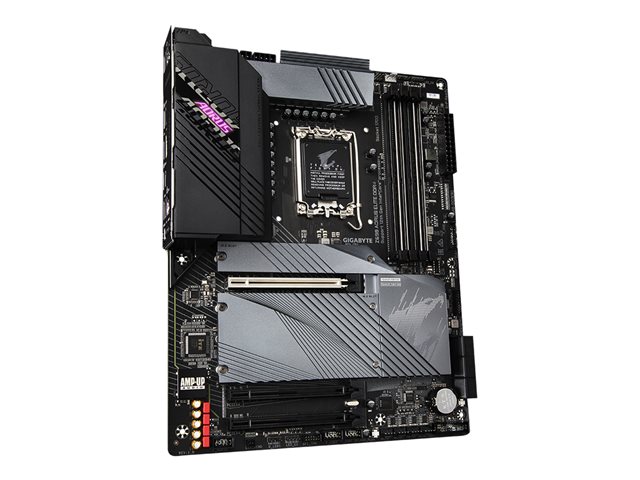

Дънна платка GIGABYTE Z690 AORUS ELITE LGA 1700 DDR4 3xM.2 6xSATA 1xHDMI 1xDP ATX MB Z690 AORUS ELITE DDR4
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 3200 MHz
Гаранция:
0.0
от 5.0
(0)
Купи и събери
4 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | Core i5, Core i7, Core i9 (supports 12th Generation Intel Core) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Слотове |
1 x PCI Express x16 slot
running at x16 (PCIEX16); For optimum performance if only one PCI Express graphics card is to be installed be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 5.0 standard.); 2 x PCI Express x16 slots running at x4 (PCIEX4_1 PCIEX4_2) |
| Брой процесорни гнезда | 1 |
| Видео | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version and HDCP 2.3.; Support native HDMI 2.1 TMDS compatible ports.; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| LAN порт | 2.5 Gigabit Ethernet |
| Звук | Realtek ALC1220-VB |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

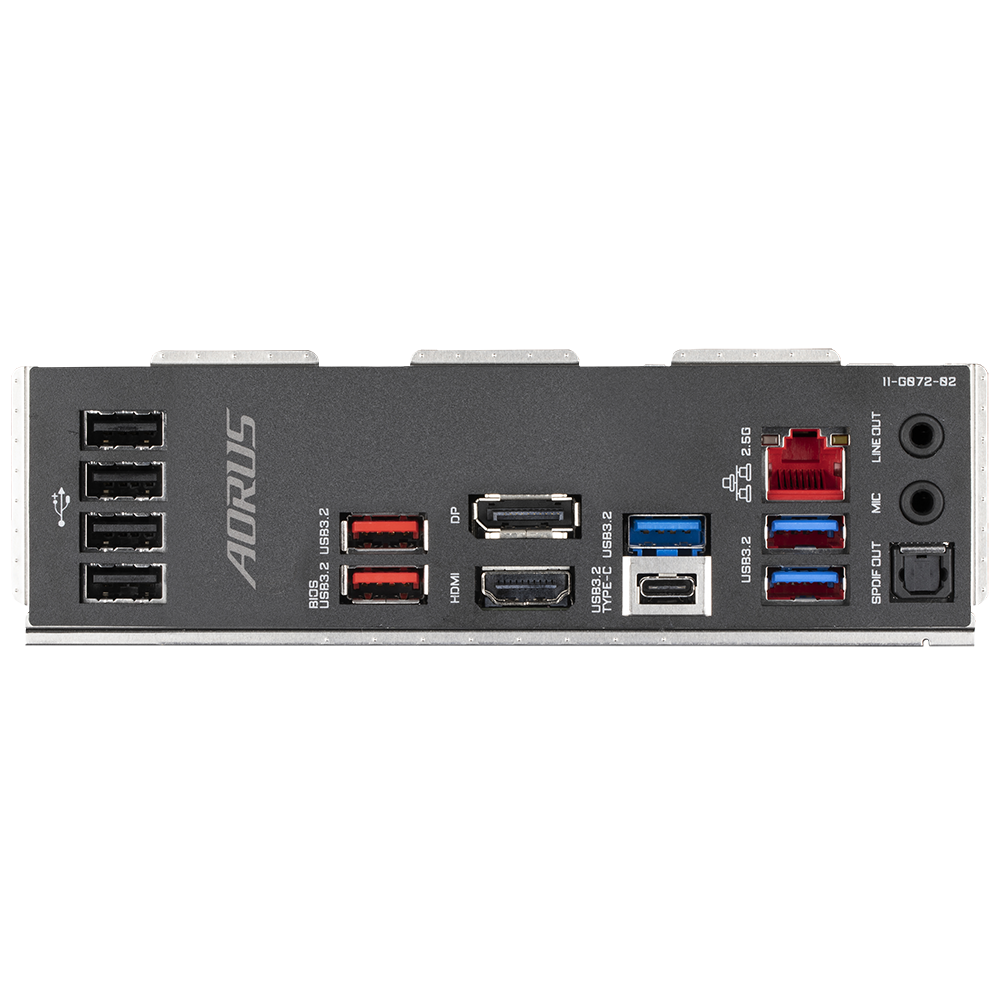

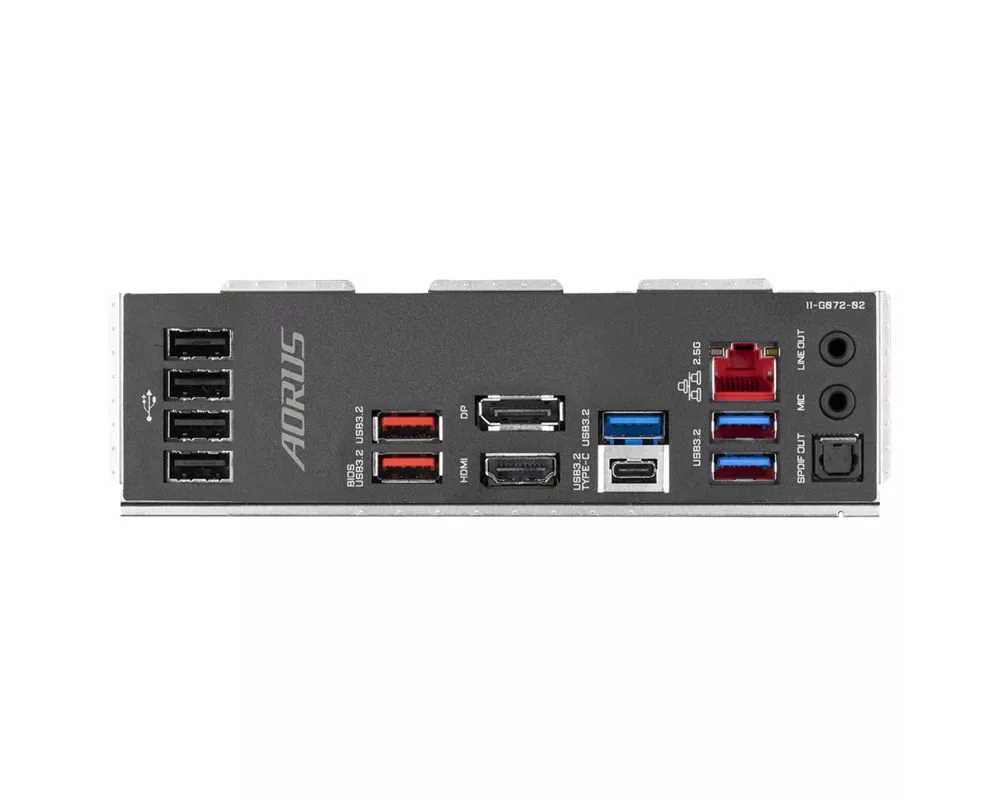

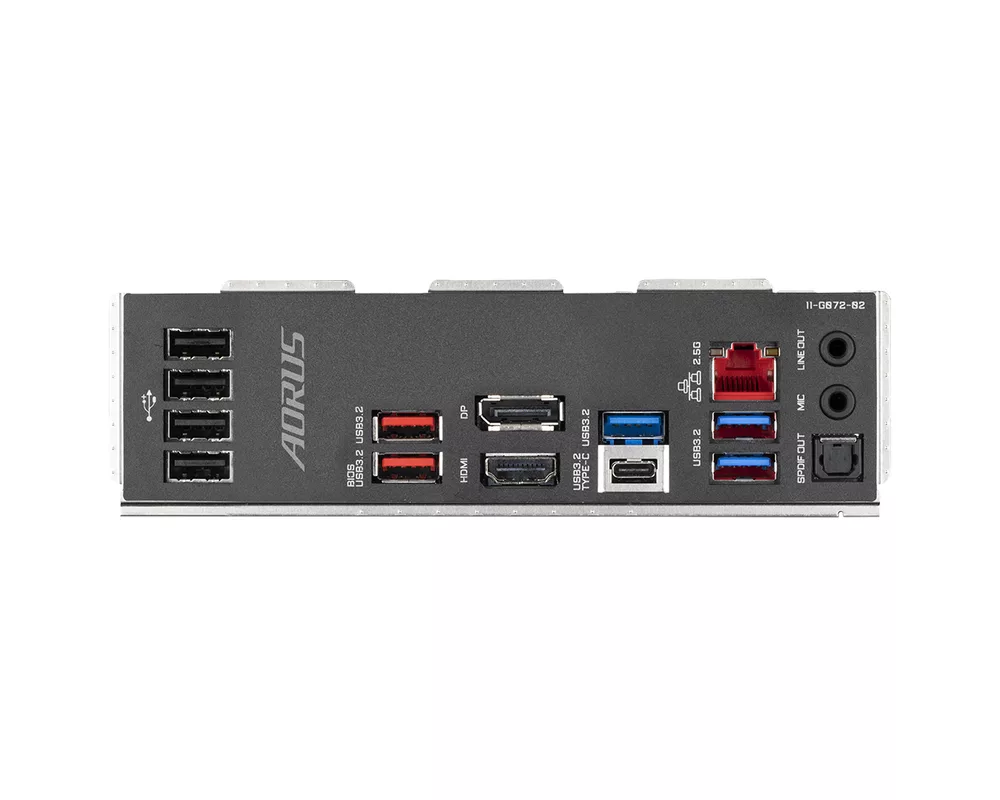

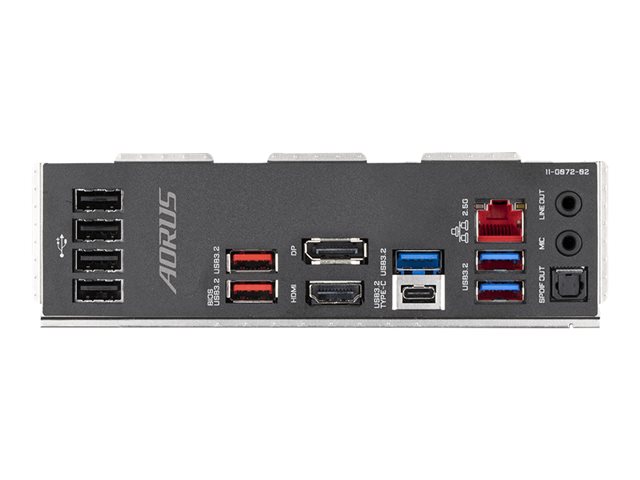

| Портове | 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x audio line-out - mini-jack 1 x microphone - mini-jack 3 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 1 x USB-C Gen2x2 1 x TOSLINK 4 x USB 2.0 1 x HDMI |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 3.0 x16 (x4 mode) |
| Вътрешен интерфейс | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen2 - header 1 x audio - header 2 x Thunderbolt - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Xpress Install GIGABYTE App Center GIGABYTE Fast Boot GIGABYTE Smart Backup Realtek Gaming LAN Bandwidth Control |
| Конектори | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 4 x M.2 Socket 3 connectors; 6 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt™ add-in card connectors; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x reset button; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage water cooling flow rate fan fail warning |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash
On/Off Charge AMD CrossFireX technology support AMD Quad CrossFireX technology support GIGABYTE AMP-UP Audio 2x Copper PCB 6 Layer PCB Q-Flash Plus Game Boost Ultra Durable Memory Armor Intel Optane Memory Ready Ultra Durable PCIe Armor Solid Pin Power Connectors RGB FUSION 2.0 M.2 Thermal Guard II GIGABYTE Smart Fan 6 16+1+2 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | Z690 AORUS ELITE DDR4 |
Виж повече
Допълнителна информация
- Unparalleled performance
GIGABYTE Z690 Series motherboards come with upgraded power solution, modern storage standards and outstanding connectivity to enable optimize performance for gaming. - Advanced thermal solution
GIGABYTE Z690 Series motherboards' unthrottled performance is guaranteed by innovative and optimized thermal design to ensure the perfect CPU, Chipset, SSD stability and low temperatures under full load application and gaming. - 2x large surface
Increased surface area up to 2x larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. - Real one-piece build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design. - Multi-cut design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance. - AORUS M.2 Thermal Guard II
The M.2 Thermal Guard II uses a double-sided heatsink design and prevents throttling and bottlenecks on high speed M.2 SSDs by dissipating heat before it becomes an issue. - 2x copper PCB design
By adopting 2x copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to its high thermal conductivity and lower impedance. - Next generation connectivity
GIGABYTE Z690 Series motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. - Ultra Durable
GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the perfect components and reinforce every slot to make each of them solid and durable.
