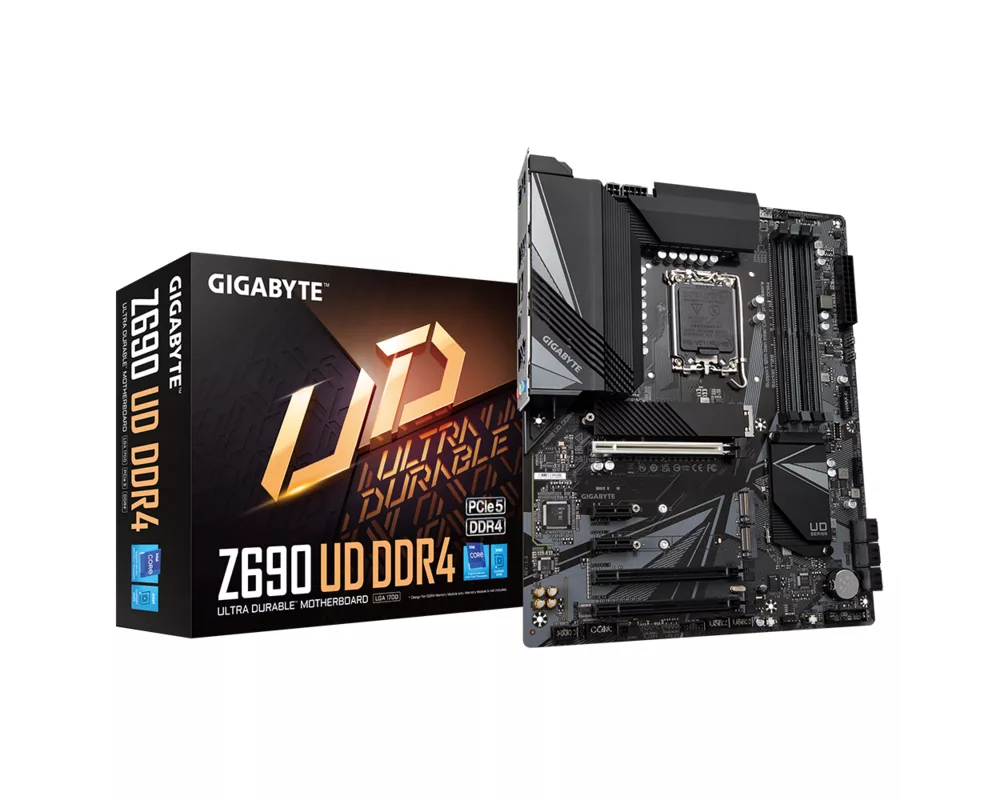

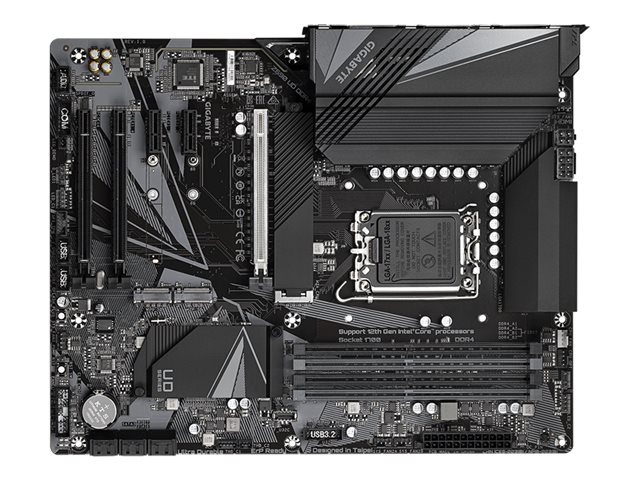

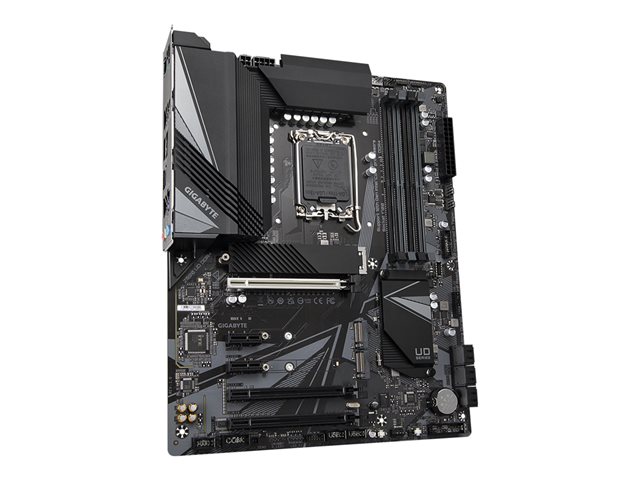

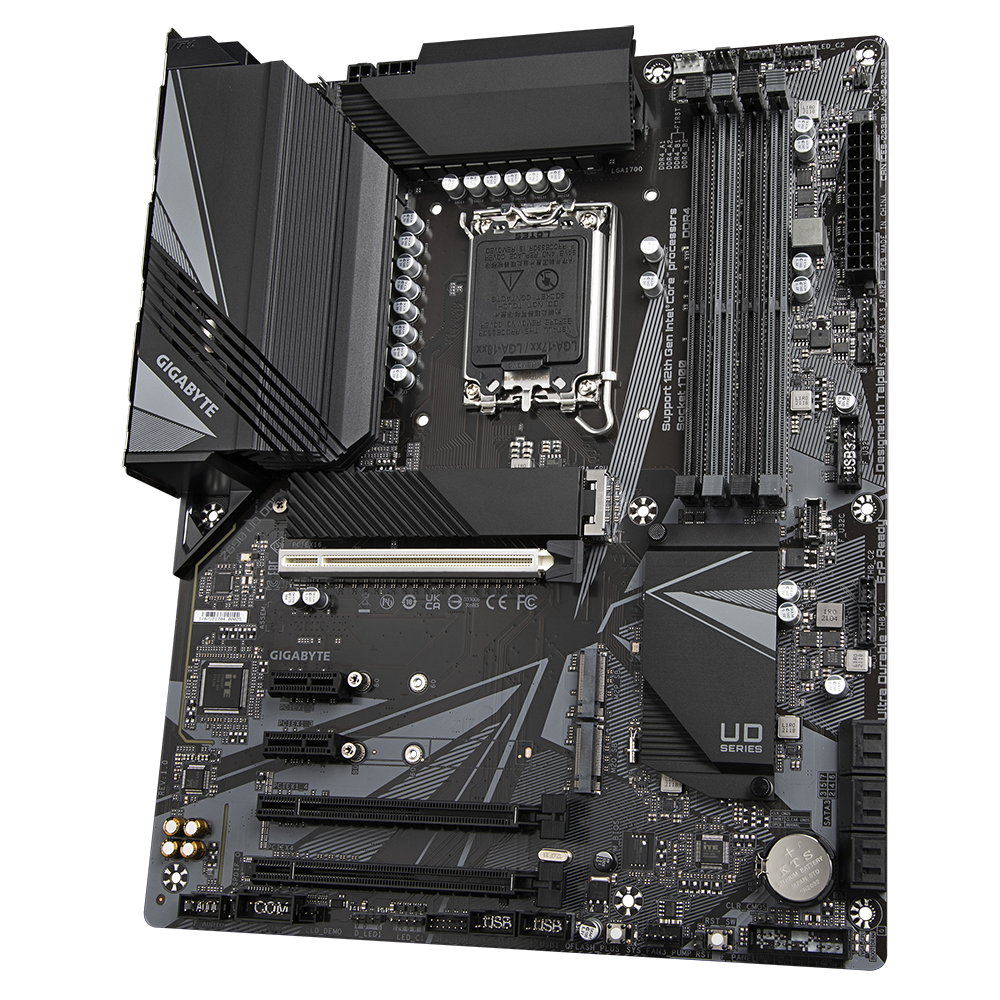

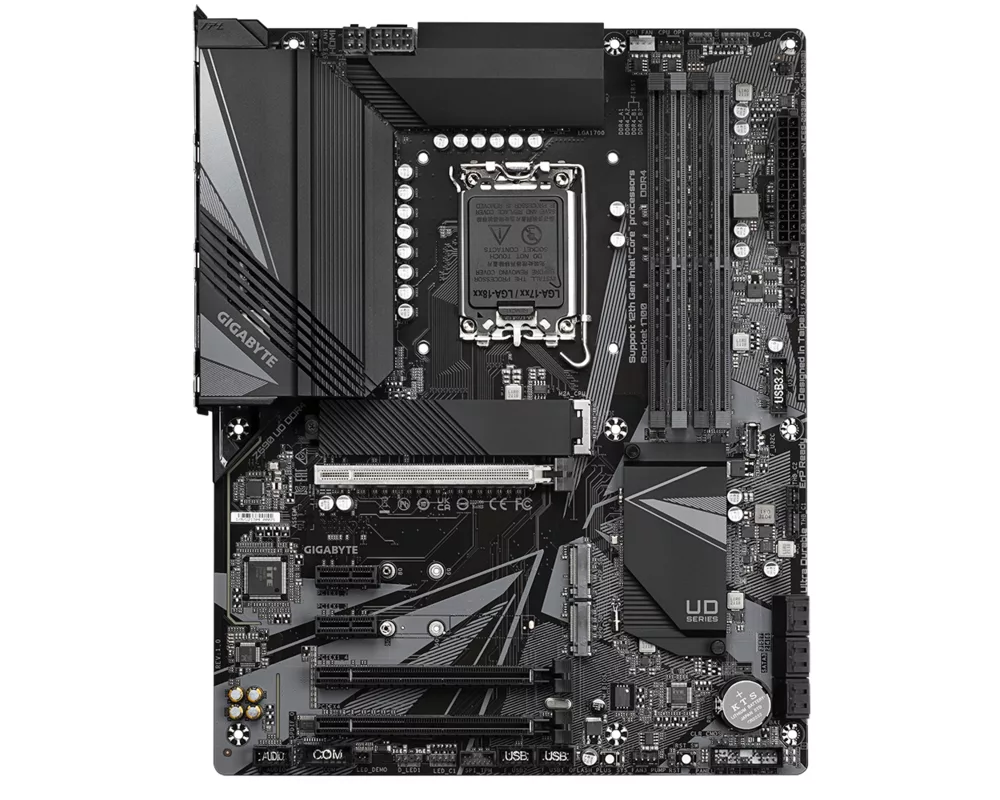

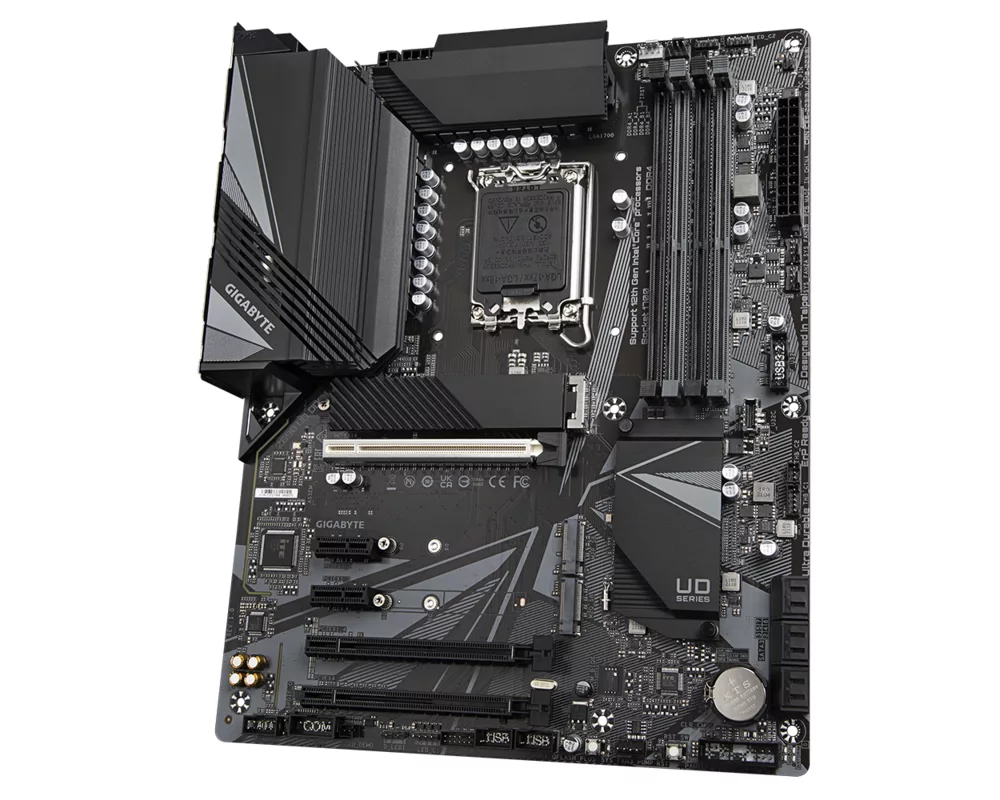

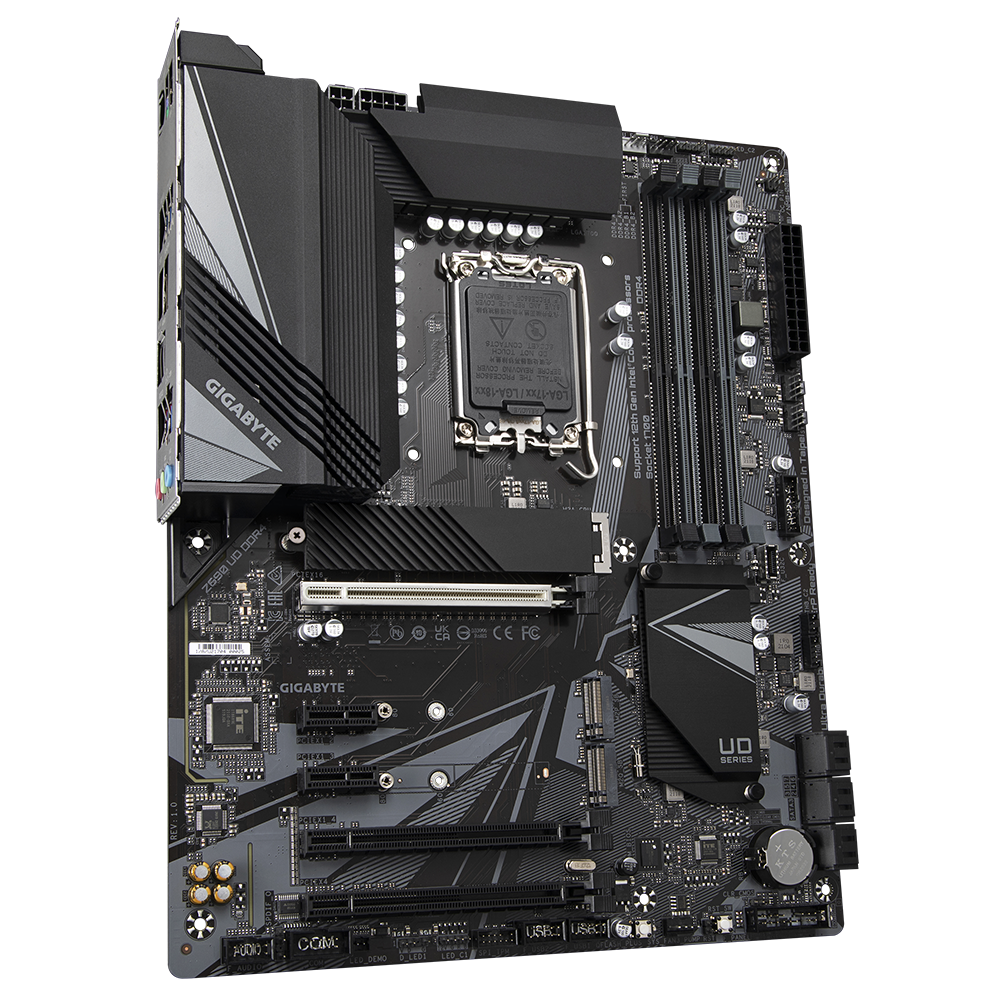

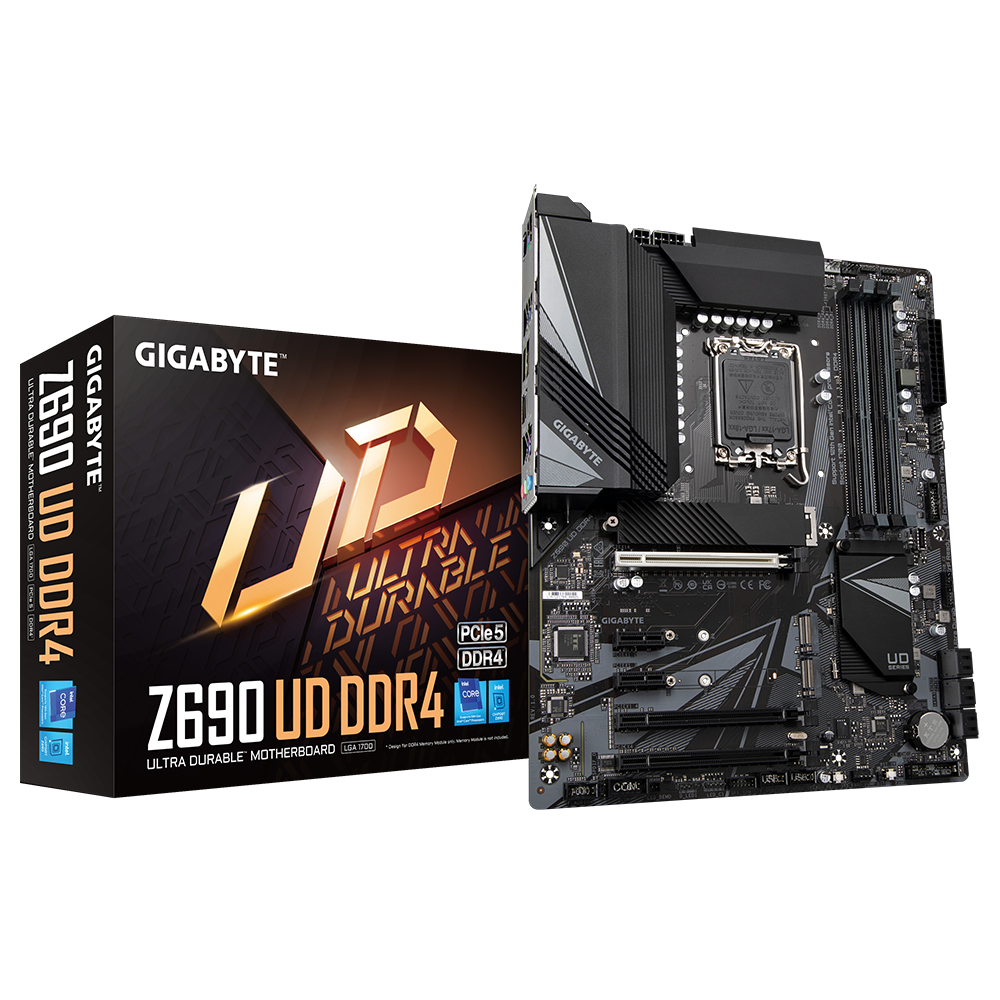

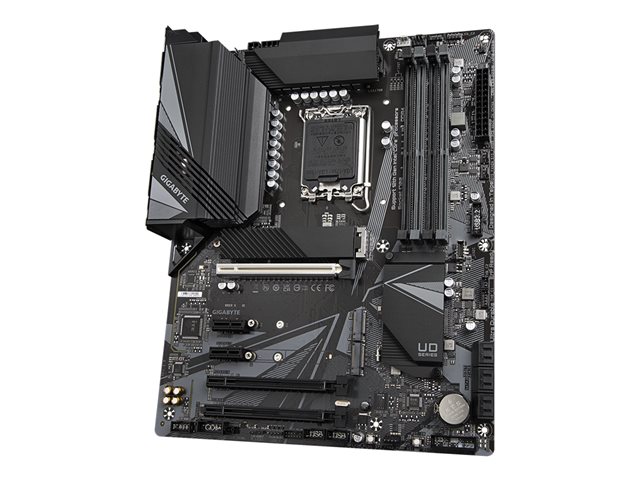

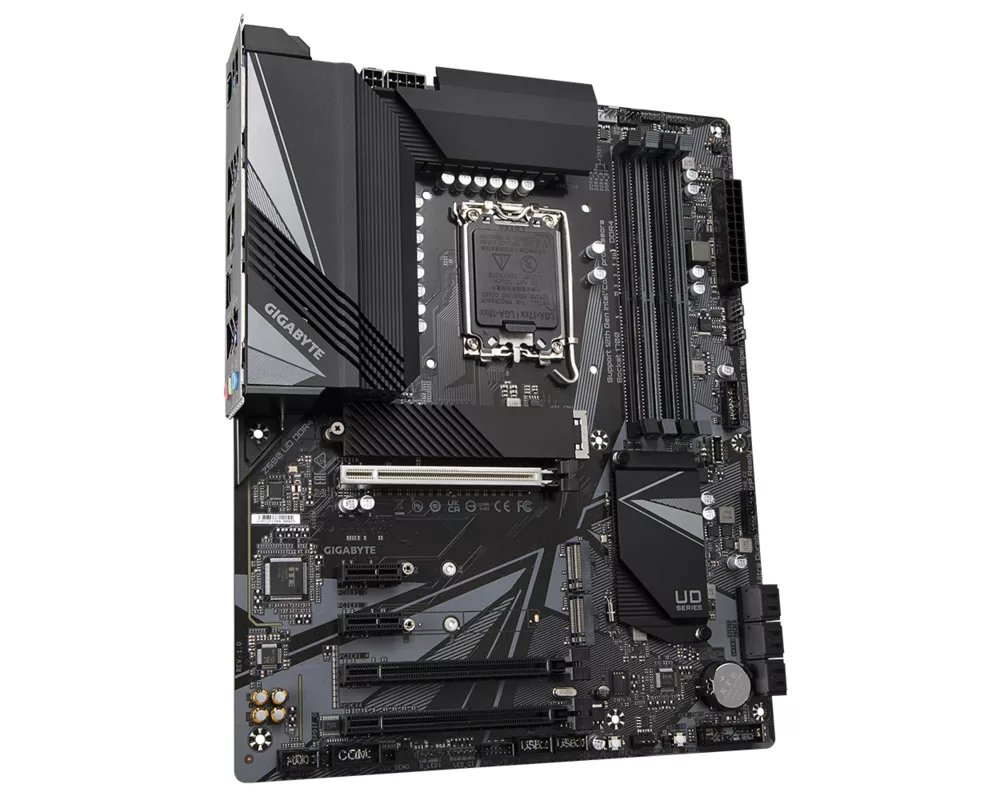

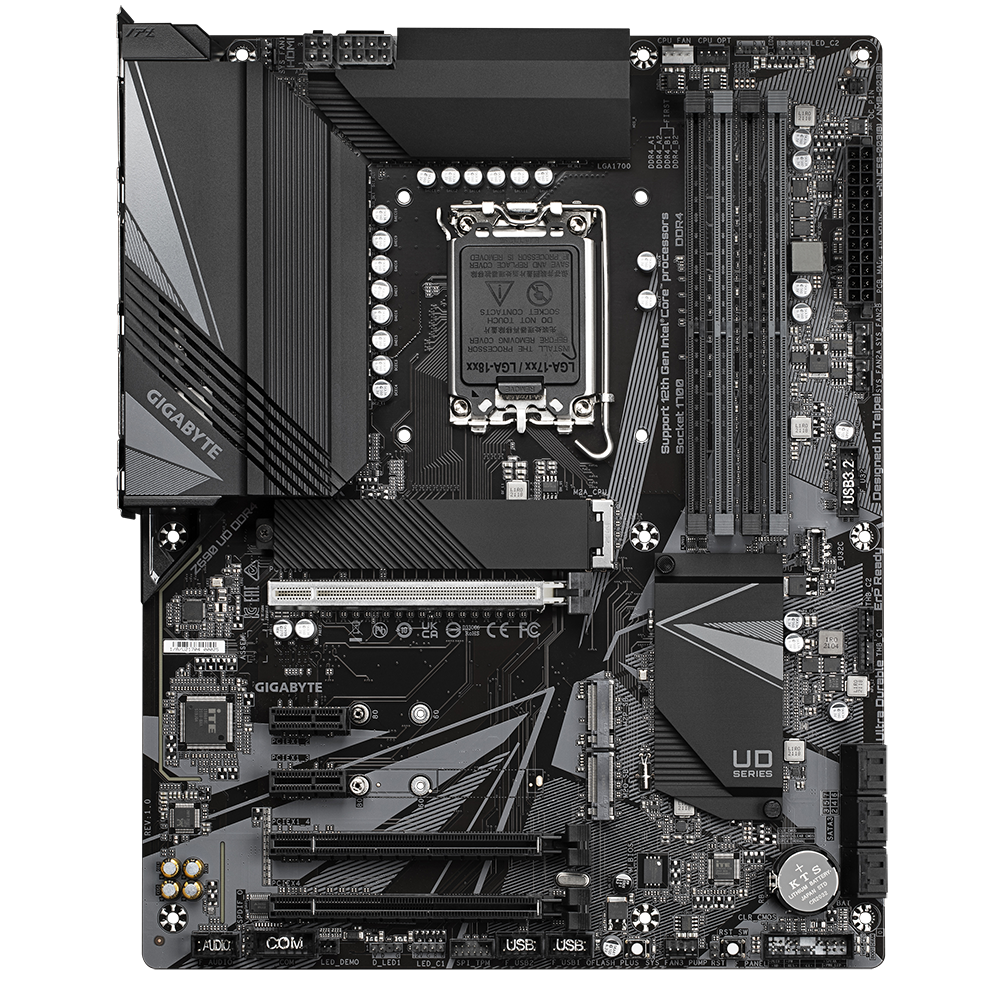

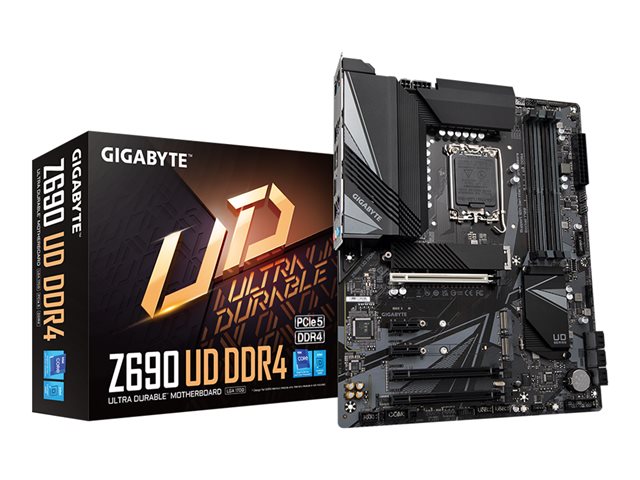

Дънна платка GIGABYTE Z690 UD DDR4 6xSATA 3xM.2 Z690-UD-DDR4
изчерпано
Сокет: LGA 1700
Чипсет: Intel Z690
Тип на паметта: DDR4
Физически размер: ATX
Слотове за памет: 4
Честота на паметта: 2400 MHz, 2133 MHz, 2800 MHz,...
Гаранция:
0.0
от 5.0
(0)
Купи и събери
3 точки
Плати по-лесно и сигурно с
Виж всички продукти на Gigabyte
Пазарувай по марка
Характеристики
| Физически размер | ATX |
| Чипсет | Intel Z690 |
| Сокет | LGA 1700 |
| Съвместими процесори | Core i5, Core i7, Core i9 (supports 12th Generation Intel Core) |
| BIOS |
WfM 2.0 support
UEFI BIOS SMBIOS 2.7 support DMI 2.7 support ACPI 5.0 support |
| Тип BIOS | AMI |
| Тип на паметта | DDR4 |
| Честота на паметта | 3200 MHz |
| ECC support | Non-ECC, ECC (operate in non-ECC mode) |
| Memory Registered / Buffered | Unbuffered |
| Слотове за памет | 4 |
| Максимална памет | 128 GB |
| Брой процесорни гнезда | 1 |
| Дисков интерфейс | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 |
| LAN порт | 2.5 Gigabit Ethernet |
| Звуков изход | HD Audio (8-channel) |
| Аудио стандарти | High Definition Audio |

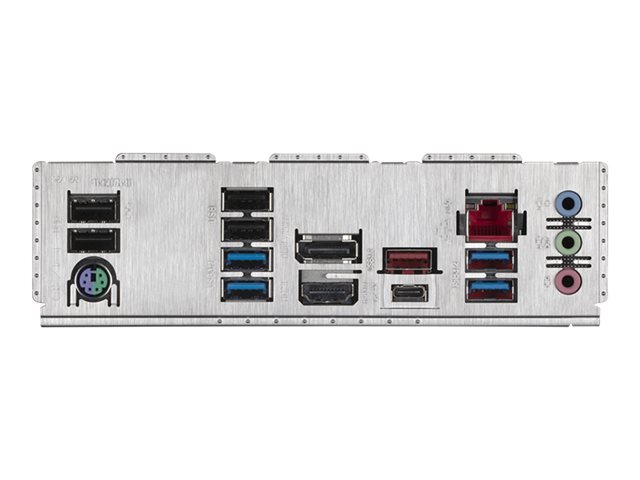

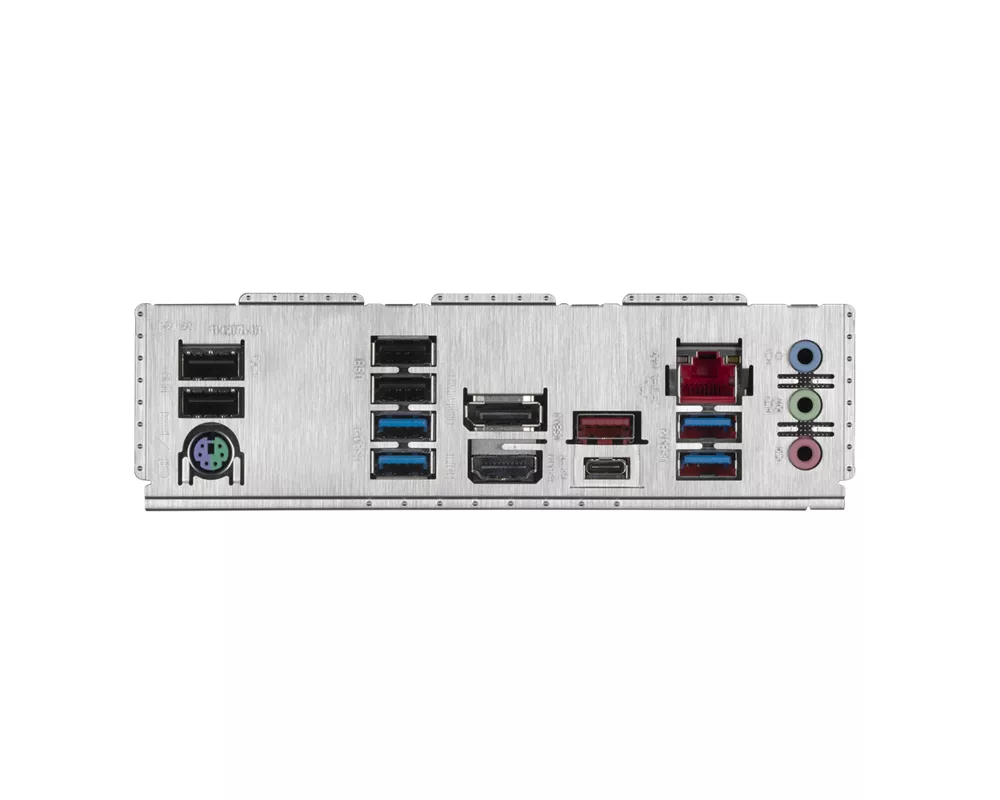

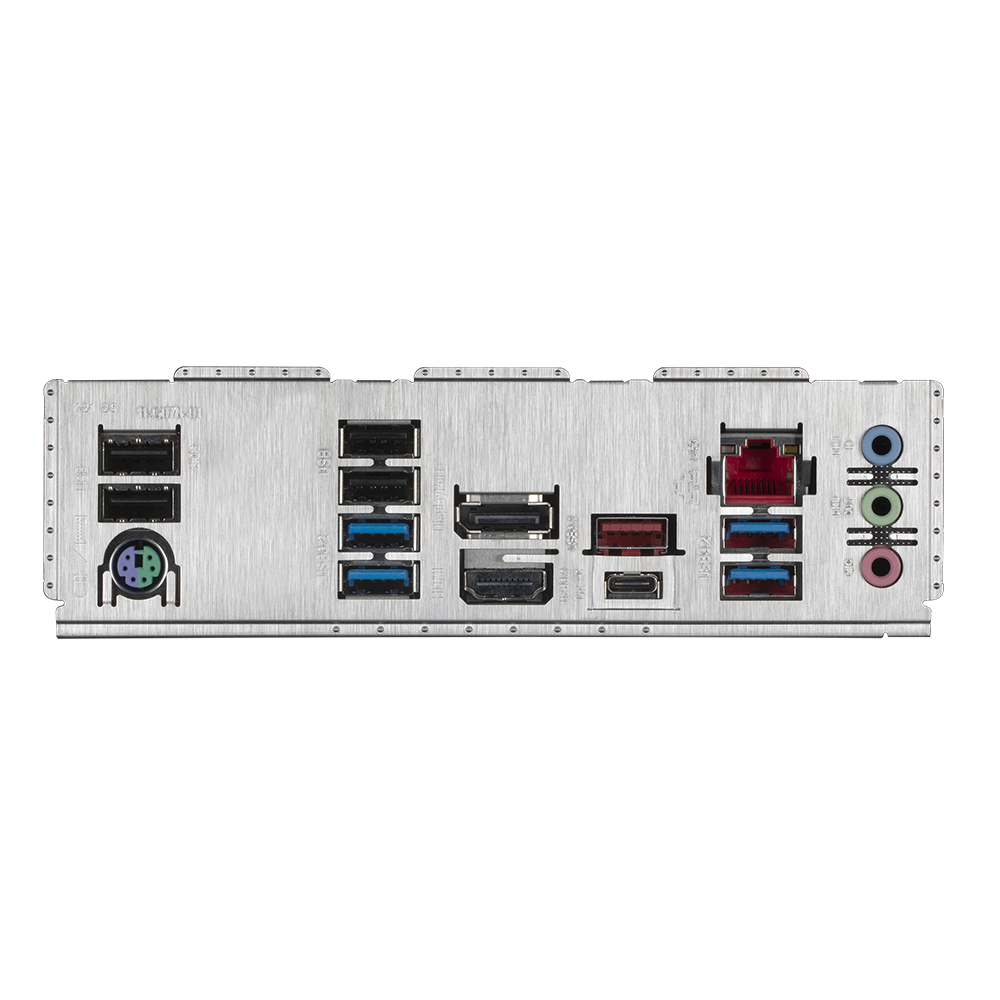

| Портове | 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 4 x USB 2.0 1 x PS/2 keyboard / mouse 1 x HDMI 1 x USB-C Gen2x2 |
| Разширителни слотове | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 2 x PCIe 3.0 x1 |
| Вътрешен интерфейс | 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 4 x USB 2.0 - header 2 x Thunderbolt - header 1 x SPDIF out - header 1 x audio - header 1 x serial - header |
| Функции | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Софтуер |
Norton Internet Security
@BIOS EasyTune Xpress Install GIGABYTE App Center GIGABYTE Fast Boot GIGABYTE Smart Backup Realtek Gaming LAN Bandwidth Control |
| Конектори за захранване | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Наблюдение на хардуера |
CPU core temperature
chassis temperature CPU fan tachometer chassis fan tachometer system voltage CPU overheating protection CPU core voltage water cooling flow rate fan fail warning |
| Стандарти | DisplayPort 1.2, HDCP 2.3 |
| Ширина | 30.5 cm |
| Дълбочина | 24.4 cm |
| Други характеристики |
Q-Flash
On/Off Charge Ultra Durable AMD CrossFireX technology support AMD Quad CrossFireX technology support Q-Flash Plus Game Boost Audio Noise Guard Intel Optane Memory Ready M.2 Thermal Guard Solid Pin Power Connectors RGB FUSION 2.0 GIGABYTE Smart Fan 6 16+1+2 Phase Power Design |
| Гаранция | 36 месеца |
| Код на продукта | Z690-UD-DDR4 |
Виж повече
Допълнителна информация
- Unparalleled performance
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards have upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming - Better VRM design built with the highest quality components
To ensure maximum Turbo Boost and overclocking performance of Intel's CPU, GIGABYTE Z690 series equip the better VRM design built with the highest quality components. - Hybrid cores optimization
With Intel Hybrid technology, GIGABYTE exclusively creates two " CPU Upgrade " in BIOS profiles to meet different users' scenarios by adjusting P-Core and E-Core activation and voltage policy. - Shielded memory routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. - Advanced thermal solution
Z690 UD AX DDR4 uses high performance covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. - Large surface
Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. - Real one-piece build
TMOS is a true single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design. - Multi-cut design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance. - GIGABYTE ultra-efficient M.2 thermal guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 thermal guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. - Copper PCB design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to its high thermal conductivity and lower impedance. - Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. - Advanced connectivity
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. - Audio noise guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. - EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. - System information viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer. - Ultra durable
GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable. - Solid pin power connectors
Z690 motherboards feature solid plated ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
