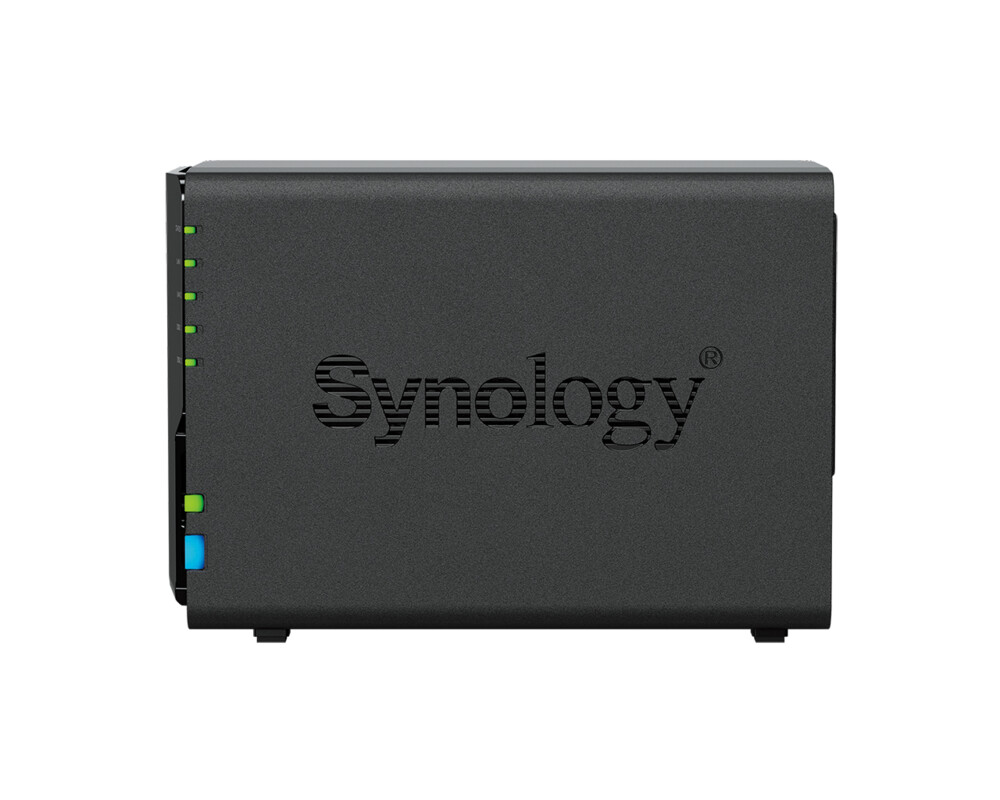

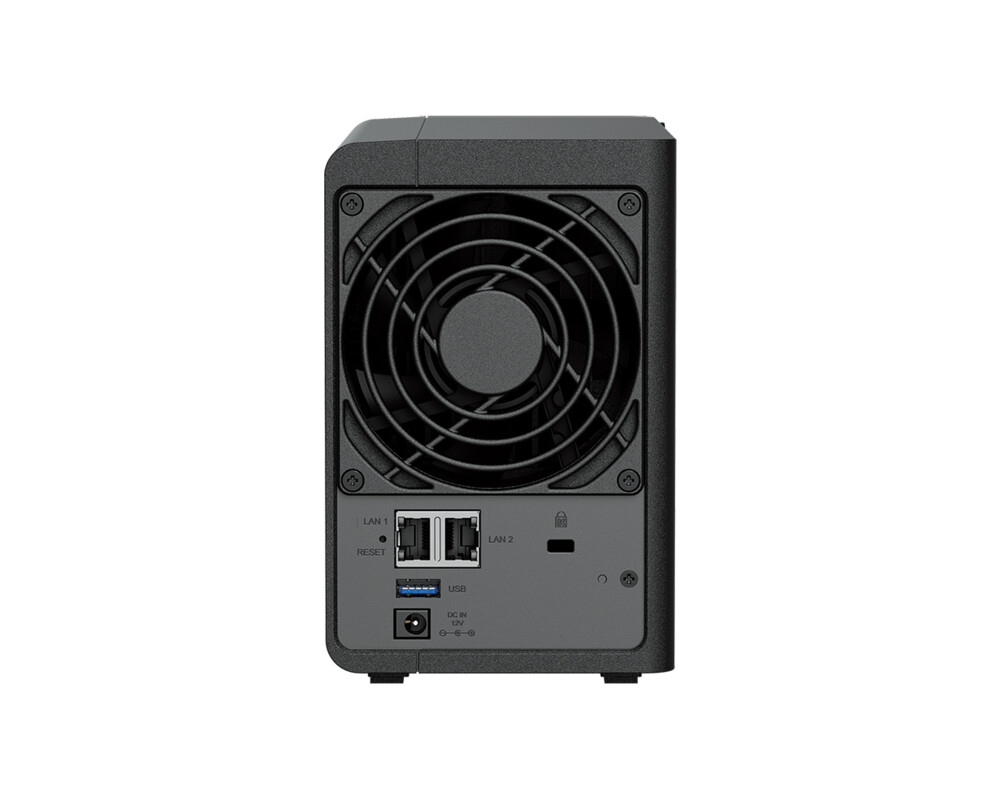

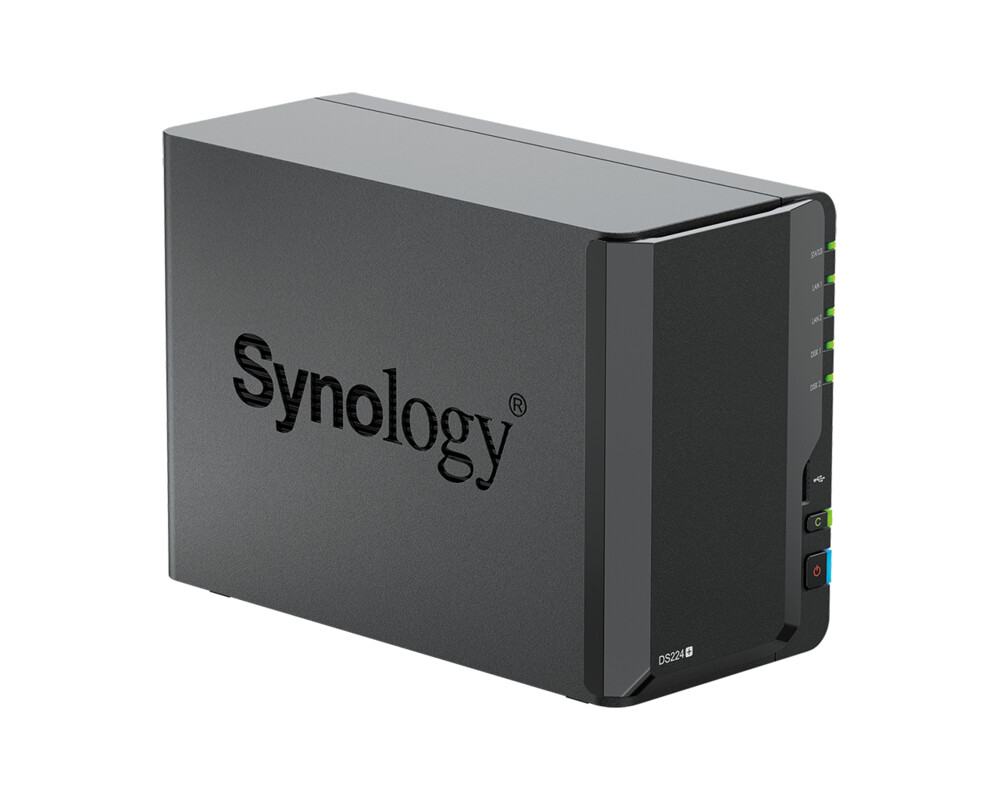

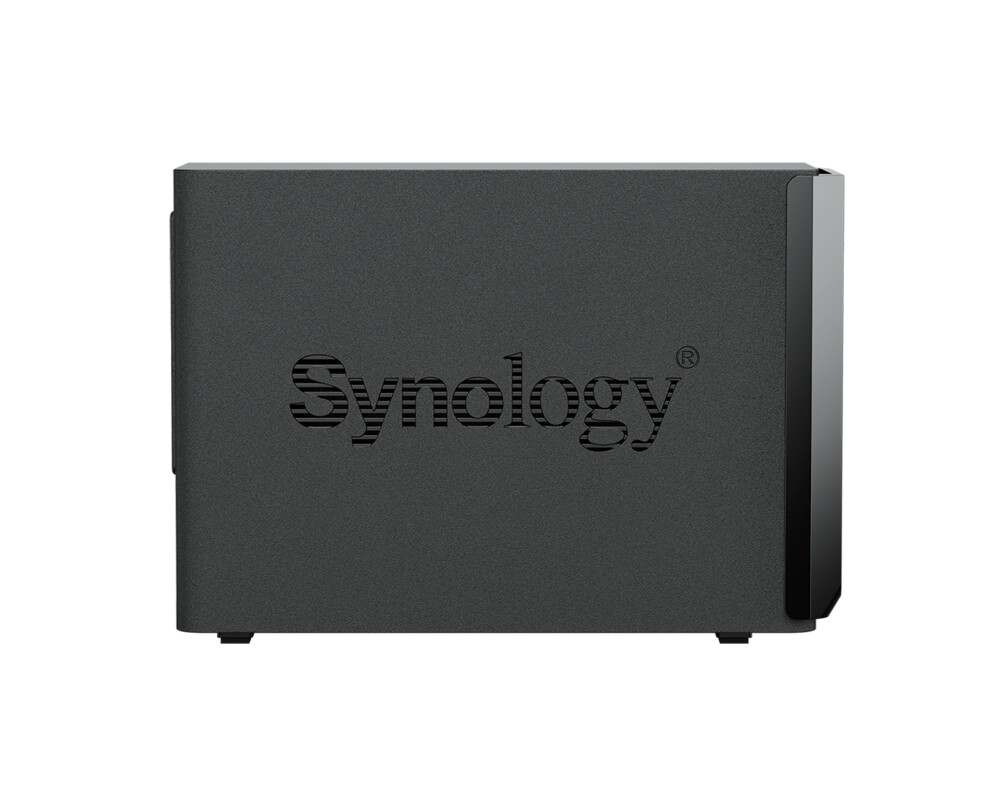

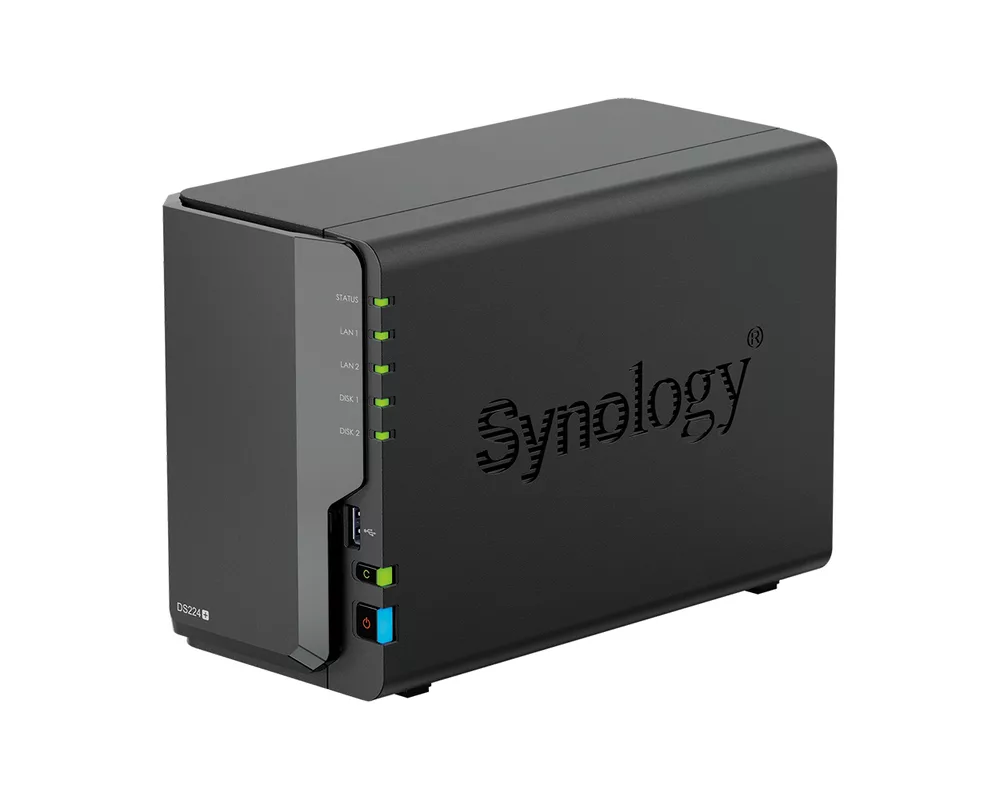

Storage(NAS) 2-bay Synology NAS server for Small and... DS224+

изчерпано

Изпрати запитване за наличност
2-bay Synology NAS server for Small and...
Гаранция:
0.0 от 5.0 (0)
Bonus points loyalty badge
Купи и събери 4 точки
Програма за лоялност
Безплатна доставка
14 дни право
на връщане
Оторизиран сервиз
Плати по-лесно и сигурно с
Изчерпано
37700 €
/
73735 лв.

Виж всички продукти на Synology

Пазарувай по марка
Характеристики
USB портове USB 3.0 x2
Други характеристики Android/Windows phone app.
Мрежови портове surveillance station
Dimensions HxWxD 165 mm x 108 mm x 232.2 mm
Тегло 1.30 kg
Гаранция 24 месеца
Процесор Quad core Intel Celeron J4125 2 GHz CPU
CPU turbo boost 4-core 2.0 (base) / 2.7 (burst) GHz
CPU slots 1
RAM-памет 2 GB DDR4 non-ECC
Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Мощност 60 W
Консумация 14.69 W (Access)<br />4.41 W (HDD Hibernation)
Работна влажност 5% to 95% RH
Ниво на шум 22 dB(A)
CPU architecture 64-bit
Hot swappable drive Да
System fan 92 mm x 92 mm x 1 pcs
Power recovery Да
Работна температура 0°C to 40°C (32°F to 104°F)
Maximum users 1,200
Maximum connections 40
Scheduled power On / Off Да
Код на продукта DS224+
Виж повече
Допълнителна информация
CPU
 CPU Model Intel Celeron J4125
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI) V
Memory
 System Memory 2 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 6 GB (2 GB + 4 GB)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
 Drive Bays 2
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive* V
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
 RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
USB Copy V
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
 Size (Height x Width x Depth) 165 mm x 108 mm x 232.2 mm
Weight 1.30 kg
Others
 System Fan 92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators V
Power Recovery V
Noise Level* 22 dB(A)
Scheduled Power On / Off V
Wake on LAN / WAN V
Power Supply Unit / Adapter 60 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 14.69 W (Access)
4.41 W (HDD Hibernation)
British Thermal Unit 50.09 BTU/hr (Access)
15.04 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • CCC
  • KC
Warranty
 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Storage Management
 Maximum Single Volume Size* 108 TB
Maximum Internal Volume Number 64
SSD TRIM
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
RAID Migration Basic to RAID 1
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
Volume Expansion by Adding a HDD Synology Hybrid RAID
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File Services
 File Protocol SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections 500
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 1,500
Windows Access Control List (ACL) Integration V
NFS Kerberos Authentication V
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
 Maximum Local User Accounts 2,048
Maximum Local Groups 256
Maximum Shared Folder 256
Maximum Shared Folder Sync Tasks 8
Hybrid Share
 Maximum Hybrid Share Folders 10
Hyper Backup
 Folder and Package Backup V
Entire System Backup V
Notes Full-system backup requires DSM 7.2 or later.
High Availability
 Synology High Availability V
Log Center
 Syslog Events per Second 800
General Specifications
 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
 V
Central Management System
 V
Synology Chat
 Maximum Number of Concurrent Users 100
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
 V
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 128
Maximum LUN 256
LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 100
Maximum Server Performance 1,224,000 emails per day, approx. 37GB
Notes
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
 DLNA Compliance V
Synology Photos
 Facial Recognition V
Object Recognition V
Notes Object recognition requires an upgrade of memory capacity to a minimum of 4 GB.
Snapshot Replication
 Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
 Maximum IP cam (Licenses required) 25 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 750 FPS @ 720p (1280x720)
750 FPS @ 1080p (1920x1080)
350 FPS @ 3M (2048x1536)
275 FPS @ 5M (2591x1944)
170 FPS @ 4K (3840x2160)
Total FPS (H.265) 750 FPS @ 720p (1280x720)
750 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
475 FPS @ 5M (2591x1944)
200 FPS @ 4K (3840x2160)
Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive
 Recommended Number of Concurrent Sync Clients 350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Users 1,200
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
 V
Virtual Machine Manager
 Recommended Virtual Machine Instances 2 (Learn more)
Recommended Virtual DSM Number (Licenses required) 2 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 40
Виж повече
Информация за производителя
Контакт +49 211 9666 9666
Адрес Synology GmbH Grafenberger Allee 295 40237 Düsseldorf Deutschland
Уебсайт https://www.synology.com/en-global
Виж повече

Ние от PIC.bg постоянно полагаме усилия информацията на тази страница да е точна. В редки случаи съдържанието може да е некоректно. Всички снимки са с информативна цел и е възможно да съдържат аксесоари, които не са включени в стандартния пакет. Някои от спецификациите или цените могат да бъдат променяни от производителя без предизвестие или да съдържат експлоатационни грешки. Всички промоции, посочени в сайта, се предлагат до изчерпаване на количествата.
