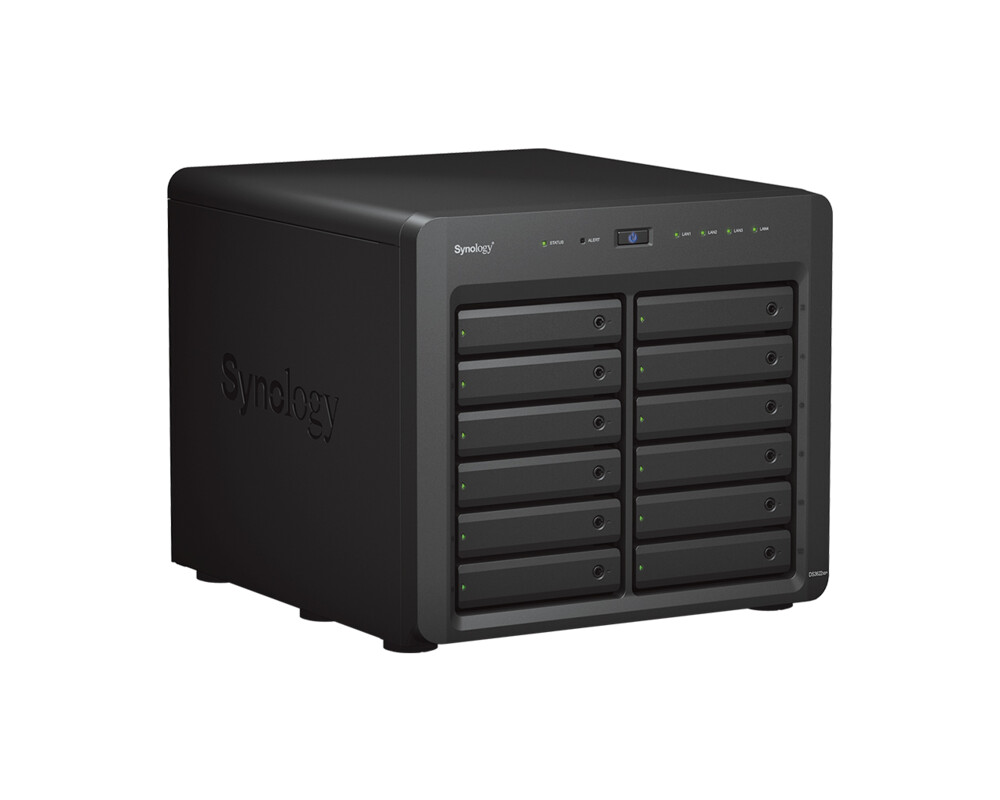

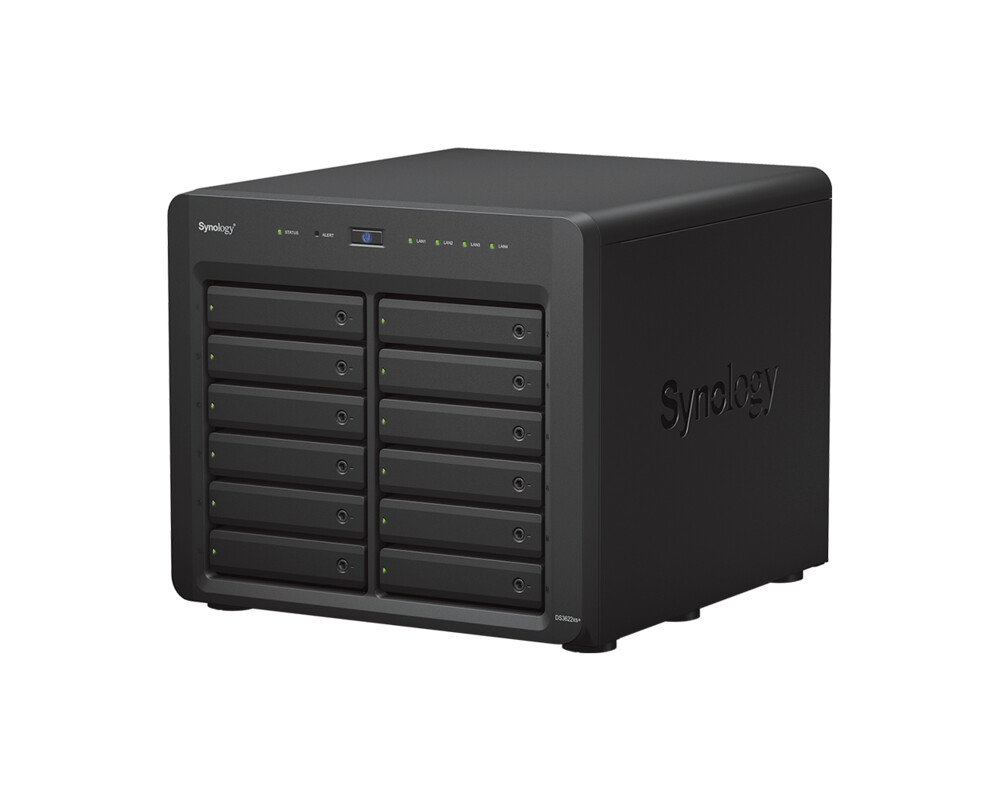

Storage(NAS) 36-bay Synology NAS server for Large Scale Business DS3622XS+

изчерпано

Изпрати запитване за наличност
36-bay Synology NAS server for Large Scale Business
Гаранция:
0.0 от 5.0 (0)
Bonus points loyalty badge
Купи и събери 67 точки
Програма за лоялност
Безплатна доставка
14 дни право
на връщане
Оторизиран сервиз
Плати по-лесно и сигурно с
Изчерпано
6 689 лв.
/
3 42003 €

Виж всички продукти на Synology

Пазарувай по марка
Характеристики
USB портове 2x USB 3.2
Мрежови портове 2x 10Gbit LAN
Dimensions HxWxD 270 mm x 300 mm x 340 mm
Тегло 9.8 kg
Гаранция 60 месеца
Процесор Intel Xeon D-1531 6-core 2.2GHz CPU
CPU turbo boost 6-core 2.2 (base) / 2.7 (turbo) GHz
CPU slots 1
RAM-памет 16 GB DDR4 ECC SODIMM
Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Мощност 550 W
Консумация 94.42 W (Access)<br />54.33 W (HDD Hibernation)
Работна влажност 5% to 95% RH
Ниво на шум 25 dB(A)
CPU architecture 64-bit
Hot swappable drive Да
System fan 120 mm x 120 mm x 2 pcs
Power recovery Да
Работна температура 0°C to 40°C (32°F to 104°F)
Maximum users 2,900
Maximum connections 60
Scheduled power On / Off Да
Код на продукта DS3622XS+
Виж повече
Допълнителна информация
CPU
 CPU Model Intel Xeon D-1531
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 6-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI) V
Memory
 System Memory 16 GB DDR4 ECC SODIMM
Memory Module Pre-installed 16 GB (8 GB x 2)
Total Memory Slots 4
Maximum Memory Capacity 48 GB (8 GB x 2 + 16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
 Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (DX1222 x 2)
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive* V
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

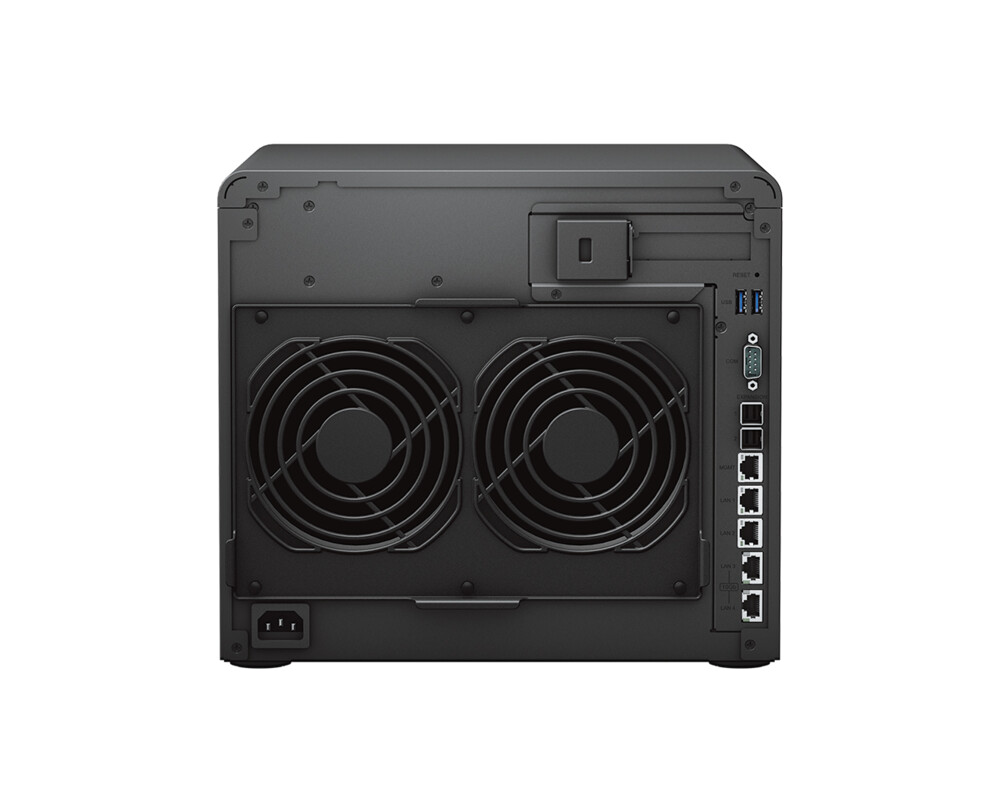

External Ports
 RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
Management LAN Port 1
USB 3.2 Gen 1 Port* 2
Expansion Port 2
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x8 link)
File System
 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance
 Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.8 kg
Others
 System Fan 120 mm x 120 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan V
Power Recovery V
Noise Level* 25 dB(A)
Scheduled Power On / Off V
Wake on LAN / WAN V
Power Supply Unit / Adapter 550 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 94.42 W (Access)
54.33 W (HDD Hibernation)
British Thermal Unit 322.39 BTU/hr (Access)
185.51 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
  • UL
Warranty
 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Storage Management
 Maximum Single Volume Size*
  • 200 TB (32 GB memory required)
  • 108 TB
Maximum Internal Volume Number 256
SSD Read / Write Cache (White Paper) V
RAID Group V
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Services
 File Protocol SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections 4,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 10,000
Windows Access Control List (ACL) Integration V
NFS Kerberos Authentication V
Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
 Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Hybrid Share
 Maximum Hybrid Share Folders 15
High Availability
 Synology High Availability V
Log Center
 Syslog Events per Second 3,000
Virtualization
 VMware vSphere with VAAI V
Windows Server 2016 V
Windows Server 2019 V
Citrix Ready V
OpenStack V
General Specifications
 Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Antivirus by McAfee (Trial)
 V
Central Management System
 V
Synology Chat
 Maximum Users 4,000
Maximum Number of Concurrent Users 500
Notes When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
 V
Download Station
 Maximum Concurrent Download Tasks 80
SAN Manager
 Maximum iSCSI Target Number 256
Maximum LUN 512
LUN Clone/Snapshot, Windows ODX V
Synology MailPlus / MailPlus Server
 Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 800
Maximum Server Performance 4,235,000 emails per day, approx. 129 GB
Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
 DLNA Compliance V
Synology Photos
 Facial Recognition V
Snapshot Replication
 Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
 Maximum IP cam (Licenses required) 90 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 2700 FPS @ 720p (1280x720)
2250 FPS @ 1080p (1920x1080)
1500 FPS @ 3M (2048x1536)
900 FPS @ 5M (2591x1944)
550 FPS @ 4K (3840x2160)
Total FPS (H.265) 2700 FPS @ 720p (1280x720)
2700 FPS @ 1080p (1920x1080)
2250 FPS @ 3M (2048x1536)
1500 FPS @ 5M (2591x1944)
1080 FPS @ 4K (3840x2160)
Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive
 Recommended Number of Concurrent Sync Clients 1,800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
 Maximum Users 2,900
Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
 V
Virtual Machine Manager
 Recommended Virtual Machine Instances 12 (Learn more)
Recommended Virtual DSM Number (Licenses required) 12 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.
VPN Server
 Maximum Connections 60
